    Duplex LC To LC Fiber Optic Patch Cord Field Installable Corning Optitap H Connector

    Ask Lasest Price
    Brand Name : UNIFIBER or OEM
    Model Number : Optitap LC
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000pcs/day
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

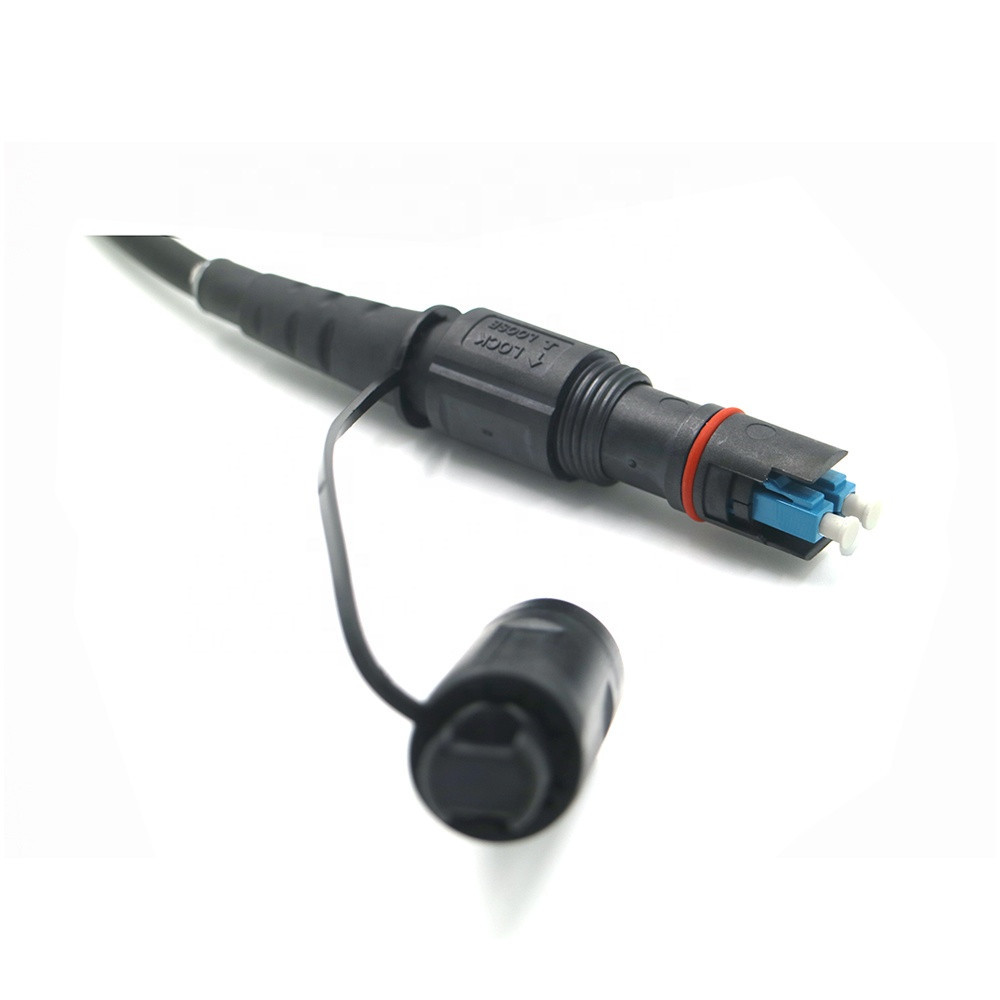

    Duplex LC To LC Fiber Optic Patch Cord Field Installable Corning Optitap H Connector

    Field-installable corning Optitap H connector duplex LC to LC patch cord,China outdoor waterproof fiber cable assemblies

    H connector(Corning OptiTap™) Inside innovative design can protect ferrule end face far away scratch when mating with receptacle; Special fool-proofing design make sure H connector (Corning OptiTap™) has blind-mating function. The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and thread type mechanical latch. H connector (Corning OptiTap™) provides quick installation solutions and has good performance on mating with receptacle. Cable can be amored or non-amored which come as three options of SC/LC/MPO , it provide the most cost-effective method of deploying optical fiber in outside plant distribution networks at speeds significantly fast than traditional field installations. H connector utilizes optical fiber cables upon which network access points are pre-installed at customer-specified locations along the length of the cable.


    FEATURES

    Easy connection to hardened adapters on terminals or closures
    Reduce welding, connect directly to achieve interconnection

    Spiral clamping mechanism ensures long-term reliable connection
    Guide mechanism, can be blinded with one hand, simple and quick, connect and install

    IP67 water and dust protection

    compact size, easy to operate, durable

    Seal design: It is waterproof, dust-proof, anti-corrosion and so on.


    APPLICATION

    Outdoor Areas

    Harsh Environment

    FTTH,FTTA,FTTX


    Specification

    Fiber ModeSinglemode or Multimode
    CableFlat Drop Cable or Round Cable
    ConnectorsOptitap LC/SC/MPO
    Polish TypeAPC or UPC
    Typical Insertion Loss≤ 0.15 dB
    Maximum Insertion Loss≤ 0.30 dB
    Maximum Return Loss≥ 50 dB

    Duplex LC To LC Fiber Optic Patch Cord Field Installable Corning Optitap H ConnectorDuplex LC To LC Fiber Optic Patch Cord Field Installable Corning Optitap H Connector
