FTTX Fiber Cable Assembly Waterproof Duplex H Connector SC/APC To SC/APC PE Jacket

    Buy cheap FTTX Fiber Cable Assembly Waterproof Duplex H Connector SC/APC To SC/APC PE Jacket from wholesalers

    Buy cheap FTTX Fiber Cable Assembly Waterproof Duplex H Connector SC/APC To SC/APC PE Jacket from wholesalers
    • Buy cheap FTTX Fiber Cable Assembly Waterproof Duplex H Connector SC/APC To SC/APC PE Jacket from wholesalers
    • Buy cheap FTTX Fiber Cable Assembly Waterproof Duplex H Connector SC/APC To SC/APC PE Jacket from wholesalers
    • Buy cheap FTTX Fiber Cable Assembly Waterproof Duplex H Connector SC/APC To SC/APC PE Jacket from wholesalers
    • Buy cheap FTTX Fiber Cable Assembly Waterproof Duplex H Connector SC/APC To SC/APC PE Jacket from wholesalers

    FTTX Fiber Cable Assembly Waterproof Duplex H Connector SC/APC To SC/APC PE Jacket

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Model Number : Optitap MINI SC
    Certification : ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 10000pcs/day
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

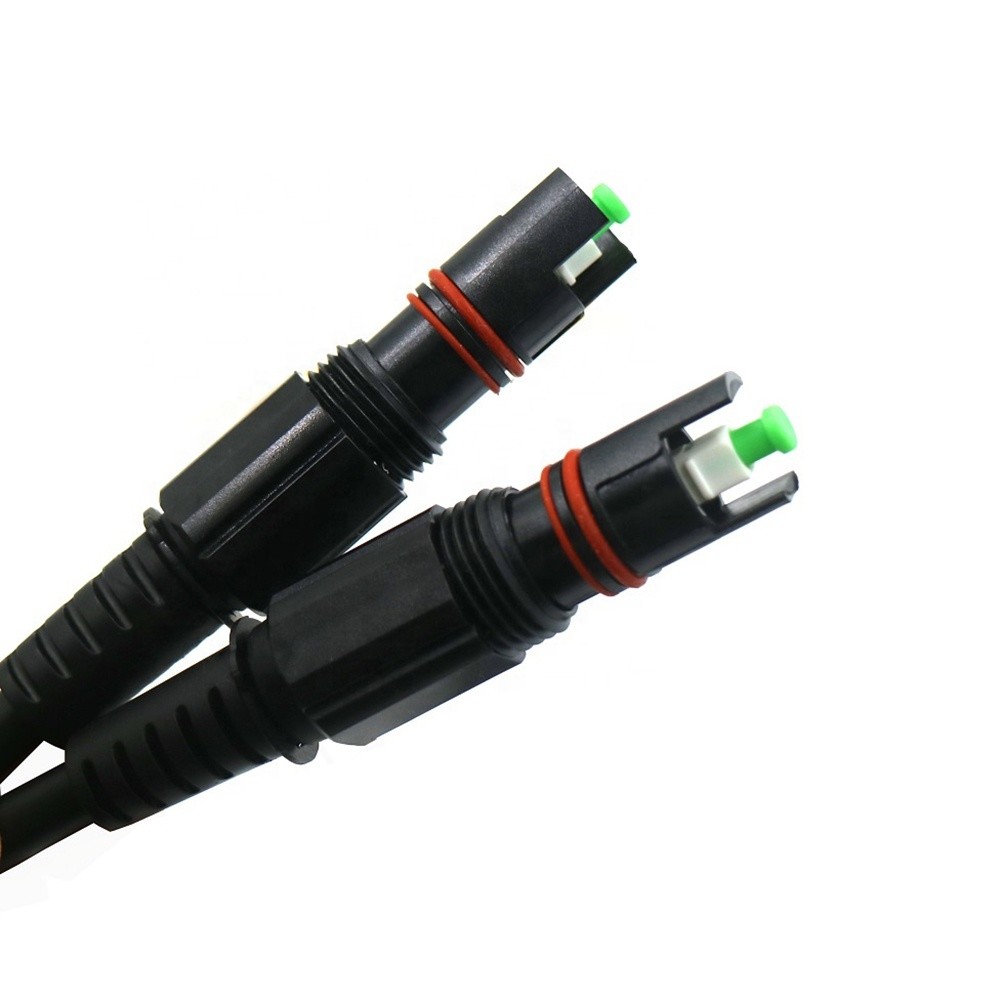

    FTTX Fiber Cable Assembly Waterproof Duplex H Connector SC/APC To SC/APC PE Jacket

    FTTx waterproof duplex H connector Corning OptiTap compatiable mini SC/APC to SC/APC fiber jumper cables PE jacket

    Corning Optitap/H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
    The end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal. It provide the most cost-effective method of deploying optical fiber in outside plant distribution networks at speeds significantly fast than traditional field installations.Corning Optitap/H connector utilizes optical fiber cables upon which network access points are pre-installed at customer-specified locations along the length of the cable.


    Feature
    No installation tools requires;

    IP-68 water and dust protection;

    Low profile in-line receptacle available;

    Factory terminated for high performance;
    Accepts 2.0mm to 7.0mm cable diameters;
    Application
    Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies;
    Suitable for FTTA and outdoor temperature extremes;
    Ensures functionality in harsh weather environments ;
    Can be installs without special tooling;
    Provides bend protection for installation and long term use.

    Type
    SM-UPC
    SM-APC
    MM-UPC
    Typical
    MAX
    Typical
    MAX
    Typical
    MAX
    Insertion loss
    ≤0.1
    ≤0.3dB
    ≤0.15
    ≤0.3dB
    ≤0.05
    ≤0.3dB
    Return loss
    ≥50dB
    ≥30dB
    ≥30dB
    Durability
    500 mating cycles
    Working temperature
    -40 to + 85℃

    FTTX Fiber Cable Assembly Waterproof Duplex H Connector SC/APC To SC/APC PE JacketFTTX Fiber Cable Assembly Waterproof Duplex H Connector SC/APC To SC/APC PE Jacket
