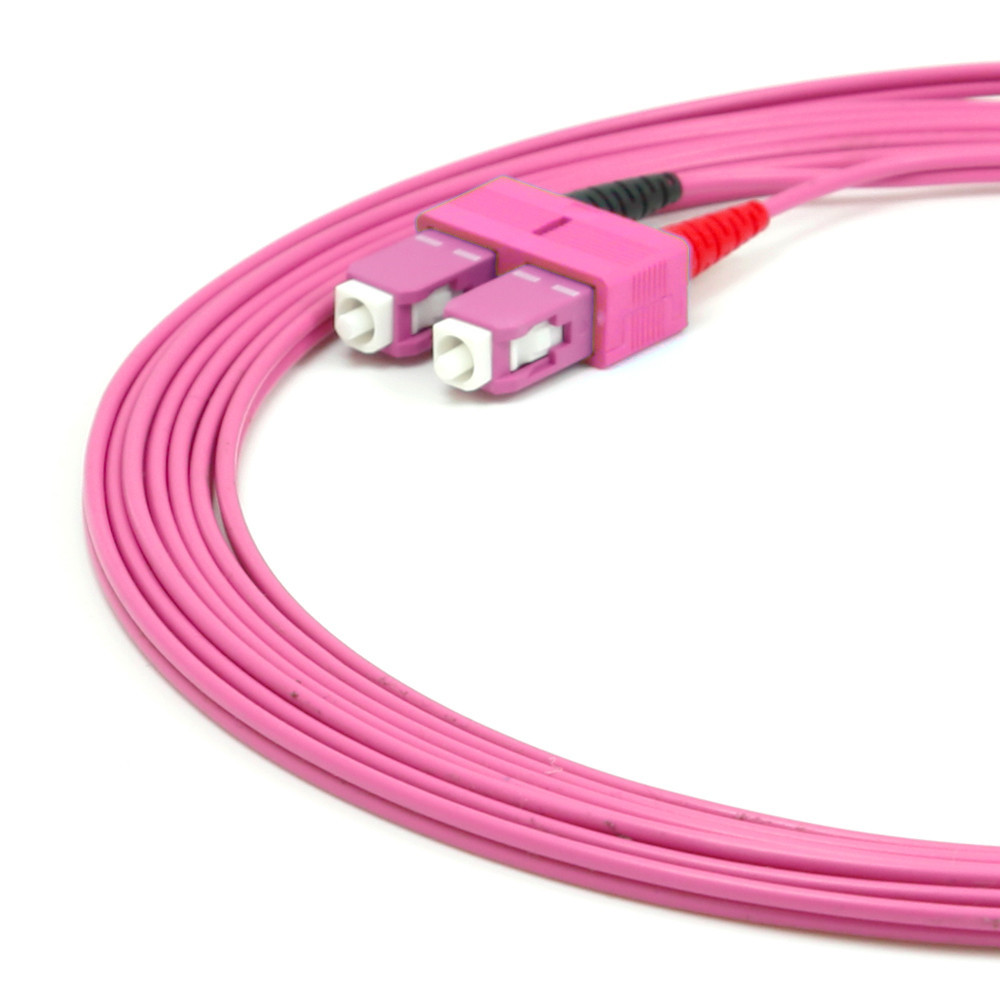

OM4 multimode SC-SC duplex fiber patch cable 2.0mm PVC/OFNR 10m 15m,10/40GB data center cabling solutions
This OM4 Duplex Multimode Fiber Optic Cable is ideal for connecting 10GBase-SR, 10GBase-LRM, SFP+ and QSFP+ transceivers for 10 gigabit network connections. OM4 patch cables take all the benefits of OM3 fiber and increase the transmission bandwidth up to 40gbs, and in some cases 100gbs. OM4, like, OM3, is laser-optimized to give optimum performance and reliability. Unlike other old fiber types, OM4 has a higher attenuation that helps create lower losses over greater distances.
FEATURES
High-quality connectors and Zirconia Ceramic Ferrule
Low insertion Loss and High Return Loss
Enhanced optical performance to meet telecom requirement
IEC, EIA/TIA and Telcordia compliant
RoHS, REACH and SvHC compliant
APPLICATIONS
High-Density Data Centers
Interconnects
Local Area Networks
Cross-connects
Parameters
| Connector | SC to SC | Jacket OD | 2.0/3.0mm |
| Fiber Mode | 9/125μm or 50/125um | Jacket Color | Yellow/Aqua or Violet |
| Polish | PC to PC | Wavelength | 1310/1550nm |
| Cable Type | Duplex | Jacket Material | LSZH, OFNP |
| Insertion loss | ≤0.3dB(max) | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB(min) | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
| Polarity | A(Tx) to B(Rx) | Fiber Grade | 9/125 50/125 OM3 OM4 |
