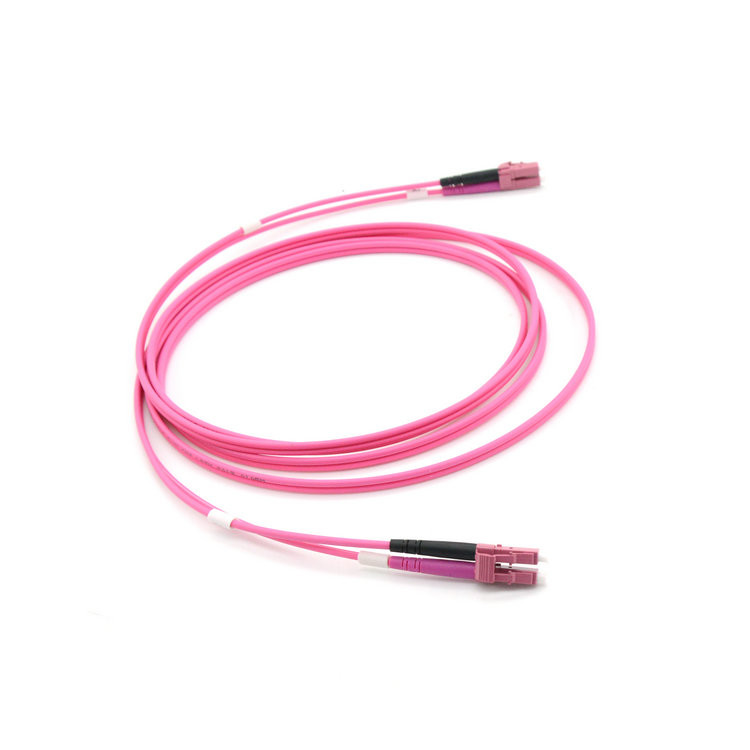

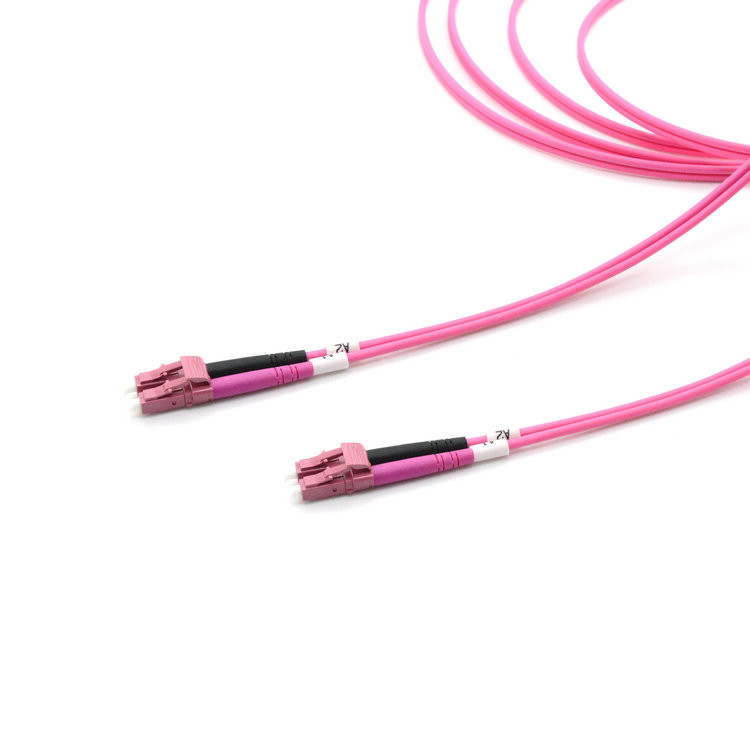

Fiber optic patch cords duplex LC to LC OM4 multimode 50/125um violet LSZH/OFNR 1/3/5m 40Gigabit transmission bandwidth
This OM4 Duplex Multimode Fiber Optic Cable is ideal for connecting 10GBase-SR, 10GBase-LRM, SFP+ and QSFP+ transceivers for 10 gigabit network connections. OM4 patch cables take all the benefits of OM3 fiber and increase the transmission bandwidth up to 40gbs, and in some cases 100gbs. OM4, like, OM3, is laser-optimized to give optimum performance and reliability. Unlike other old fiber types, OM4 has a higher attenuation that helps create lower losses over greater distances.
FEATURES
High-quality connectors and Zirconia Ceramic Ferrule
Low insertion Loss and High Return Loss
Enhanced optical performance to meet telecom requirement
IEC, EIA/TIA and Telcordia compliant
RoHS, REACH and SvHC compliant
APPLICATIONS
High-Density Data Centers
Interconnects
Local Area Networks
Cross-connects
Parameters
| Connector | LC to LC | Jacket OD | 2.0/3.0mm |
| Fiber Mode | 9/125μm or 50/125um | Jacket Color | Yellow/Aqua or Violet |
| Polish | PC to PC | Wavelength | 1310/1550nm |
| Cable Type | Duplex | Jacket Material | LSZH, OFNP |
| Insertion loss | ≤0.3dB(max) | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB(min) | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
| Polarity | A(Tx) to B(Rx) | Fiber Grade | 9/125 50/125 OM3 OM4 |
Shenzhen Unifiber Technology Co.,Ltd
Unifiber, a Hi-Tech company specialized in developing and
manufacturing optical fiber products. Based on strong hardware
development, we are offering the most cost-effective cabling
solutions on optical networking, data center, FTTx and OEM
solution.
Our featured products includes FTTA Waterproof Connectors,
indoor/outdoor armored cable assembly, Pre-terminated Multifiber
Cables, FTTH flat drop patch cable, LC Uniboot, 6~12 fiber pigtails
and MTP/MPO series. We can also provide adapter, attenuator, fused
coupler, PLC Splitter, WDM and various of patch panel, terminal
box, ODF and tool series products..
Providing the highest quality products and services is always the
most important principle to Unifiber, All our products are
subjected to strict test according to BELLCORE standard and fully
RoHS compliant. Through the efforts of our team, Unifiber has
obtained a widespread acknowledgement, Our products continue to
enjoy growing acceptance both in China and abroad.
