    ODVA SC Bulkhead Fiber Optic Adaptor Waterproof IP67 For Fiberhub Terminal Box Enclosure

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Model Number : ODVASC
    Certification : ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 10000PCS/DAY
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

    ODVA SC Bulkhead Fiber Optic Adaptor Waterproof IP67 For Fiberhub Terminal Box Enclosure

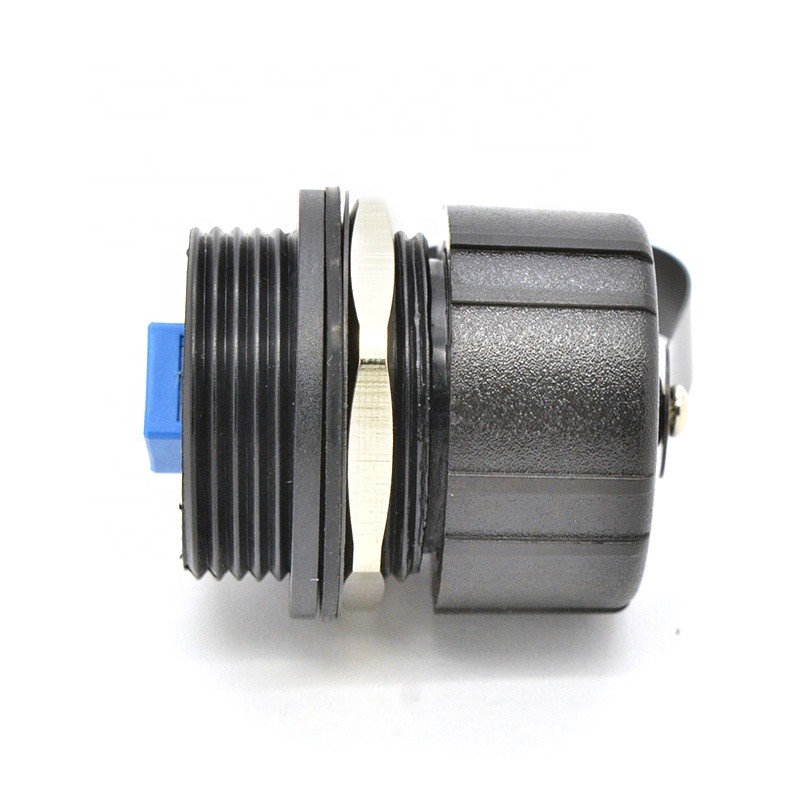

    ODVA SC Bulkhead Fiber Optic Adaptor With dust cap, waterproof IP 67 for fiberhub terminal box enclosure

    The ODVA SC waterproof adapter is used for harsh industrial or outdoor environments, mounts case side to panel or enclosure, female simplex singlemode SC pass-thru receptacle to female simplex SC connectors, quick-release quarter-turn bayonet locking to cable shield, gasket seals provide IP67 rated water tight and dust free protection.

    Features:

    Used to connect either PC or UPC polished SC Fiber cables.
    Plastic body provides a light weight yet durable solution.
    Stainless steel mounting clips allow for easy snap in installation.
    Ceramic alignment sleeve supports Singlemode and Multimode applications.

    Application

    Fiber-to-the-Antenna (FTTA)

    Automation and Industrial Cabling
    Surveillance Systems

    Broadcast

    Military Communications
    BBU, RRU, RRH, LTE



    Operating Performance
    Outdoor SC ODVA Waterproof Adapter
    PCAPC
    Insertion Loss (dB)< 0.3< 0.3
    Durability (500 Mating) (dB)< 0.1< 0.1
    Operation Temperature (°C)-40 to 80-40 to 80
    Retention Force (N)200-600200-600
    Tensile Strength (kgf)1010
    Housing MaterialPCPC
    Mounting StyleScrew/ClipScrew/Clip
    Sleeve Alignment MaterialCeramic (Grade A)Ceramic (Grade A)
    Housing ColorBlackBlack

    ODVA SC Bulkhead Fiber Optic Adaptor Waterproof IP67 For Fiberhub Terminal Box EnclosureODVA SC Bulkhead Fiber Optic Adaptor Waterproof IP67 For Fiberhub Terminal Box EnclosureODVA SC Bulkhead Fiber Optic Adaptor Waterproof IP67 For Fiberhub Terminal Box EnclosureODVA SC Bulkhead Fiber Optic Adaptor Waterproof IP67 For Fiberhub Terminal Box EnclosureODVA SC Bulkhead Fiber Optic Adaptor Waterproof IP67 For Fiberhub Terminal Box Enclosure
