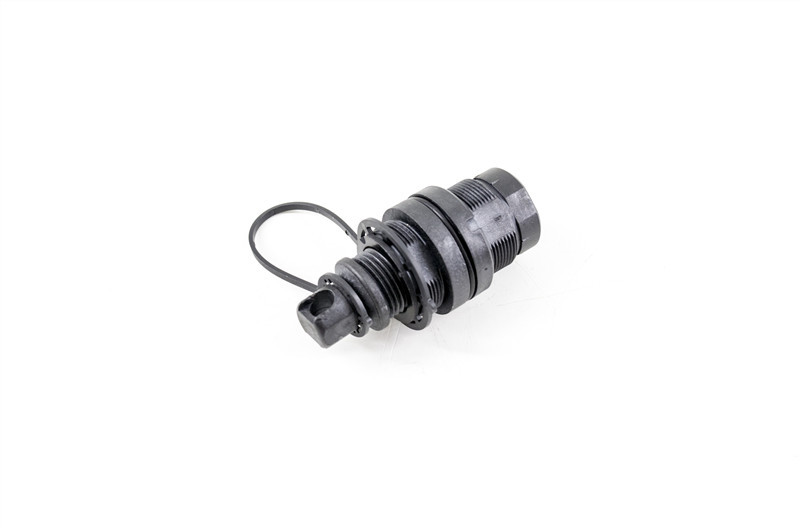

    Low Profile Simplex Fiber Optic Connector Adapter IP67 Compatible To Corning OptiTap

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Model Number : MINISC
    Certification : ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 10000PCS/DAY
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

    Low Profile Simplex Fiber Optic Connector Adapter IP67 Compatible To Corning OptiTap

    Outdoor waterproof Mini SC connector adapter IP67 compatible to Corning optiTap connectorsMini SC assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.like as H connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal.The mini SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications

    Features:

    IP-67 water and dust protection
    Factory terminated for high performance
    -40ºC~85ºC operating temperature
    445N (100 lbs) cable retention
    Accepts 2.0mm to 7.0mm cable diameters
    Low profile in-line receptacle available
    No installation tools requires

    Application
    Provides superior weather resistance for FTTA and other outdoor applications.
    Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies
    Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments
    Can be installs without special tooling
    Threaded style coupling
    Provides bend protection for installation and long term use

    odelSM MM
    SC Connector Fiber Count1 core
    SC SX Adapter Mini SC compatiblePC, APC
    Insertion Loss Standard typeless than 0.25dB
    Insertion loss Elite typeLess than 0.2dB
    Return LossPC >50dB, APC>60dB
    Durability (500 matings)less than 0.2dB
    Pulling Force (N)450N

    Low Profile Simplex Fiber Optic Connector Adapter IP67 Compatible To Corning OptiTapLow Profile Simplex Fiber Optic Connector Adapter IP67 Compatible To Corning OptiTapLow Profile Simplex Fiber Optic Connector Adapter IP67 Compatible To Corning OptiTapLow Profile Simplex Fiber Optic Connector Adapter IP67 Compatible To Corning OptiTap
