    Corning Optitap SC Fiber Cable Assembly Mini Waterproof Adapter Socket Plug

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Model Number : MINISC
    Certification : ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 10000PCS/DAY
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

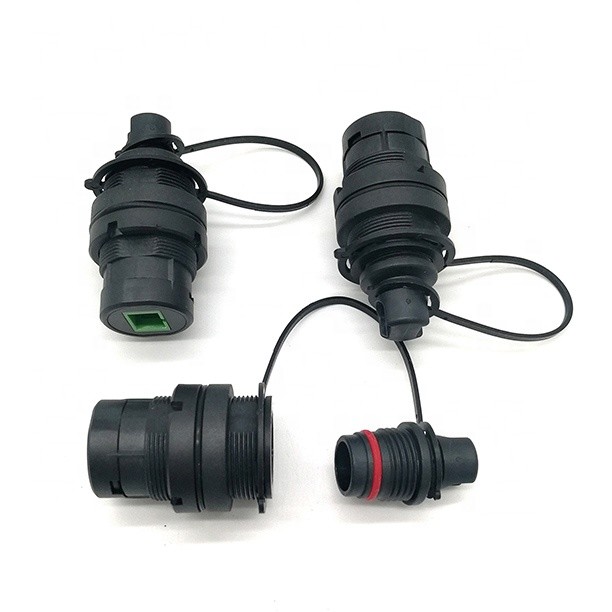

    Corning Optitap SC Fiber Cable Assembly Mini Waterproof Adapter Socket Plug

    Patented OptiTap mini SC waterproof adapter Socket & Plug, fully comply with Corning connectors

    Cost effective, easy, environmental seal and mechanical protection for 1 fiber simple SC style connections. Special fool-proofing design make sure connector has blind-mating function; provides quick installation solutions and has good performance on mating with H receptacle, it can compatible with all the similar products in market, compatiale with Corning Opitap-SC. Cable can be flat drop or round cable, amored or non-amored. The industrial panel-mount, plastic adapters serve as a sealed feed-through for the fiber connection.

    Features:

    Accepts 2.0mm to 7.0mm cable diameters
    Low profile in-line receptacle available
    No installation tools requires

    IP-67 water and dust protection
    Factory terminated for high performance
    -40ºC~85ºC operating temperature
    445N (100 lbs) cable retention

    Application
    Telecom networks tower;
    CATV, LAN&WAN.
    Outdoor FTTP, FTTA
    Broadband;

    odelSM MM
    SC Connector Fiber Count1 core
    SC SX Adapter Mini SC compatiblePC, APC
    Insertion Loss Standard typeless than 0.25dB
    Insertion loss Elite typeLess than 0.2dB
    Return LossPC >50dB, APC>60dB
    Durability (500 matings)less than 0.2dB
    Pulling Force (N)450N
    Corning Optitap SC Fiber Cable Assembly Mini Waterproof Adapter Socket PlugCorning Optitap SC Fiber Cable Assembly Mini Waterproof Adapter Socket PlugCorning Optitap SC Fiber Cable Assembly Mini Waterproof Adapter Socket Plug
