Fused Biconical Taper Fiber Optic Splitter 1×2 2×2 Wide Band Coupler 1310nm 1550nm

Ask Lasest Price
Brand Name :	UNIFIBER
Model Number :	WBC
Certification :	ROHS
Price :	Negotiable
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	10000pcs/day
Delivery Time :	5-8days

Add to Cart

Product Details
Company Profile

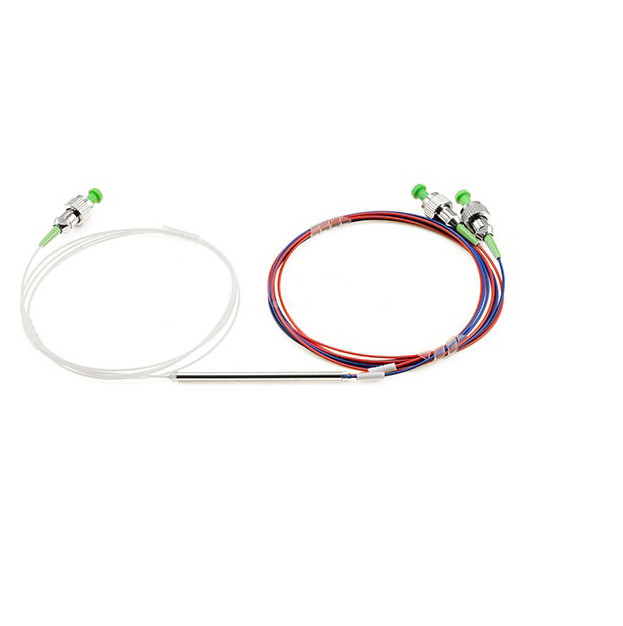

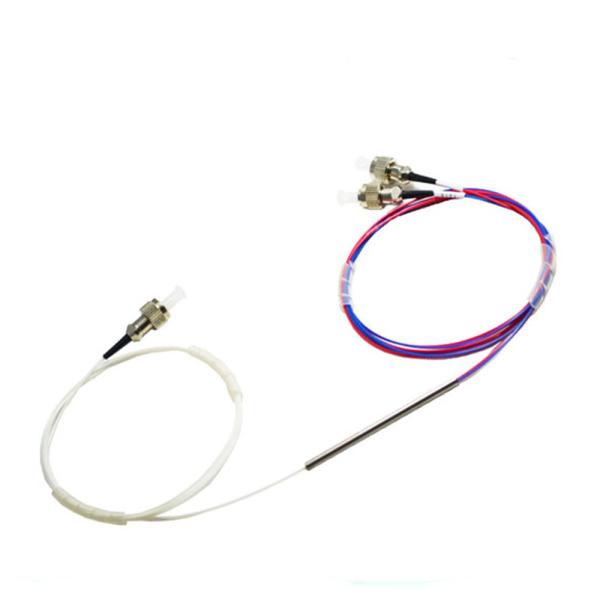

Fused Biconical Taper Fiber Optic Splitter 1×2 2×2 Wide Band Coupler 1310nm 1550nm

Fused biconical taper optical fiber coupler 1×2 or 2×2 Wide Band Coupler (WBC) 1310nm,1550nm or C+L band low PDL
UNIFIBER uses unique bandwidth expanding techniques (asymmetric techniques) to build the wide band coupler (WBC). The WBC has an operating bandwidth of ± 40nm or EDFA C band or L band, and it features low excess loss and low wavelength depend loss (WDL).

Features
Low excess loss
Low PDL
High stability and reliability

Applications
CATV
LAN
Optical fiber sensors
esting instruments

Specifications
Grade		P	A		P	A
Parameter
Operating wavelength (nm)		1310 ,1550 or C+L Band			C Band or L Band
Operating bandwidth (nm)		± 40			1528 ~1565 or 1570 ~1605
Typical excess loss (dB)		0.07		0.1	0.07		0.1
Insertion loss (dB)	50/50	≤3.4		≤3.6	≤3.35		≤3.5
	45/55	≤4.1/3.1		≤4.3/3.3	≤4.0/3.0		≤4.2/3.2
	40/60	≤4.4/2.6		≤4.7/2.8	≤4.4/2.55		≤4.6/2.7
	35/65	≤5.2/2.3		≤5.5/2.5	≤5.1/2.2		≤5.3/2.4
	33/67	≤5.4/2.2		≤5.7/2.3	≤5.3/2.1		≤5.5/2.25
	30/70	≤5.7/1.9		≤6.0/2.0	≤5.7/1.85		≤5.9/1.95
	25/75	≤6.6/1.7		≤7.0/1.8	≤6.5/1.65		≤6.8/1.75
	20/80	≤7.6/1.25		≤8.0/1.3	≤7.55/1.25		≤7.8/1.3
	15/85	≤9.2/1.0		≤9.6/1.2	≤9.0/1.0		≤9.3/1.1
	10/90	9.55~10.65/≤0.65		9.3~10.9/≤0.8	9.55~10.60/≤0.65		9.35~10.85/≤0.8
	5/95	12.40~13.80/≤0.4		12.10~14.10/≤0.5	12.45~13.75/≤0.4		12.15~14.05/≤0.45
	3/97	14.50~16.15/≤0.3		14.15~16.50/≤0.4	14.55~16.10 /≤0.3		14.20~16.45/≤0.35
	2/98	16.10~18.05/≤0.25		15.70~18.45/≤0.35	16.2~17.95/≤0.25		15.80~18.35/≤0.3
	1/99	19.05~21.15/≤0.2		18.55~21.65/≤0.3	19.1~21.1 /≤0.2		18.65~21.55/≤0.3
PDL (dB)		≤0.10		≤0.15	≤0.10		≤0.15
Directivity (dB)		≥55
Operating temperature (℃)		-40 ~ +85
*The above specification is without connector.
*Other specifications can be made on customer request.
