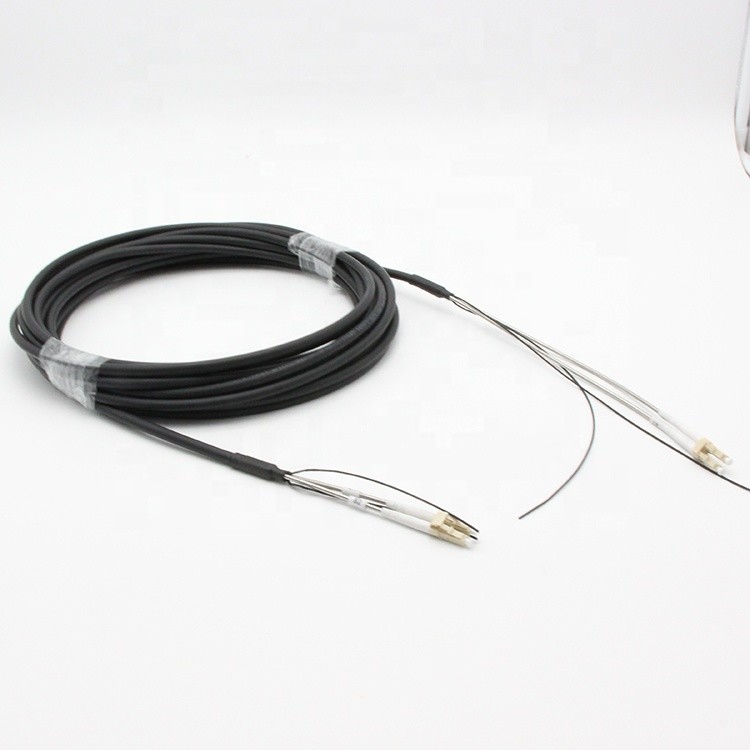

FTTA CPRI Armored Patch cord LC UPC to SC APC duplex singlemode G657A1 4.8/7.0mm outdoor waterproof cable assemblies
The outdoor fiber cable connector is designed by UNIFIBER which is the ideal choice for Fiber to the Antenna (FTTa) or any other harsh environmental applications, meeting IP67 environmental sealing ratings.
Multi-purpose Outdoor
Cable Parameters
Fiber Count | Cable Dimension mm | Cable Weight kg/km | Tensile N | Crush N/100mm | Min. Bend Radius mm | Temperature | |||
Long Term | Short Term | Long Term | Short Term | Dynamic | Static | ||||
2 or 4 | 4.8/7.0 | 42.3 | 200 | 400 | 1100 | 2200 | 20D | 10D | -40 ~ 85°C |
Note: 1. All the values in the table, which are for reference only,
are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; |
CableModel | GYFJH-4B1 /GYFJH-2B1 / GYFJH-2A1, |
Fiber Count | 2, 4 Fibers |
Fiber Type | SM G652D, SM G657A, or MM 50/125 or MM 62.5/125 |
Buffer Diameter | 900um±10um Material LSZH |
Simplex cable Diameter | 2.0mm±0.1mm Material LSZH |
Color | Orange or grey or customized |
Filler Diameter | 2.0mm±0.1mm |
Material LSZH | Color Black |
Strength Member | Kevlar |
Jacket Diameter | 7.0±0.1mm |
material PE | Color Black |
![]() |
