    CPRI DLC Fiber Optical Patch Cord LC LC Outdoor Waterproof FTTA RRU RRH 4.8/7.0mm Dia

    CPRI DLC fiber optic patch cord LC LC outdoor waterproof FTTA RRU RRH 4.8/7.0mm black LSZH fast on-site installation

    The CPRI patch cord wided used in wireless base station horizontal and vertical cabling for RRU and BBU connection or some other harsh environment. they are with standard size for Duplex LC Connectors, usually come as 2/4 fibers.


    FEATURES

    Good mechanical and environmental characteristics;
    Flame retardant characteristics meet the requirements of relevant standards;
    The mechanical characteristics of jacket meet the requirements of relevant standards;
    Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;

    APPLICATION
    Deployment in Remote Radio Head cell tower applications

    For connection between distribution box and RRH

    Multi-purpose Outdoor


    Cable Parameters

    Fiber CountCable Dimension
    mm
    Cable Weight
    kg/km
    Tensile
    N
    Crush
    N/100mm
    Min. Bend Radius
    mm
    Temperature
    Long TermShort TermLong TermShort TermDynamicStatic
    2 or 44.87/7.042.32004001100220020D10D-40 ~ 85°C
    Note: 1. All the values in the table, which are for reference only, are subject to change without notice;
    2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;
    3. D is outer diameter of the round cable;

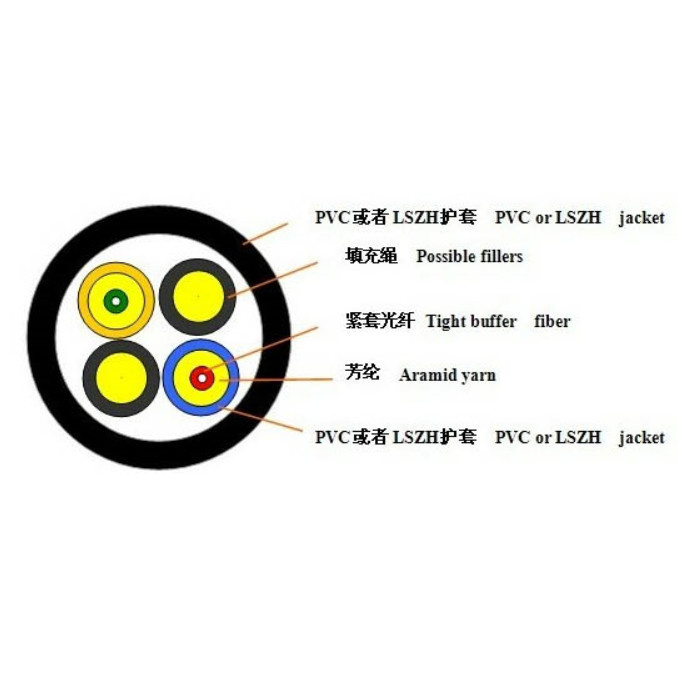

    CableModelGYFJH-4B1 /GYFJH-2B1 / GYFJH-2A1,
    Fiber Count2, 4 Fibers
    Fiber TypeSM G652D, SM G657A, or MM 50/125 or MM 62.5/125
    Buffer Diameter900um±10um Material LSZH
    Simplex cable Diameter2.0mm±0.1mm Material LSZH
    ColorOrange or grey or customized
    Filler Diameter2.0mm±0.1mm
    Material LSZHColor Black
    Strength MemberKevlar
    Jacket Diameter4.8/7.0±0.1mm
    material PEColor Black

    PARAMETERS

    TypeSM-UPCSM-APCMM-UPC
    TypicalMAXTypicalMAXTypicalMAX
    Insertion loss≤0.1≤0.3dB≤0.15≤0.3dB≤0.05≤0.3dB
    Return loss≥50dB≥60dB≥30dB
    Durability500 mating cycles
    Working temperature-40 to + 85℃
