    Low Insertion Loss Pre Terminated Multi Fiber Cables 12/24 Core ADSS 2.0/3.0mm

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Model Number : Multifiber
    Certification : ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 1000pcs/day
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

    Low Insertion Loss Pre Terminated Multi Fiber Cables 12/24 Core ADSS 2.0/3.0mm

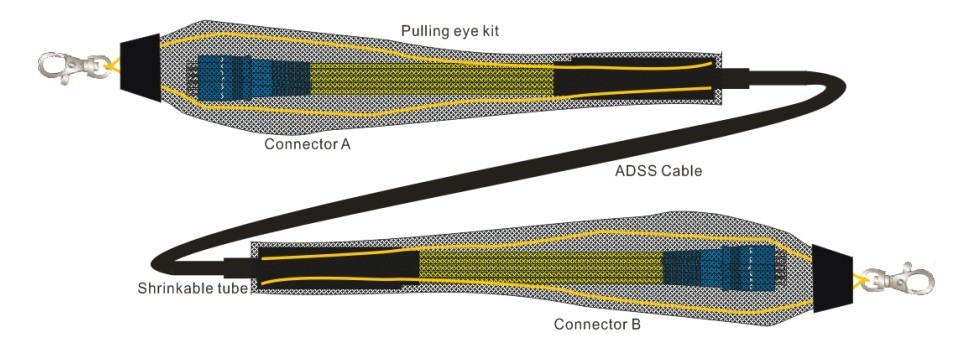

    Outdoor pre terminated cable 12/24 core ADSS 2.0/3.0mm break-out patch cord with pulling eye kit


    Pre-terminated indoor/outdoor fiber cable assembly is designed to support today's data needs while meeting tomorrow's ever-advancing network requirements. It's ideal for connecting the networks of two buildings through the use of an underground conduit, also installed in entrance facilities.

    Applications

    CATV; Active device termination;

    Telecommunication networks;

    Metro;

    Local Area Networks;

    Data processing networks;

    Test equipment;

    Premise installation;

    Wide Area Networks;


    Features

    Low insertion loss and high reflection loss

    4-48 core 0.9, 2.0, 3.0 break-out leg available

    Quick & easy installation without special skills, reducing installation time.

    Protect the connectors and prevent the cable from twisting during the pull.

    Various connectors are available - LC/SC/FC/ST


    Specifications

    msSingle modeMulitmode
    PCUPCAPC62.5/12550/12550/125 10G
    Insertion Loss≤0.2dB≤0.3dB
    Return Loss≥45dB≥50dB≥60dB≥35dB
    Durability≤0.1dB typical change,500matings
    Operating Temperature-40 to +75-40 to +75
    Ferrule Hole Sizes125.0+1/-0um,Conentricity:≤1um125um,Conectricity:1≤3um
    125.3+1/-0um,Conentricity:≤1um127um,Conectricity:1≤3um
    125.5+1/-0um,Conentricity:≤1um128um,Conectricity:1≤3um
    125.0+1/-0um,Conentricity:≤1um
