12/24 port MPO/MTP to duplex LC APC LGX cassette module, factory fully loaded MTP/MPO Plug & Play Cassettes

UNIFIBER Offers a variety of single mode and multimode MTP/MPO Cassettes. The standard cassettes can accommodate 12 and 24 port configurations with different sizes of cassettes are available feauring all fiber modes and connector options. They are pre-terminated, pre-tested, and come with 12- or 24-fiber MPO/MTP connectors on the back that break out tosingle or array connectors on the front. Cassettes are custom-built to your configuration needs and modules are custom-built to tomeet your specific application needs. Select from a variety of connectors including LC, SC, and MU for OM1, OM2, OM3, OM4, and OS2 deployment.

FEATURE
MPO/MTP adapter swivel allows for easy cable routing and proper bend radius
All cassettes use either 24-fiber or 12-fiber low-loss MPO/MTP connectors on the back

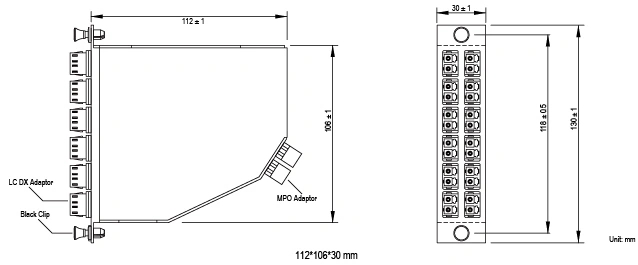

Come with Standard Black LGX footprint styles and Available in Custom-Built Cassettes

Plug-and-play cassette eliminates the need for field termination or splices
Allow for a simple migration path to 40GbE and 100GbE networks with MPO/MTP cassettes

100% factory tested with test results included with each cassette

Application
CATV
Active device termination
Telecommunication networks
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Precise installations
Wide Area Networks (WANs)

	Single mode		Multimode
	LC, SC, MU	MPO, MTP	LC, SC, MU	MPO, MTP
MAX IL	≤0.3dB	≤0.75dB	≤0.3dB	≤0.75

Remark:

24-strand 24 fibers LGX= 1 x MPO/MTP-Adapter back to the cassette.
12-strand 24 fibers LGX= 2 x MPO/MTP-Adapter back to the cassette.
Color:

Connector: LC/SC/MU SM-Blue, APC-Green, MM-Beige, OM3-Aqua, OM4-Violet ; MPO/MTP SM-Green, MM-Beige, OM3-Aqua.

Adaptor: LC/SC SM-Blue, APC-Green, MM-Beige, OM3-Aqua, OM4-Violet ; MU-Brown ; MPO/MTP-Black
