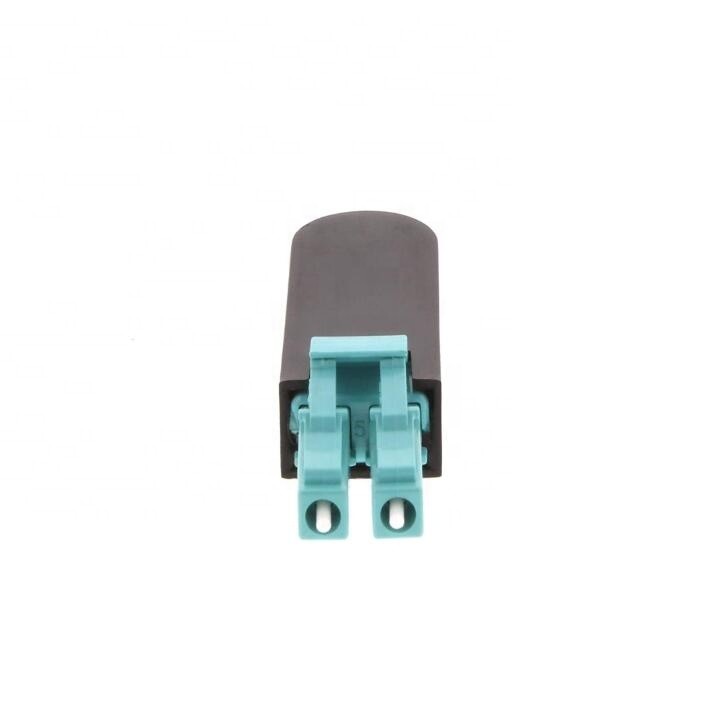

    PVC/LSZH Jacket Fiber Optical Patch Cord LC OM3 50/125um Multimode Loopback Modules

    Ask Lasest Price
    Brand Name : UNIFIBER or OEM
    Model Number : LC
    Certification : RoHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000pcs/day
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

    PVC/LSZH Jacket Fiber Optical Patch Cord LC OM3 50/125um Multimode Loopback Modules

    LC OM3 50/125um multimode loopback modules, excellent exchangeability and repeatability, for network components testing

    Loopback used for testing the system or network system in the signal back, through the return signal, you can detect the network link in a variety of potential anomalies, this test is widely used to ensure the normal network link to provide An effective detection method.
    Fiber Optic Loopback Modules may also be used for the burn-in stage of boards and other equipment.​Loopback Modules incorprate two fiber optic connectors. One fiber optic connector is plugged into the output port, while the other fiber optic connector is plugged into the input port of the equipment.


    Features

    High quality ferrule
    Various test equipment
    Low insertion loss Optical fiber communication system
    High return loss


    APPLICATIONS

    Equipment interconnection
    Device pig-tailling
    Premise networks
    Patch panel applications
    Communications connections
    LoopBack for network components testing


    SPECIFFCATIONS
    Type
    Singlemode
    Multimode
    Insertion loss
    PC≤ 0.3dB UPC≤ 0.2dB APC ≤ 0.3dB
    PC≤ 0.5dB UPC≤ 0.3dB APC ≤ 0.3dB
    Return loss
    UPC≥ 50dB APC ≥ 60dB
    -
    Repeatability
    ≤ 0.1db
    Changeability
    ≤ 0.2dB
    Working temperature
    -40 to 8o Celsius
    Durability
    1000 times
    Sustain tension
    ≥ 100N
    Fiber
    9/125um , 50/125um, 62.5/125um, OM3 etc
    Diameter
    0.9mm
    Cores
    duplex

    PVC/LSZH Jacket Fiber Optical Patch Cord LC OM3 50/125um Multimode Loopback Modules
