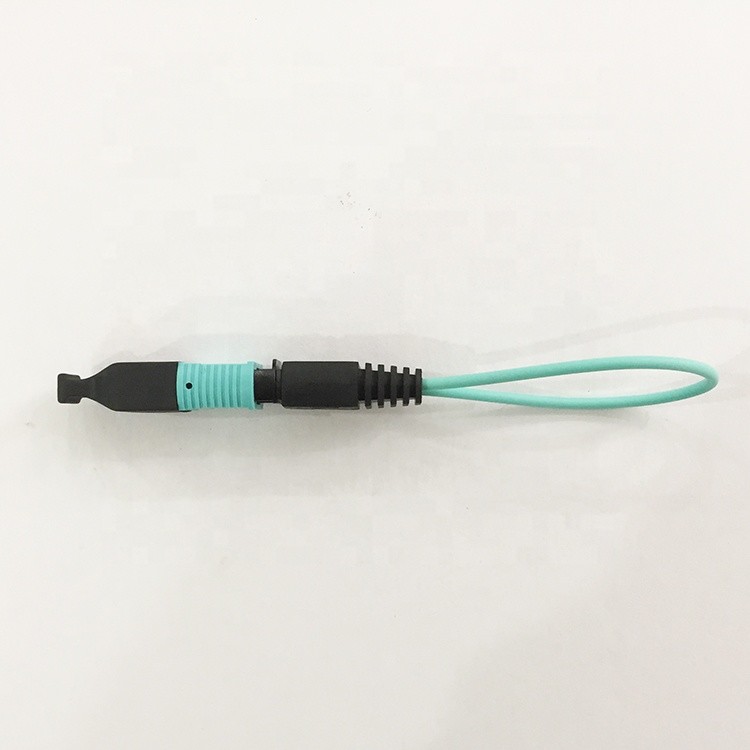

MPO MTP fiber optic loopback Tester Cable Assemblies,12 24 fiber OM3/OM4 multimode Aqua loopback patch cord

MPO/MTP Loopback modules are used widely within testing environment especially within parallel optics 40 and 100G networks. Devices allow verification and testing of transceivers featuring MPO/MTP interface – 40G BASED-SR4 QSFP+ or 100G BASE-SR10 CXP/CFP devices. Loopbacks are built to link Transceivers (TX) and Receivers (RX) positions of MPO/MTP transceivers interfaces. MPO/MTP loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MPO/MTP trunks/patch leads.

Features
SM 9/125, MM 50/125, MM 62.5/125
12 or 24 Fiber Ferrule
MPO/MTP LSZH, OFNP, OFNR Cable Jacket Options
Female and Male MPO/MTP option of Connectors

Polarity Variants selection40G QSFP+ and 100G CXP/CFP transceivers
Factory Terminated and Tested MPO/MTP Interface
MPO/MTP components feature superior optical and mechanical properties

Applications
Data Centre Infrastructure
Storage Area Network- Fiber Channel
Parallel Optics
InfiniBand
Emerging 40 and 100Gbps Protocols

Unifiber, a Hi-Tech company specialized in developing and manufacturing optical fiber products. Based on strong hardware development, we are offering the most cost-effective cabling solutions on optical networking, data center, FTTx and OEM solution.

Our featured products includes FTTA Waterproof Connectors, indoor/outdoor armored cable assembly, Pre-terminated Multifiber Cables, FTTH flat drop patch cable, LC Uniboot, 6~12 fiber pigtails and MTP/MPO series. We can also provide adapter, attenuator, fused coupler, PLC Splitter, WDM and various of patch panel, terminal box, ODF and tool series products..

Providing the highest quality products and services is always the most important principle to Unifiber, All our products are subjected to strict test according to BELLCORE standard and fully RoHS compliant. Through the efforts of our team, Unifiber has obtained a widespread acknowledgement, Our products continue to enjoy growing acceptance both in China and abroad.
