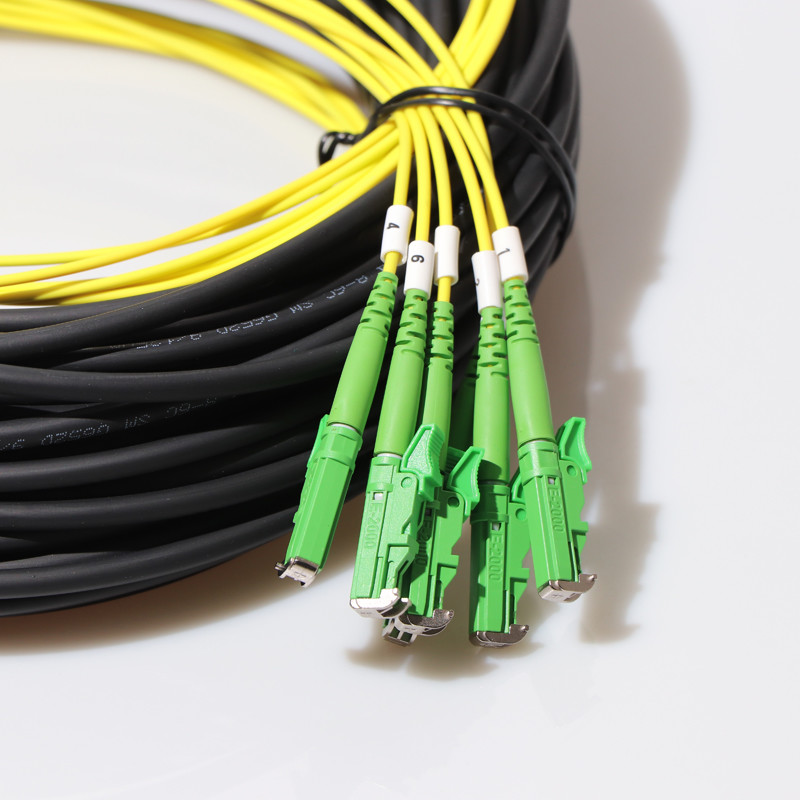

Pre terminated cable 6core single mode E2000 apc LC upc outdoor
fiber optic assembly black LSZH/OFNR/OFNP jacket
UNIFIBER providing high-quality pre-terminated cables for indoor and/or
outdoor applications, with fanout number ranging from 12 to 144.
Available connector types include MPO, SC, LC, FC, LSH, and MU,
available fanout kits include steel-tube type, round type, box
type, barrel type, etc., and available fanout types include bare
fiber, 0.9mm, 1.2mm, 2.0mm, 3.0mm, etc. The fanout length can be up
to 10 meters, and the fanout tolerance can be as small as 0.5cm.
indoor/outdoor non-armored Pre-Terminated Fiber Optic Cable
Assemblies are great choices for multiple applications inside or
outside. For those jobs outside, consider our outdoor non-armored
Pre-Terminated Fiber Optic Cable Assemblies for aerial or burial in
duct applications. If you’re facing the most extreme conditions,
check out our outdoor armored direct burial/aerial and ADSS
self-supporting aerial Pre-Terminated Fiber Optic Cable Assemblies.
They will provide outstanding service and durability in all kinds
of conditions.
All of our pre-terminated cable products are tailor-made to
customers’ specific requirements. We can fulfill any kinds of
customers’ demands on products’ specs including connector type,
fanout type, fanout length/tolerance, cable structure, etc., for a
wide range of applications including FTTC, FTTB, FTTH, FTTA, data
center, industrial, robotic, health-care fields, etc.
Applications:
Telecommunications networks
CATV, LAN, MAN and WAN application
Data processing networks
Cable television
Fibre-To-The-Home (FTTH)
Premises distribution
Features
Easily add/install jumper cables for a future expansion
Factory-assembled cables for a fast on-site installation
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products
are available
Connected with trunk cables on one end, equipment port on the other
end.
Connected with transfer modules on one end, equipment port on the
other end.
100% pre-terminated and tested in factory to ensure transfer
performance
Rapid configuration and networking, reduce installation time
IP67 water and dust protection Flexibility with small bending
radius and excellent cable routing properties
PARAMETERS
| Type | SM-UPC | SM-APC | MM-UPC |
| Typical | MAX | Typical | MAX | Typical | MAX |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB |
| Durability | 500 mating cycles |
| Working temperature | -40 to + 85℃ |
