Traceable duct rodder with inserted steel or copper wire for
excellent conductivity,Hand-operated brake for easy push, pulling
and stop

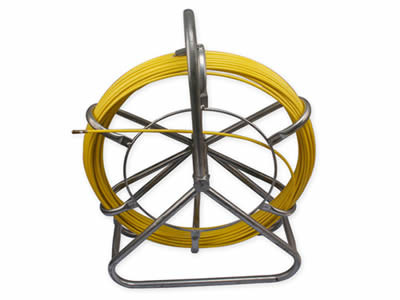

Traceable duct rodder
as its name says, has excellent traceable performance due to its
special design. The wire diameter of traceable duct rodder can be
made into 8 mm – 16 mm diameter rods to be used to find, follow and
accurately map the duct route without digging or trenching.
Structure of traceable duct rodder
As we all know, the conventional fiberglass duct rodder or
fiberglass fish tape is composed of resin impregnated fiberglass
core rod and polypropylene thermoplastic sheath. The traceable duct
rodder has a special structure for traceable applications.
Inserted copper or steel wire.

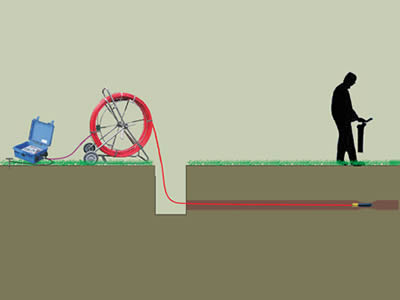

The 0.5 mm to 1.0 mm copper wire or steel wire are inserted in the
center of the fiberglass core rod. Additional, the copper or steel
wire is directly connected with the transmitter leads on the end
fitting. The other transmitter lead is connected to a stake driven
into the earth. So, the copper or steel wire can supply a direct
and efficient transmission.
Fiberglass rod.
The glass fibers are impregnated with resins to form strong and
solid fiberglass rod. The fiberglass rod is the most important
part, which supplies anti-bending and not easy to breakage.
Polypropylene sheath.
Polypropylene granules are melted and then cover the fiberglass rod
for excellent abrasion resistance performance. Additional, the
polypropylene sheath can be made into different colors to make the

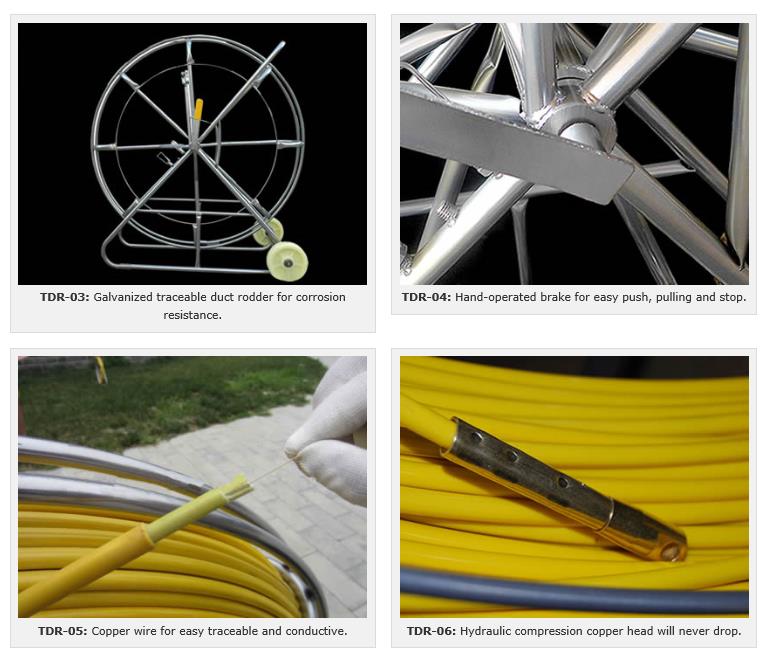

traceable duct rodder colorful and beautiful.Frame: galvanized or
powder coated frame supplies corrosion and rust resistance and
durable life.
Rubber or plastic wheels.
The wheels make the transporting and operating easy, convenient and
labor saving.
Hand-operated brake.
It makes the push, pull and stop operation easy and convenient.
Hydraulic compression copper head. Hydraulic compression make the
head will never drop.
Rod guide.
Grip.
Associated equipment. Signal transmitter and receiver.
Specifications of traceable duct rodder
Traceable wire material: copper wire or steel wire.
Traceable wire diameter: 0.5 mm to 1.0 mm.
Core rod material: glass fibers with resin impregnated.
Sheath material: polypropylene.
Rod diameter: 8 mm to 16 mm.
Rod length: 80 m to 500 m.
Frame size: 160mm × 450mm × 500mm, 170mm × 600mm × 750mm, etc.
(maximum size: 550mm × 1500mm × 1600mm).
Frame material: Galvanized pipe or powder coated pipe.
Features of traceable duct rodder
Copper or steel wire for excellent conductive performance.
PP sheath supplies excellent abrasion resistance performance and
various colors.
Fiberglass core rod is anti-bending.
Galvanized or PVC coating frame for durable and corrosion and rust
resistance.
Hand-operated brake for easily pull, push and
Applications of traceable duct rodder
Find, follow and accurately map the duct route.
Communication cable laying.
Optical cable laying.
Pipeline washing and cleaning
