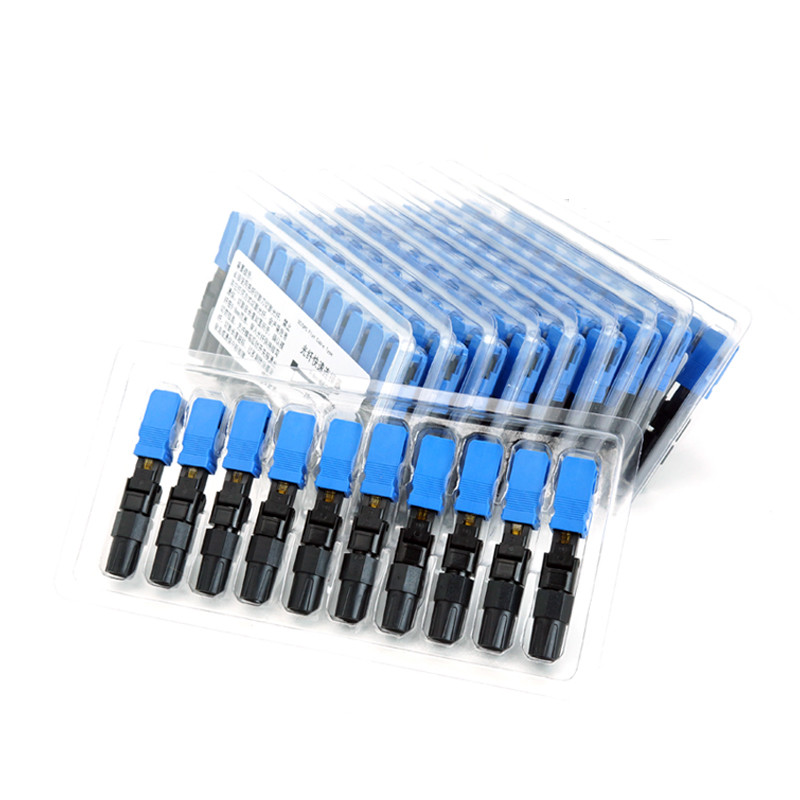

0.9/2.0/3.0mm Fiber Optic Cable Connectors Pre Polished Ferrule Field Assembly

0.9/2.0/3.0mm Pre-polished Ferrule Field Assembly Connector Fast/Quick Connector,SC/FC/LC/ST optional

Applications

Broadband, CATV.

FTTH & FTTx;
Passive Optical Networks;

Features

No epoxy and polishing required, No special tools needed when installed.

Low insertion loss and High return loss
Reliable, durability over 500 times mating

Easily installed, Quick and easy fiber termination in the field.

Fast connecting and repeat, No special tools needed when installed

Reliable, durability over 500 times mating

Low environmental sensitivity, adopt to complex environment

Field Assembly SC/PC fast connector for FTTH can provide a quick and easy termination of fibers in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens and polishing and fibe ederface inspection.

ITEM	Technical Parameters
Applicable for	Drop cable / Indoor cable
Applicable for	0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter	SM(9/125), MM(50/125, 62.5/125)
Optical fiber diameter	125μm ( 657A & 657B )
Tight buffer diameter	250μm
Fiber mode	Single mode
Operation time	About 100s(no fiber cut)
Insert loss	≤ 0.3dB(1310nm & 1550nm)
Return loss	> 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber	>5 N
Fastening strength of naked fiber holder	>10 N
Tensile strength	>50 N
Using temperature	-40~+75°C
On-line tensile strength (20 N)	IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times)	IL ≤ 0.5dB RL ≤ 5dB
Drop-off test (drop-off height 4m,once per direction, totally 3 times)	IL ≤ 0.5dB RL ≤ 5dB

0.9/2.0/3.0mm Fiber Optic Cable Connectors Pre Polished Ferrule Field Assembly
