    8 Core Single Mode Fiber Optic Cable Soft Flexible 900um Tight Easy To Splice

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Model Number : GJFJV
    Certification : ROHS,CE,UL
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000km/month
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

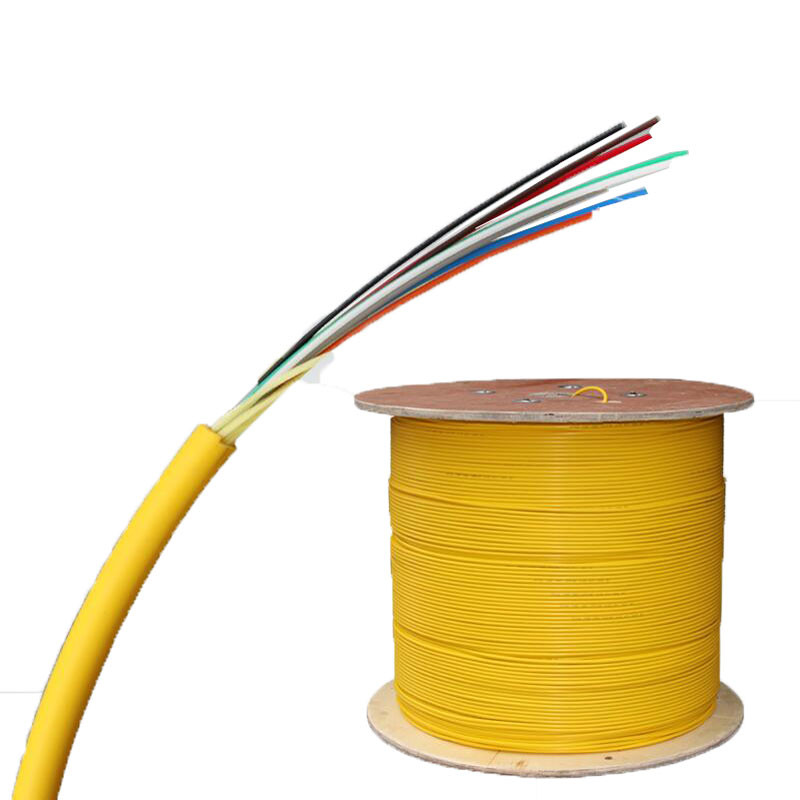

    8 Core Single Mode Fiber Optic Cable Soft Flexible 900um Tight Easy To Splice

    8 core single mode fiber optic cable, Soft and flexible easy to splice, 900um tight buffer fiber optic cable 8 core


    GJFJV multi-purpose distribution cable use several 900um flame-retardant tight buffer fiber as optical communication medium,the tight buffer fiber wrapped with a layer of aramid yarn as strength member units and then is completed with a PVC or LSZH (Low smoke,Zero halogen,Flame-retardant) The tight buffer fibre is manufactured by sheathing the fibre with an appropriate buffer material. The diameter of Φ600μm or Φ900μm could be produced. The selection of top-quality fibre, specific production equipment and accurately designed tools ensure a good performance of the product.


    Features:

    Good mechanical and environmental characteristics

    Flame retardant characteristics meet the requirements of relevant standards.
    The mechanical characteristics meet the requirements of relevant stands
    Soft, flexible easy to splice and with big capacity data transmission


    Application:

    Used in indoor cabling,especially used as distribution cable
    Used in pigtails and patch cords
    Used as interconnect lines of equipments,and used in optical connections in optical communication rooms and optical distribution frames



    Number of fiber8core
    Loose tubematerialPBT
    diameter2.2(outer/inner)
    Tube-fillingTube filling compoun
    Steel wiresize0.8mm
    Number2
    Outer sheathmaterialPE,HDPE,LDPE
    diameter1.8±0.2mm

    Cable Mechanical characteristic

    coreCable diameterweight
    1~88.0mm+-0.3mm65kg/km+-10kg
    Temperature range-40+70(℃)-----
    Min Bending Radius(mm)Long term10D
    Min Bending
    Radius(mm)
    Short term20D
    Min allowable
    Tensile Strength(N)
    Long term1200
    Min allowable
    Tensile Strength(N)
    Short term1500
    Operation temperature-40+70(℃)
    Installation temperature-20+60(℃)
    Storage temprature.
    -40+70(℃)
