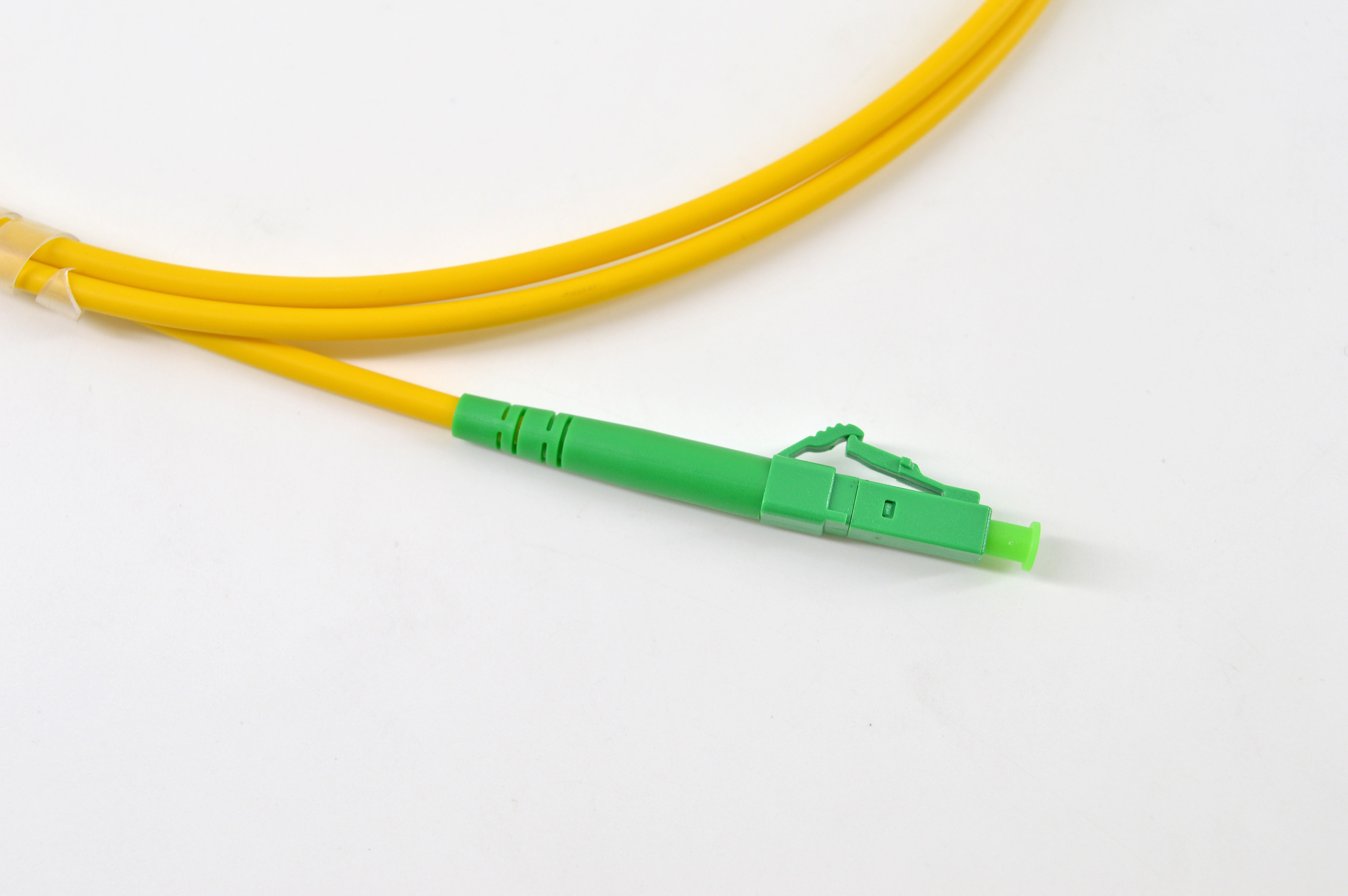

Multimode Fiber Optic Patch Cable Lc To Lc 2.0/3.0mm Corning G652D/G657A PVC/LSZH Jacket

    Buy cheap Multimode Fiber Optic Patch Cable Lc To Lc 2.0/3.0mm Corning G652D/G657A PVC/LSZH Jacket from wholesalers

    Buy cheap Multimode Fiber Optic Patch Cable Lc To Lc 2.0/3.0mm Corning G652D/G657A PVC/LSZH Jacket from wholesalers
    • Buy cheap Multimode Fiber Optic Patch Cable Lc To Lc 2.0/3.0mm Corning G652D/G657A PVC/LSZH Jacket from wholesalers
    • Buy cheap Multimode Fiber Optic Patch Cable Lc To Lc 2.0/3.0mm Corning G652D/G657A PVC/LSZH Jacket from wholesalers

    Multimode Fiber Optic Patch Cable Lc To Lc 2.0/3.0mm Corning G652D/G657A PVC/LSZH Jacket

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Model Number : LC
    Certification : ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 1000pcs/day
    Delivery Time : 3~5 business days
    • Product Details
    • Company Profile

    Multimode Fiber Optic Patch Cable Lc To Lc 2.0/3.0mm Corning G652D/G657A PVC/LSZH Jacket

    multimode fiber optic patch cord, fiber patch cord lc to lc, 2.0/3.0mm corning G652D/G657A PVC/LSZH jacket


    Fiber Optic Patch Cord is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.


    Application:

    Telecommunication networks

    LAN and WAN

    Data Centre
    FTTX/CATV
    Broadband network


    Features:

    High return loss;

    Low insertion loss;

    Ceramic Ferrule;

    Good repeatability and and exchangeability

    Excellent Polished and 100% tested;

    Complying with Telcordia ,GR-326-Core, IEC and RoHS Standard.


    Order information

    1. Connector: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA Connector Optional.
    2. Ferrule end-face: PC, UPC, APC optional.
    3. Fiber mode: 9/125um Singlemode, Multimode(OM2, OM3, OM4, OM5) optional.
    4. Fiber Count: simplex, duplex optional.
    5. Cable diameter: 3.0mm, 2.8mm, 2.0mm, 1.8mm, 1.2mm, 0.9mm optional.
    6. Cable color: Yellow, ivory, white, blue, orange, aqua, pink color optional.
    7. Cable length: 0.5m to 50m optional.
    8. Cable jacket: PVC or LSZH optional.


    ItemSM(Single Mode)MM(Multimode)
    Fiber Cable TypeG652/G655/G657OM1OM2/OM3/OM4
    Fiber Diameter (um)9/12562.5/12550/125
    Cable OD (mm)0.9/1.6/1.8/2.0/2.4/3.0
    Endface TypePCUPCAPCUPCUPC
    Typical Insertion Loss (dB)<0.2<0.15<0.2<0.1<0.1
    Return Loss (dB)>45>50>60/
    Insert-pull Test (dB)<0.2<0.3<0.15
    Interchangeability (dB)<0.1<0.15<0.1
    Anti-tensile Force (N)>70
    Temperature Range (℃)-40~+80

    Multimode Fiber Optic Patch Cable Lc To Lc 2.0/3.0mm Corning G652D/G657A PVC/LSZH JacketMultimode Fiber Optic Patch Cable Lc To Lc 2.0/3.0mm Corning G652D/G657A PVC/LSZH Jacket
