    8 Port Fiber Optic Cable Termination Box Wall Mounting Load With SC FC ST Connectors

    Ask Lasest Price
    Brand Name : UNIFIBER
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10000pcs/day
    Delivery Time : 3-5days
    • Product Details
    • Company Profile

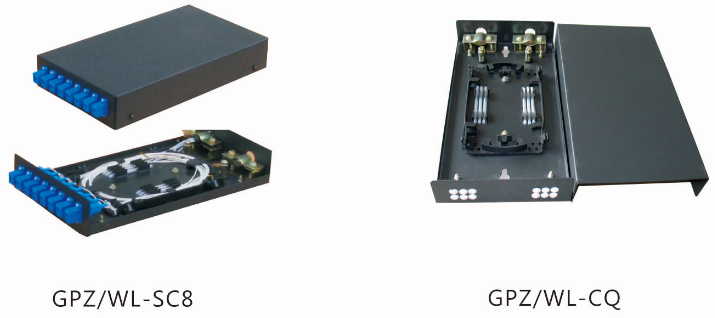

    8 Port Fiber Optic Cable Termination Box Wall Mounting Load With SC FC ST Connectors

    Termination box for fiber, wall mounting, load with 8 port SC,FC,ST connectors, 2 in/8 out

    GPZ/WL series can be applied in the straight through or branch connection of indoor optical cable;Available for the distribution and terminal connection of various kinds of optical fiber system,fit for wall mounting.


    Application
    Fiber Optic Communication System
    FTTH Project
    LAN Terminal
    CATV
    Features
    1~8 ST, SC, FC, LCadapters available
    Reliable Cable fixing, Ground protection devices
    Upper and lower plate structure makes installing easily. Wall mount installation
    TypeSize(mm) W*D*HMax capacityCable portsOuter carton dimensionOuter cartion weight
    GPZ/48A-12183*330*70122 in,12 out430*370*470/10pcs20
    GPZ/48A-24183*330*100242 in, 24 out430*370*470/8pcs18
    GPZ/48A-48220*330*100482 in, 48 out430*600*510/8pcs20
    GPZ/S-8132*285*4682 in, 8 out630*330*340/20pcs11.5
    GPZ/S-12132*285*46122 in, 12 out630*330*340/20pcs11.5
    GPZ-WL-8140*260*4082 in, 8 out630*330*340/20pcs21
    GPZ-WLA-8115*220*4582 in, 8 out550*520*320/40pcs21.6

    TypeSize(mm) W*D*HMax CapacityOuter carton diameterOuter carton weight
    GPZ/WLB-JY-CQ1290*153*3012500*330*200/50pcs16.5
    GPZ/WLA-JY-CQ12115*175*3512670*410*280/50pcs21.3
    GPZ/WLA-CQ12110*220*4012550*520*320/40pcs21.6
    GPZ/G120*300*4624630*330*340/20pcs22.5
    GPZ/48A183*330*7048430*370*470/10pcs20
