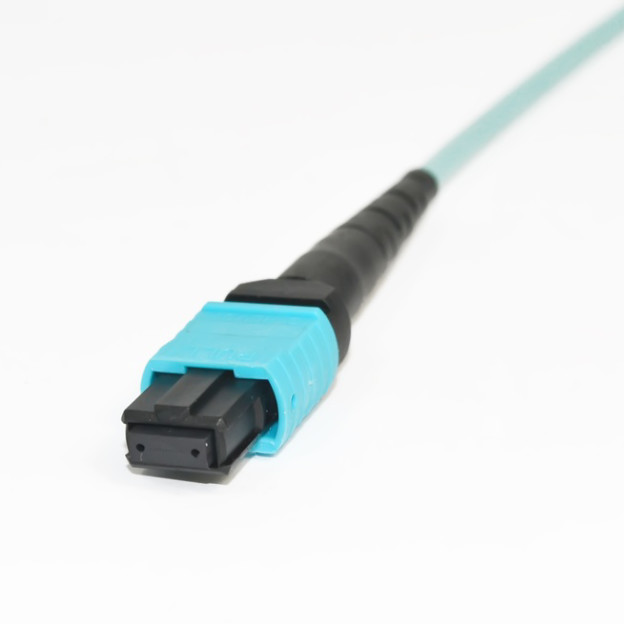

Pulling eyes/socket MPO/MTP fiber patch cords, OM3/OM4 mtp mpo
trunk fiber cable, with customized length
UNIFIBER provide complete solution for your data center
interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out
0.9mm Patch Cords ,IP-Series MPO/MTP Assembly ,High Density Patch
Cords ,MPO/MTP Loopback ,MT Patch Cords ,MPO/MTP Cassettes ,MPO/MTP
Fiber Optic Patch Panel
MPO/MTP Trun cable patch cord, a cost-effective alternative to time-consuming field termination,
is designed for high-density fiber patching in data centers which
need space saving and reduce cable management troubles. With US
Conec MTP connectors and Corning SMF-28 ultra optical fiber, it is
optimized for 40G QSFP+ PLR4 to 10G SFP+ LR, 400G OSFP/QSFP-DD DR4
to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics
direct connection and high-density data center applications.
APPLICATION
High density architectures
Data communication network
Optical System Access network
Storage area networking fiber channel
FEATURES
100% pre-terminated and tested in factory to ensure transfer
performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products
are available
Parameters
| Performance Level | Standard | Elite |
| Connector | Mode | Endface | IL(max) (dB) | RL(min) (dB) | IL(max) (dB) | RL(min) (dB) |
| MPO/MTP | SM | 12F/APC | ≤0.70 | ≥60 | ≤0.35 | ≥60 |
| 24F/APC | ≤0.75 | ≥60 | ≤0.35 | ≥60 |
| 48F/APC | ≤0.75 | ≥60 | | |
| MM | 12F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 |
| 24F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 |
| 48F/PC | ≤0.50 | ≥20 | | |
| LC/SC/FC/ST | SM | APC | ≤0.30 | ≥60 | ≤0.10 | ≥60 |
| UPC | ≤0.20 | ≥50 | ≤0.10 | ≥50 |
| MM | PC | ≤0.20 | ≥30 | ≤0.10 | ≥30 |
| Mechanical Properties |
| Item | Criteria | Conformance |
| △IL After 50 Matings | MPO/MTP | ≤0.3dB | GR-1435 |
| △IL After 500 Matings | LC/SC/FC/ST | ≤0.2dB | IEC 61300-2-2 |
| Min Bend Radius (Dynamic) | 20*OD (Cable Diameter) |
| Min Bend Radius (Static ) | 15*OD (Cable Diameter) |
| Environment Conditions |
| Item | Criteria | Conformance |
| Operation Temperature | -40~60 | IEC 61753-1
|
| Storage Temperature | -45~85 |
