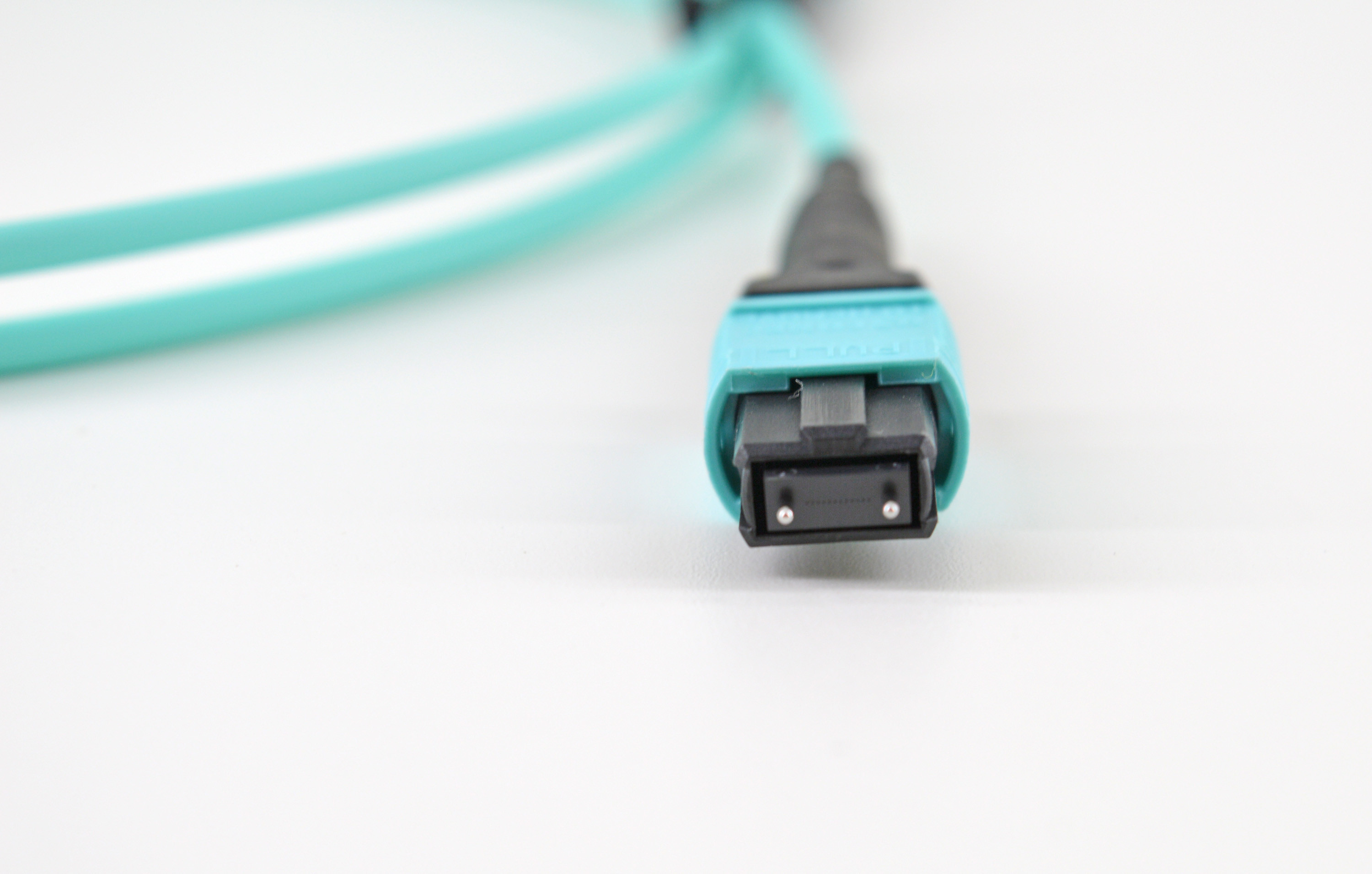

MPO MTP fanout cable, 48core 10G OM3 MTP/MPO Trunk Cable Assembly
with aqua LSZH jacket
UNIFIBER provide complete solution for your data center
interconnection solution, including MPO/MTP Trunk Cable ,MPO/MTP Harnesses Cables ,MPO/MTP Fan out
0.9mm Patch Cords ,IP-Series MPO/MTP Assembly ,High Density Patch
Cords ,MPO/MTP Loopback ,MT Patch Cords ,MPO/MTP Cassettes ,MPO/MTP
Fiber Optic Patch Panel
MPO/MTP Trun cable patch cord, a cost-effective alternative to time-consuming field termination,
is designed for high-density fiber patching in data centers which
need space saving and reduce cable management troubles. With US
Conec MTP connectors and Corning SMF-28 ultra optical fiber, it is
optimized for 40G QSFP+ PLR4 to 10G SFP+ LR, 400G OSFP/QSFP-DD DR4
to 100G QSFP DR and 400G OSFP/QSFP-DD XDR4 to 100G QSFP FR optics
direct connection and high-density data center applications.
APPLICATION
Data communication network
High density architectures
Storage area networking fiber channel
Optical System Access network
FEATURES
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products
are available
Rapid configuration and networking, reduce installation time
100% pre-terminated and tested in factory to ensure transfer
performance
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available
Parameters
| Performance Level | Standard | Elite |
| Connector | Mode | Endface | IL(max) (dB) | RL(min) (dB) | IL(max) (dB) | RL(min) (dB) |
| MPO/MTP | SM | 12F/APC | ≤0.70 | ≥60 | ≤0.35 | ≥60 |
| 24F/APC | ≤0.75 | ≥60 | ≤0.35 | ≥60 |
| 48F/APC | ≤0.75 | ≥60 | | |
| MM | 12F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 |
| 24F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 |
| 48F/PC | ≤0.50 | ≥20 | | |
| LC/SC/FC/ST | SM | APC | ≤0.30 | ≥60 | ≤0.10 | ≥60 |
| UPC | ≤0.20 | ≥50 | ≤0.10 | ≥50 |
| MM | PC | ≤0.20 | ≥30 | ≤0.10 | ≥30 |
| Mechanical Properties |
| Item | Criteria | Conformance |
| △IL After 50 Matings | MPO/MTP | ≤0.3dB | GR-1435 |
| △IL After 500 Matings | LC/SC/FC/ST | ≤0.2dB | IEC 61300-2-2 |
| Min Bend Radius (Dynamic) | 20*OD (Cable Diameter) |
| Min Bend Radius (Static ) | 15*OD (Cable Diameter) |
| Environment Conditions |
| Item | Criteria | Conformance |
| Operation Temperature | -40~60 | IEC 61753-1
|
| Storage Temperature | -45~85 |
