OM5 Indoor Outdoor Distribution Fiber Optic Cable Pre Terminated OM3 OM4 4 8 12 Fibers

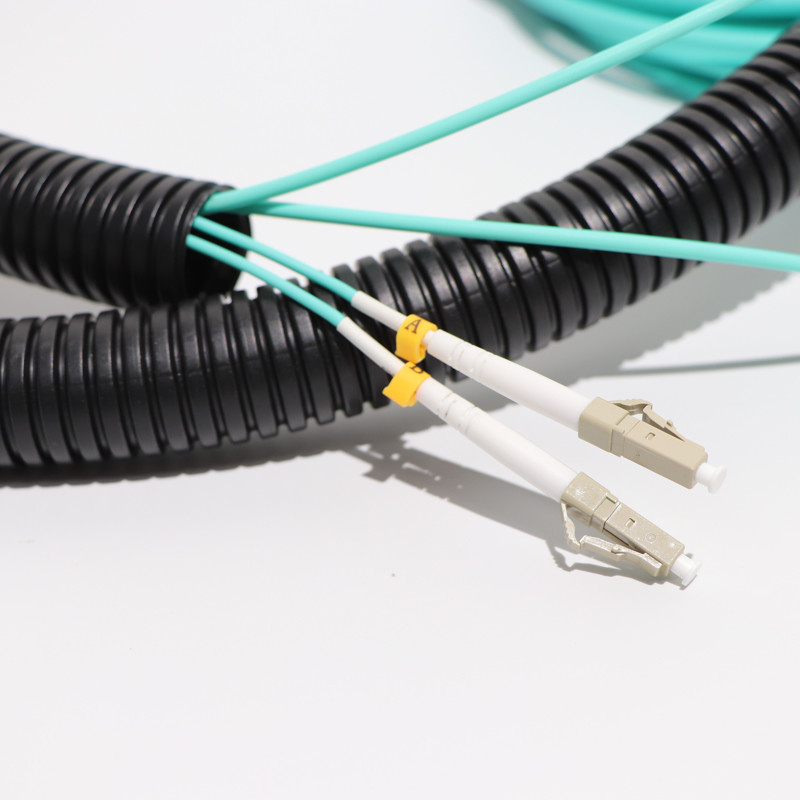

4,8,12 Fibers OM3,OM4,OM5 Multi-Fiber Pre-Terminated Breakout Patch cord,Indoor outdoor Distribution Cable

Our indoor/outdoor non-armored Pre-Terminated Fiber Optic Cable Assemblies are great choices for multiple applications inside or outside. For those jobs outside, consider our outdoor non-armored Pre-Terminated Fiber Optic Cable Assemblies for aerial or burial in duct applications. If you’re facing the most extreme conditions, check out our outdoor armored direct burial/aerial and ADSS self-supporting aerial Pre-Terminated Fiber Optic Cable Assemblies. They will provide outstanding service and durability in all kinds of conditions.
All of our pre-terminated cable products are tailor-made to customers’ specific requirements. We can fulfill any kinds of customers’ demands on products’ specs including connector type, fanout type, fanout length/tolerance, cable structure, etc., for a wide range of applications including FTTC, FTTB, FTTH, FTTA, data center, industrial, robotic, health-care fields, etc.

APPLICATIONS
Connected with trunk cables on one end, equipment port on the other end.
Connected with transfer modules on one end, equipment port on the other end.

FEATURES
100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available

Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

Parameters

Item	SingleMode	MultiMode
Insertion loss	≤0.2dB	≤0.3dB
Return loss	PC≥50dB, APC≥55dB, UPC≥60dB
Insert-pull test	1000 times
Repeatability	≤0.1
Tensile strength	≥10kg
Operating temperature	-40℃~ +85℃
Ceramic ferrule spec	125.5um concentricity deviations:≤1μm	127um concentricity deviations:≤3μm
Suitable fiber	9/125μm	50/125μm, 62.5/125μm
