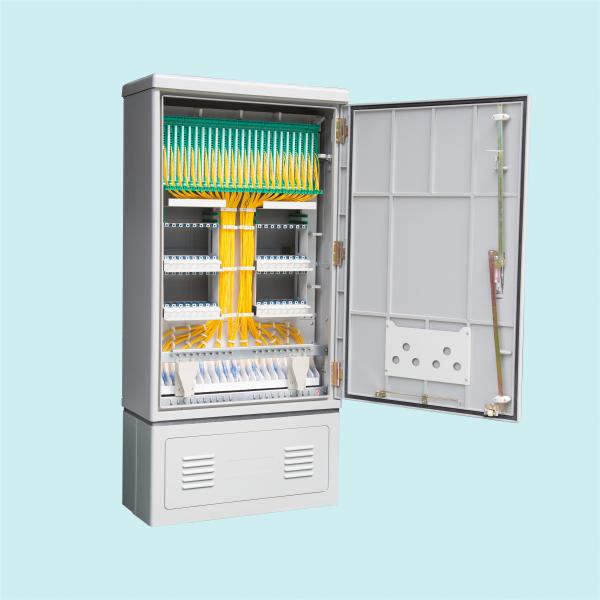

GXF(04) fiber interconnect cabinet can be applied in connecting, distribution and dispatch for outdoor cable. Through the fiber optic connectors and the fiber optic patch cords, it links the cables to cables actively. it provide safe, reliable, flexible management for the fiber cable or fiber equipments. It is suitable for kinds of communication networks, especially suitable for the optical network project.

Features:

1. The shell of this equipment is made of high intensity, anti-corrosive, anti-aging special composite material. It can effectively prevent rain, snow, insects and corrosive gases and other environmental impact.
2. Structural design is reasonable, using single-side and single lockable door. There is a large space in the cabinets. It’s easy to operate and maintain.
3. Have grounding device.
4. Give full consideration to fix, earthing and welding cable, to coil the redundant cable. It’s very convenient for connecting and scheduling the cable.
5. Internal optical path clearly marked, welding, coiling position clear.
6. Compact structure, easy installation and excellent sealing performance.
7. Using splicing & distribution integration module with fusion, connection and storage in integration. It’s available for different adaptors such as FC, SC, LC type. Adaptors assembling with deflexion of 30° to ensure fiber pigtail bending radius and to avoiding the light direct the eyes when operating.
8. Can integrate splitter, WDM.
9. For ribbon and non-ribbon cable.
10. Meet UL94-V0 standard.

Main Technical Specifications
Working Environment
Working temperature:-40℃～+45℃　
Storage temperature:-40℃～+60℃
Relative humidity:≤95%

Atmospheric pressure:70Kpa～106Kpa

Technical Performance
Standard working wavelength: 1310nm～1550nm
The insertion loss for the connectors ≤0.3dB
Return loss:APC≥60dB；UPC≥50dB；PC≥40dB
The insulation resistance between the grounding device and the metal accessories in the cabinet ≥2×104MΩ
Temperature performance: place it in the (-55℃～55℃)±2℃ environment about 16 hours, the performance will not be effected after 1 hours resuming in normal temperature.
Thermal performance: the box is made of special material with superior heat insulation performance.
Sealing performance: dustproof, superior GB4208/1P53 requirements.
Waterproofing: the water droplets will not enter in the box after being caught in the rain in 15 minutes with 80Kpa pressure
Cabinet static load capacity:shell cover ≥1000N
Lateral surface ≥500N
Door hinge ≥300N
Anti-shock capability: using the impact test bed, in the X,Y,Z three axis to impose six each, the peak acceleration is 300m/ S2 ,duration 6ms of the impact, without any damage and injuries.
Collision durability ≥250N/cm2
Seal of life: more than 10 years
Fiber bending radius: No matter where they turn, the radius of curvature of the fiber > 40mm when they are coiled in the box.

Dimension
