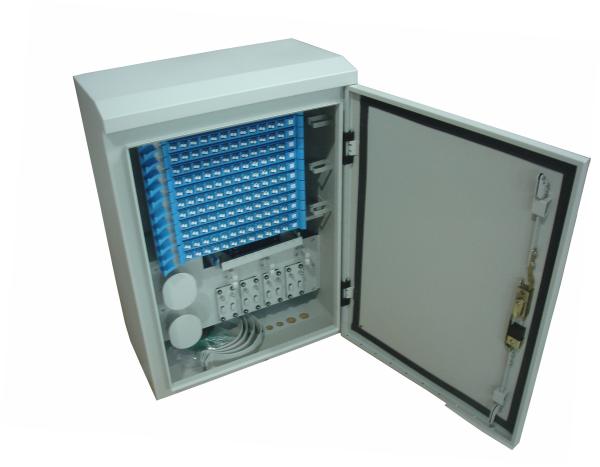

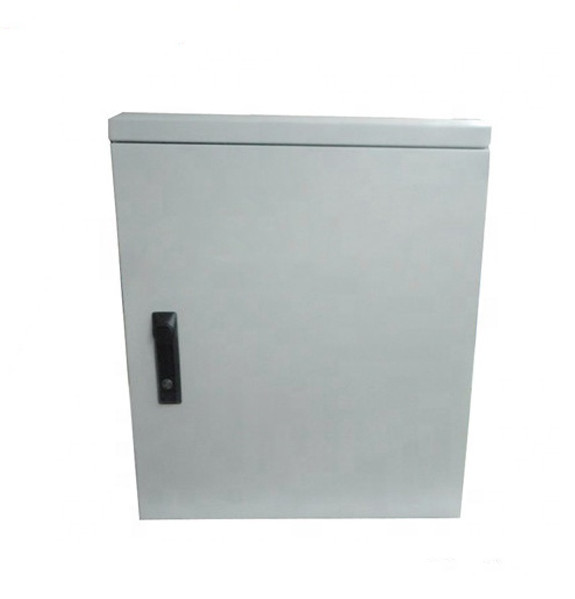

Telecommunication networks fiber entrance cabinet, 144fiber outdoor wall and pole mounted, IP65

Fiber Optic Cross Connect Cabinet is use for outdoor cable access network, backbone cable and indoor cable arrangement.it with high-capacity, high-density fiber distribution tray, suitable for the composition, splice and distribution of fibers in optical access network to achieve the fiber optic lines connection,

Technical Parameters:

Nominal work wave-length: 850nm, 1310nm, 1550nm

Protection level: IP65

Work Temperature: -45℃-+85℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure: 70~106 KPa

Insertion loss: ≤0.2dB

Return loss:≥45dB (PC),55dB(UPC),60dB(APC)

Isolation resistance(between frame and protection grounding):>1000 MΩ/500V(DC)

Features:

High intensity and anti-erosion performance

Able to counter abrupt climate change and extreme environment

Capacity can be flexibly customized as required

Installation is quick and convenient

Built-in direct splice unit is capable for providing direct connection function.

Perfect design of fiber wiring routing could facilitate management and maintenance of fibers

With secure and reliable fastening and grounding protection devices for the optic fiber

Applicable to strap-shaped and non-strap shaped fibers

Order Information:
