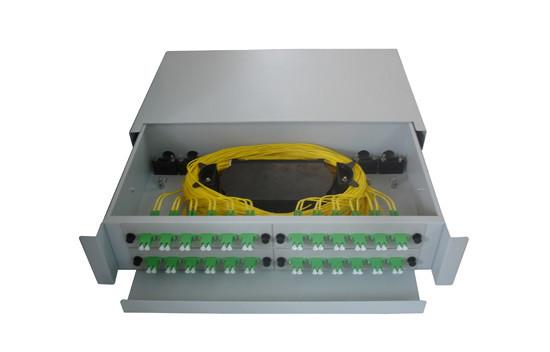

48/96 port fiber optic patch panel, 2U slide rack mount ODF

fiber optic distribution box is designed for Slidable Rack-mount.It has aluminum sliding fittings with self-locking functions prevent the drawer from falling when moved; 19-inch rack mount for ST, SC, LC, MTRJ, FC adapters. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.

Application:
Fiber to the home (FTTH)

Telecommunications subscriber loop
LAN/WAN

CATV

Features:

Suitable for ribbon and single fiber
Front mark on the plate is easy for identification and operation
Can be used in 19'', 23'' standard distribution frame
Standard size, can be rackmount and wallmount
Splice tray inside changeable
Various panel plate to fit different adapter interface

Order information:
