    High Stability Cwdm Passive Multiplexer 100GHz Dense FC SC LC ST In Out Connector

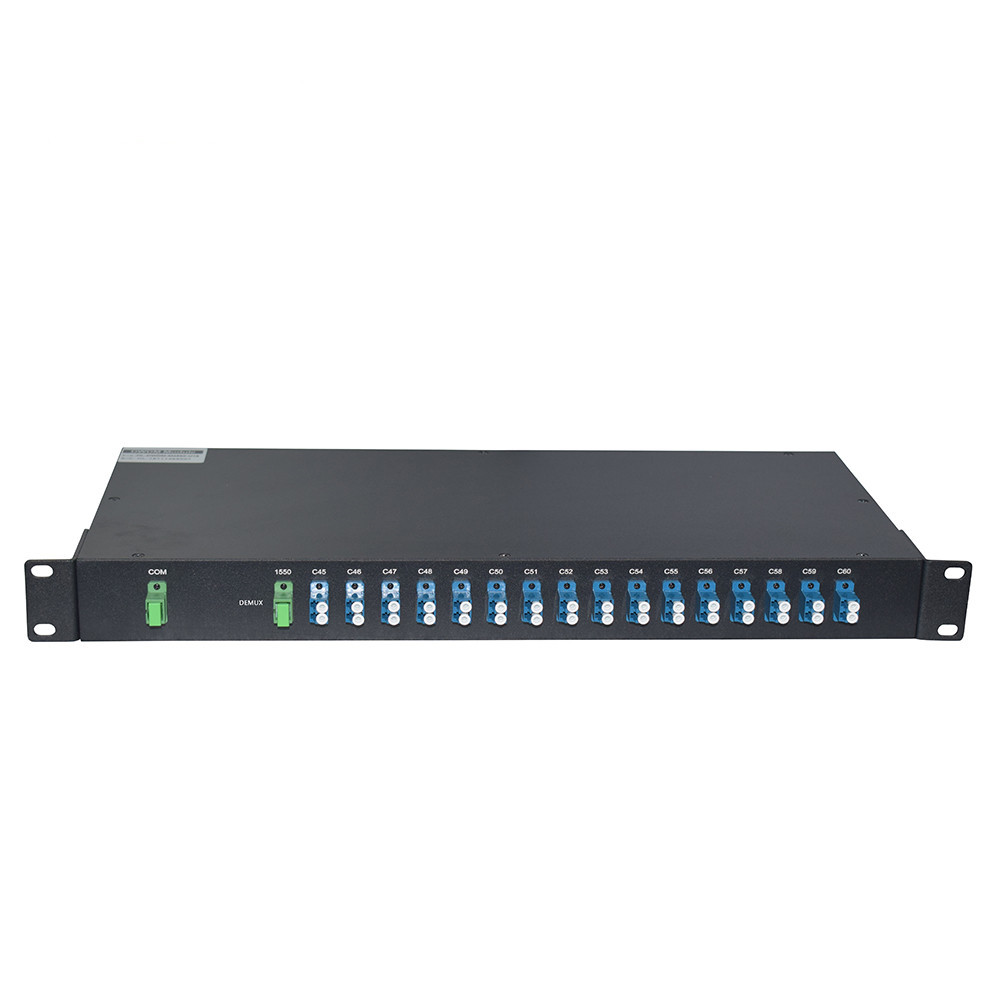

    100GHz Dense Wavelength Division Multiplexer DWDM Module(4,8,16 Channel)


    100GHz dense wavelength division multiplexer (DWDM) utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add and drop at the ITU wavelengths. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path . It can be used for wavelength add/drop in telecommunication network system


    FeaturesApplications
    Low Insertion LossChannel Add/Drop
    Wide pass bandDWDM Network
    High channelWavlength Routing
    High stability and reliabilityCATV fiberoptic System
    Epoxy free on optical pathFiber optical amplifier

    Performance Specifications

    Parameter4-Channel8-Channel16-Channel
    MuxDemuxMuxDemuxMuxDemux
    Channel Wavelength(nm)ITU 100GHz Grid
    Channel Spacing(GHz)100
    Channel Passband (@-0.5dB bandwidth(nm)>0.25
    Insertion Loss(dB)≤1.8≤3.7≤5.5
    Channel Uniformity(dB)≤0.6≤1.0≤1.5
    Channel Ripple(dB)<0.3
    Isolation(dB)AdjacentN/A>30N/A>30N/A>30
    Non-adjacentN/A>40N/A>40N/A>40
    Insertion Loss Temperature Sensitivity(dB/℃)(dB/℃)<0.005
    Wavelength Temperature Shifting (nm/℃)<0.002
    Polarization Dependent Loss(dB)<0.1<0.1<0.15
    Polarization Mode Dispersion(ps)<0.1
    Directivity(dB)≥50
    Return Loss(dB)≥45
    Maximum Power Handling(mW)300
    Opterating Temperature(℃)-5~+75
    Storage Temperature (℃)-40~+85
    Package dimension(mm)A: L100×W80×H10
    L120×W80×H18
    L141×W115×H18

    1,Above specifications are for devices without connector.

    2,Specifications may change without notice.
