Large Span ADSS Bulk Fiber Optic Cable 2-72 Cores Non Metallic Stranded Looose Tube

ADSS Aerial Stranded Self Supporting Power Transmisson Line Cable

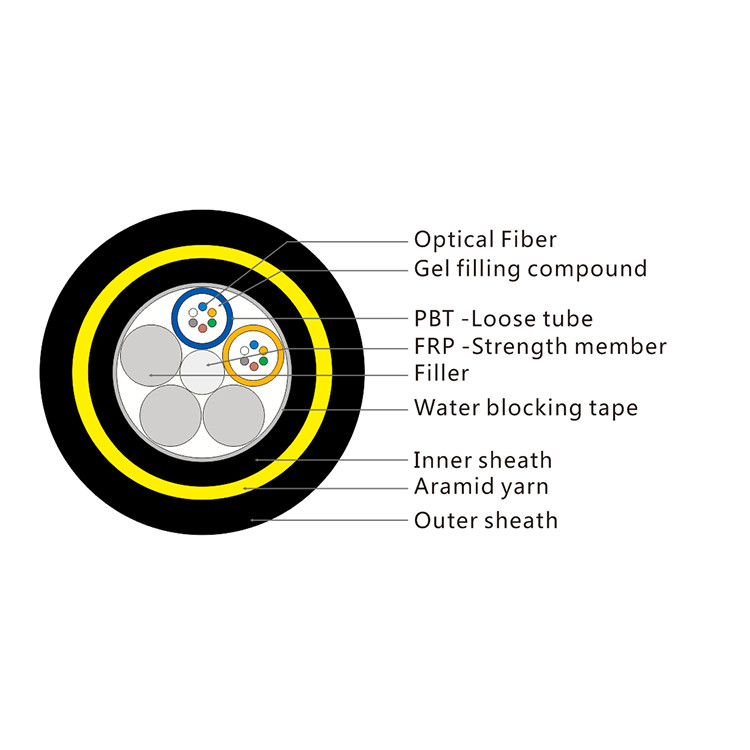

ADSS cable is loose tube stranded. Fibers, 250um, are positioned into a loose tube made of high modulus plastics.
The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP
(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.
After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath.
After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is
completed with PE or AT (anti-tracking) outer sheath.

Characteristics:
Two jacket and stranded loose tube design. Stable performance and compatibility with all common fiber types
Can be installed without shutting off the power, mainly installed at existing 220kv or lower voltage power lines.
Excellent AT performance.The maximum inductive at the operating point of AT sheath can reach 25 KV.
Aramid yarn strength member ensure tensile strength,good performance and temperature.
Crush resistance and flexibility.
PSP enhancing moisture-proof.
Small diameter,light weight and friendly installation.
Long span lenths and the largest span is over 1000m.

Parameters:

Nominal design parameters

NO. of fibers	6	12	24	48	72	96	144
No. of tubes	1	2	4	4	6	8	12
Filler rod	5	4	2	2	0	0	0
fibers per tube	6	6	6	12	12	12	12
Nom. tube diameter (±0.2mm)	2	2	2.0	2.0	2.0	2.0	2.0
Nom. diameter (±0.5mm)	12.2	12.2	12.2	12.2	12.2	14.0	16.0
Loose tube	Material		PBT		Color	Standard spectrum
Filler rod	Material		PP		Color	Black
Maximum tensile strength	4000N
Maximum crush load	3000N/100mm
Minimun bending radius	10D
Span length	100m - 120m
Out sheath material	PE
Temperature range	-20℃ ~ 70℃

Fiber characteristics

Fiber type	Unit	SM G652D	MM 50/125	MM 62.5/125
Condition	mm	1310/1550	850/1300	850/1300
Attenuation	dB/km	≤0.36/0.24	≤3.0/1.5	≤3.0/1.5
Cladding diameter	um	125±1	125±1	125±1
Cladding non-circularity	%	≤1.0	≤1.0	≤1.0
Coating diameter	um	242±7	242±7	242±7

Package

Packing material: Wooden drum.

Packing length: 2km per drum or customization.
