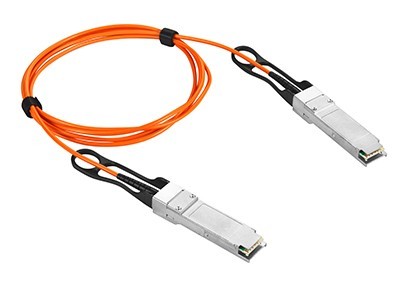

QSFP+ AOC 40G, QSFP+ to QSFP+ Active Optical Cable (AOC)

Description:

UNIFIBER 40G QSFP+ AOC series contain QSFP+ to QSFP+ AOC,QSFP+ to 4*SFP+ AOC, which is in compliant with MSA QSFP+,IEEE802.3 and sff-8431.Low power consumption, small volume and high speed, which is beneficial to increase capacity of data center, improve port density and reduce power consumption.Mainly used in Data Center internal network, Data Center interconnection...

Features:

* Full duplex 4 channel 850nm parallel active optical cable
* Transmission data rate up to 10.3Gbit/s per channel
* SFF-8436 QSFP+ compliant
* Hot pluggable electrical interface
* Differential AC-coupled high speed data interface
* 4 channels 850nm VCSEL array
* 4 channels PIN photo detector array
* Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF
* Low power consumption<1.5W
* Operating case temperature 0°C to +70°C
* 3.3V power supply voltage
* RoHS 6 compliant

Unifiber, a Hi-Tech company specialized in developing and manufacturing optical fiber products. Based on strong hardware development, we are offering the most cost-effective cabling solutions on optical networking, data center, FTTx and OEM solution.

Our featured products includes FTTA Waterproof Connectors, indoor/outdoor armored cable assembly, Pre-terminated Multifiber Cables, FTTH flat drop patch cable, LC Uniboot, 6~12 fiber pigtails and MTP/MPO series. We can also provide adapter, attenuator, fused coupler, PLC Splitter, WDM and various of patch panel, terminal box, ODF and tool series products..

Providing the highest quality products and services is always the most important principle to Unifiber, All our products are subjected to strict test according to BELLCORE standard and fully RoHS compliant. Through the efforts of our team, Unifiber has obtained a widespread acknowledgement, Our products continue to enjoy growing acceptance both in China and abroad.
