    8 way Optical PLC Splitter Metal LGX module SC/APC Connector

    Ask Lasest Price
    Brand Name : UNIFIBER
    Model Number : 8 way Optical PLC Splitter Metal LGX module
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000pcs/day
    Delivery Time : 5~8 business days
    • Product Details
    • Company Profile

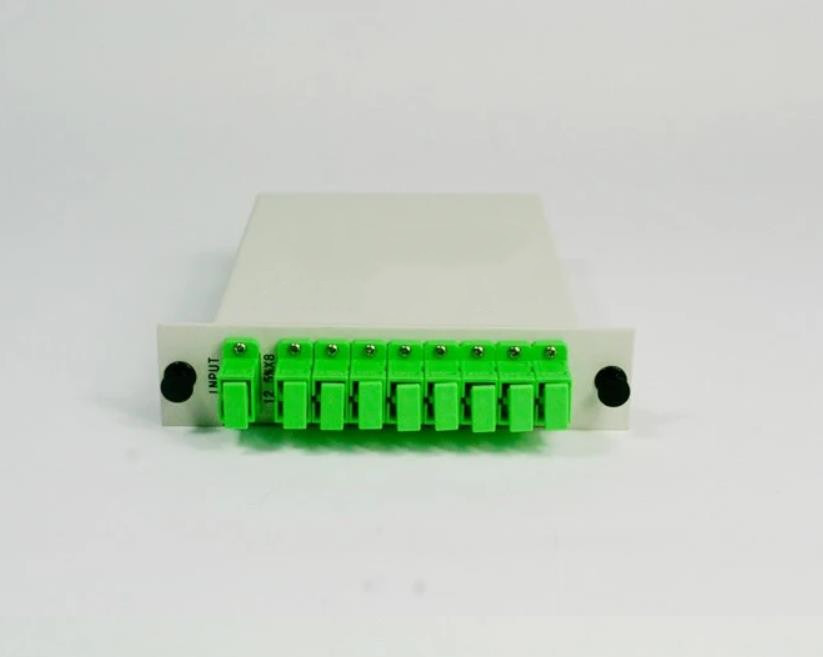

    8 way Optical PLC Splitter Metal LGX module SC/APC Connector

    8 way Optical PLC Splitter Metal LGX module SC/APC Connector is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.UNIFIBER provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.


    FEATURES
    Uniform power splitting

    High reliability

    Low Insertion loss and Low PDL
    Excellent environmental stability
    Compact size and various package


    APPLICATION
    FTTx Systems & CATV System
    LAN,WAN and Metro Networks

    Passive Optical Networks (PON)


    Specification

    Parameters
    Parameters1×21×41×81×161×321×641×128
    Operating Wavelength(nm)1260~1650
    Fiber TypeG657A1 or customer specified
    Insertion Loss (dB)(P/S Grade)3.8/4.07.1/7.310.2/10.513.5/13.716.5/16.920.5/21.023.8/24.2
    Loss Uniformit(dB)0.40.60.81.21.522.5
    Polarization Dependent Loss(dB)0.20.20.20.250.30.350.4
    Return Loss(dB)(P/S Grade)55/5055/5055/5055/5055/5055/5055/50
    Directivity(dB)55555555555555
    Wavelength Dependent Loss(dB)0.30.30.30.50.50.50.5
    Temperature Stability (-40~85℃)(dB)0.40.40.40.50.50.50.5
    Operating Temperature(℃)-40~+85
    Storage Temperature(℃)-40~+85
    Device Dimension(mm)40×4×440×4×440×4×450×7×450×7×460×12×4N/A
    Module Dimension(mm)100×80×10120×80×18141×115×18
    Mini-Module Dimension(mm)50×7×460×12×480×20×6100×40×6N/A
