Strengthen Polymer Plastic Boltless Fiber Optic Box Mechanical Sealing With Rubber Protection

Ask Lasest Price
Brand Name :	UNIFIBER
Certification :	ROHS
Payment Terms :	L/C, T/T
Delivery Time :	3~5 business days

Add to Cart

Product Details
Company Profile

Strengthen Polymer Plastic Boltless Fiber Optic Box Mechanical Sealing With Rubber Protection

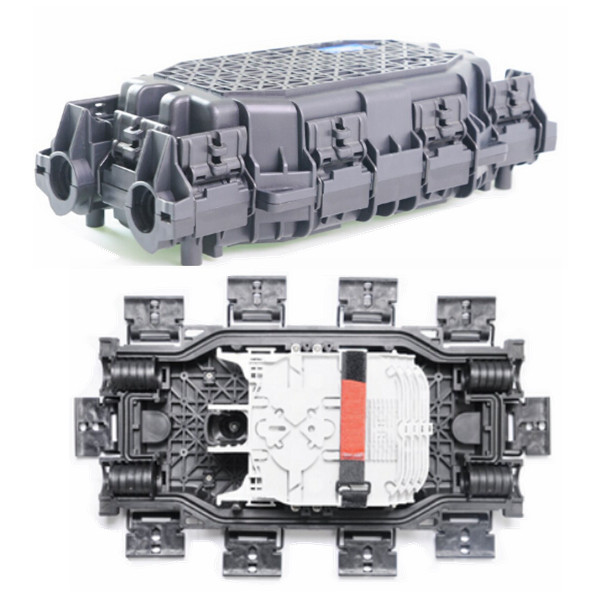

Description This Fiber optic splice closure is able to hold up to 96 splicing points,the fully rugged design enable it to work in the harshest environment,the boltless locking system facilitate the installation in a large scale. It is suitable for aerial,direct buried,pipeline,wall mounted,manhole and handhole installation. 4 cable entrance supports 2 cables entry from left and 2 cables entry from right side.

Features ● Wate-proof design with IP-68 protection level ● Boltless design with no tools needed for open and close ● Impact test:IK10,Pull Force:100N,Full rugged design ● All stainless metal plate and anti-rusting bolts,nuts. ● Maximum splice capacity:96 fibers(4 trays x 24F) ● Suitable for the fusion splice or mechanical splice. ● Mechanical sealing with rubber protection tube.

Specification:

Model	GJS-H020
Type	Inline type
Number of Inlet/Outlet ports	4 ports
Cable Diameter	4 ports×23mm
Maximum Capacity	Bunchy: 96 fibers;Ribbon: 96 fibers
Capacity per Splice Tray	Bunchy: single layer: 12 fibers; dual layers: 24 fibers
Quantity of Splice Tray	4pcs
Body Material	Strengthen Polymer Plastic
Sealing Material	Thermoplastic rubber
Assembling method	Aerial, direct buried, pipelined, wall mounting, manhole
Dimension	370(L)×178(W)×106(H)mm
Net Weight	2.1KG
Temperature	-40℃~65℃

Main Components:

Item	Name	Usage	Quantity
1	Housing (Bottom)	To protect splices of fiber optic cables	1pc
2	Housing (Cover)	To protect splices of fiber optic cables	1pc
3	Splice Tray	To fix Fiber Splice Protective Sleeves	Max. 4pcs
4	Plug	To seal empty ports	4pcs

Standard Accessories:

Item	Name	Usage	Quantity
5	Fiber Splice Protective Sleeves	To protect fiber splices	Same as capacity
6	Nylon Tie	To fix buffer tubes with fibers inside	8pcs
7	Insulation Tape	To enlarge cable diameter for fixation	1 roll
8	Sealing Tape	To enlarge cable diameter for sealing grommet	1 roll
9	Hanging Hook	For aerial installation	2pcs
10	Grounding Wire	To connect with grounding device	1pc
11	Abrasive Cloth	To polish fiber optic cable	1pc
12	Labelling Paper	To label fibers	1 set
13	M6 Wrench	To screw bolts of housing	1pc
14	Hose Clamp	To fix fiber cables	4pcs
15	Steady		4pcs
16	Ring	To seal cables at	8 sets

Optional Accessories:

Item	Name	Usage	Quantity
1	Valve	To perform pressure and sealing testing	1pc
2	Grounding Device	To derive metallic components of fiber cable	1 set
3	Buffer Tube	To protect fibers and be fixed on splice trays	specified
4	Desiccant	To desiccate air in FOSC after sealing	1 bag
