    Inline Type Fiber Optic Fusion Splice Closure 4 In 4 Out Bunchy 96F Ribbon 144F

    Ask Lasest Price
    Brand Name : UNIFIBER
    Certification : ROHS
    Payment Terms : L/C, T/T
    Delivery Time : 3~5 business days
    • Product Details
    • Company Profile

    Inline Type Fiber Optic Fusion Splice Closure 4 In 4 Out Bunchy 96F Ribbon 144F

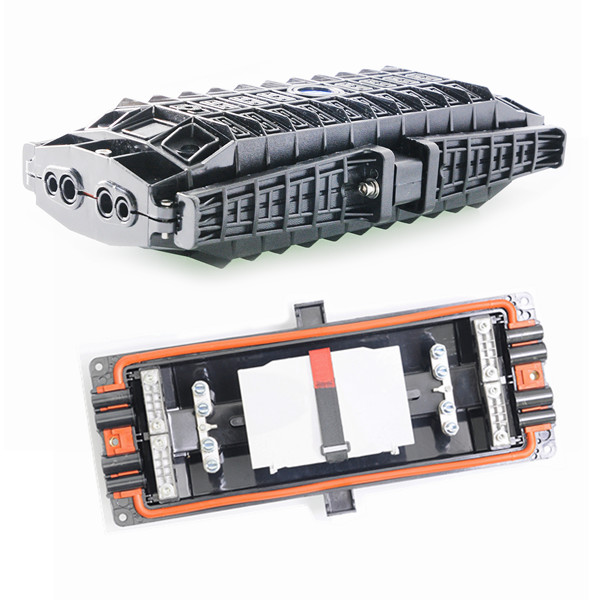

    Fiber Optic Fusion Splice Closure, 4 in and 4 out,Bunchy 96F, Ribbon 144F ,1~4Pieces 24fiber splice tray. Description Fiber optic closure is a passive component which can provide a great protection for fiber splicing point. Aerially assembling, pipeline assembling and buried underground are all available. The Inline type closure is also called Horizontal closure. The input and output are on the both sides. Inline closure is more suitable for backbone application. Unifiber provides various shapes closure of Inline type. All the closures we offered are with a great sealing performance. High quality plastic material also ensures the durability whether the closure is in air, in pipeline or buried underground.
    Features ● Easy to assemble ● Protection level reaches IP68 ● High Quality plastic body material ensure the durability ● Suitable for Φ5mm~Φ20mm cables ● Aerial, underground, pipeline,man-holes,hand-holes assembling ● Adapt to the ambient temperature from -40℃ to +65℃
    Specification
    ModelGJS-H018GJS-H016GJS-H013GJS-H009
    TypeInline Type(Horizontal Type)Inline Type(Horizontal Type)Inline Type(Horizontal Type)Inline Type(Horizontal Type)
    Dimension413mmx160mmx88mm605mmx215mmx175mm605mmx215mmx120mm470mmx180mmx125mm
    Number of Splice Trays1~4 Pieces(24F/tray)1~6 Pieces(48F/tray)1~3 Pieces(48F/tray)1~4 Pieces(24F/tray)
    Number of Inlet/Outlet Ports4 Pieces(2 In + 2 Out)4 Pieces(2 In + 2 Out)4 Pieces(2 In + 2 Out)6 Pieces(3 In + 3 Out)
    Diameter of Fiber CableΦ8mm~Φ16mmΦ8mm~Φ20mmΦ8mm~Φ20mmΦ5mm~Φ20mm
    Max Capacity(Cores)Bunchy:96F, Ribbon:144FBunchy:288F, Ribbon:384FBunchy:144F, Ribbon:288FBunchy:96F, Ribbon:144F
    Operation Temperature-40~65 (°C)-40~65 (°C)-40~65 (°C)-40~65 (°C)
    Storage Temperature-40~85 (°C)-40~85 (°C)-40~85 (°C)-40~85 (°C)
    ModelGJS-H008GJS-H007GJS-H005GJS-H001
    TypeInline Type(Horizontal Type)Inline Type(Horizontal Type)Inline Type(Horizontal Type)Inline Type(Horizontal Type)
    Dimension395mmx195mmx130mm450mmx220mmx110mm450mmx220mmx160mm390mmx210mmx129mm
    Number of Splice Trays1~4 Pieces(24F/tray)1~4 Pieces(24F/tray)1~8 Pieces(24F/tray)1~4 Pieces(24F/tray)
    Number of Inlet/Outlet Ports6 Pieces(3 In + 3 Out)8 Pieces(4 In + 4 Out)6 Pieces(3 In + 3 Out)6 Pieces(3 In + 3 Out)
    Diameter of Fiber CableΦ5mm~Φ20mmΦ5mm~Φ20mmΦ5mm~Φ23mmΦ5mm~Φ16mm
    Max Capacity(Cores)Bunchy:96F, Ribbon:144FBunchy:96F, Ribbon:144FBunchy:192F, Ribbon:432FBunchy:96F, Ribbon:144F
    Operation Temperature-40~65 (°C)-40~65(°C)-40~65 (°C)-40~65 (°C)
    Storage Temperature-40~85 (°C)-40~85(°C)-40~85 (°C)-40~85 (°C)

    Inline Type Fiber Optic Fusion Splice Closure 4 In 4 Out Bunchy 96F Ribbon 144F


    Inline Type Fiber Optic Fusion Splice Closure 4 In 4 Out Bunchy 96F Ribbon 144FInline Type Fiber Optic Fusion Splice Closure 4 In 4 Out Bunchy 96F Ribbon 144F
