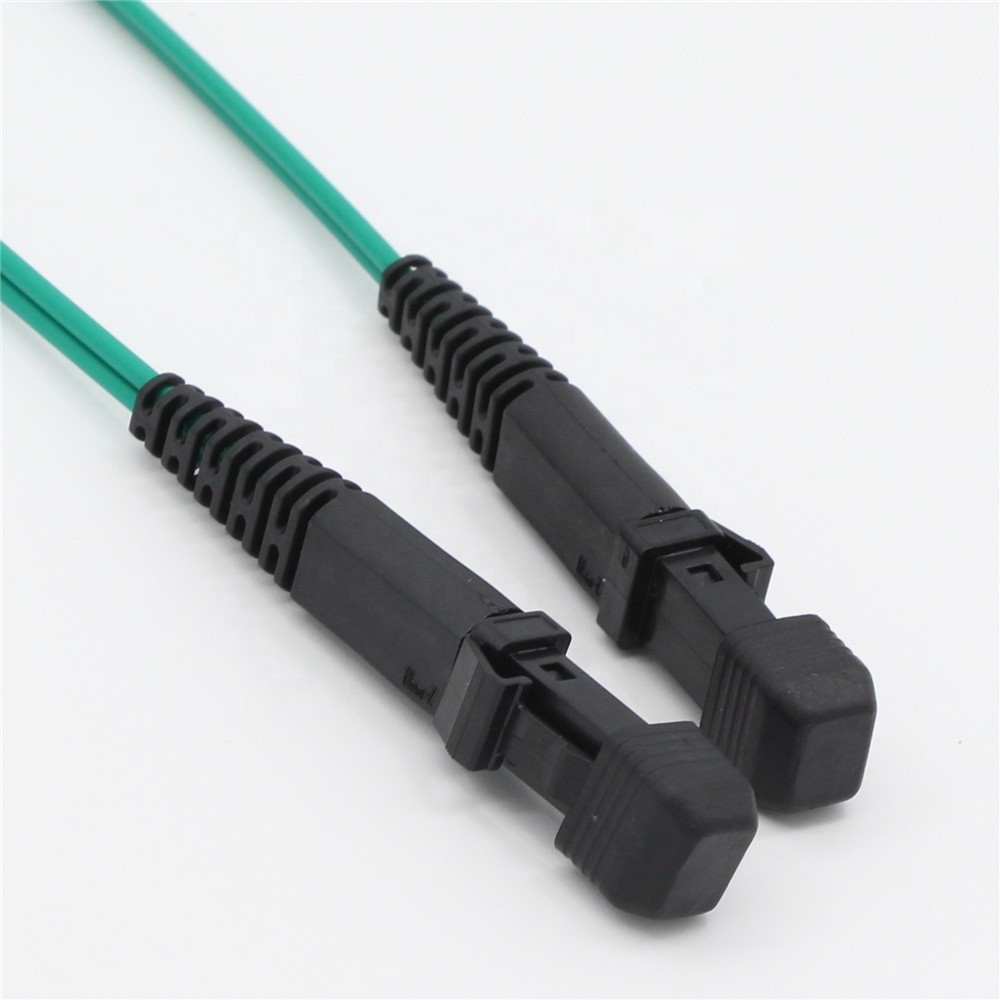

MTRJ female to MTRJ female Fiber Patch Cord,Multimode 62.5/125um Aqua LSZH Jacket

MTRJ fiber optic patch cord includes mtrj single mode or multimode,simplex or duplex fiber optic patch cord with 9/125um,50/125um,62.5/125um indoor fiber optic cable. the usual polishing type is pc,upc and apc.

MTRJ Fiber Optic Patch Cord is a duplex fiber optic patch cord with both fibers in a single polymer ferrule. It uses pins for alignment and has male and female versions. Multimode only, field terminated only by prepolished/splice method. MTRJ Fiber Optic Patch Cord is a difficult fiber optic patch cord to test, as most test sets do not allow direct adaptation to the patch cord.

MTRJ Fiber Optic Patch Cord is a type of fiber optic cable that has an endpoint similar to the RJ-45 patch cord endpoint found in Ethernet connections. MTRJ Fiber Optic Patch Cord are designed to snap into the Ethernet port of a computer, modem, or wireless router and provide that computer or network with extremely fast data transfer rates. MTRJ Fiber Optic Patch Cord are usually designed for multi-mode optical fibers but can be used for single mode optical fibers as well.

MTRJ Fiber Optic Patch Cord are approximately 2.45 mm x 4.4 mm in size and are standardized by the International Electrotechnical Commission. We have good experience in MTRJ Fiber Optic Patch Cord testing when making MTRJ patch cords or MTRJ pigtails. The single mode or multimode MT-RJ products available from Telecomposer are used in two fiber applications and are well suited for high density applications.

The MT-RJ Fiber Optic Patch Cord utilize precision molded MT ferrules pioneered by NTT, together with precision metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MT-RJ is reliable and simple to terminate.
The MT-RJ Adapter comes standard in black, with additional colors available upon request. An optional MT-RJ Adapter with SC style housing is also available for applications where SC footprint is required.

APPLICATION

1. Telecommunications

2. CATV, LAN, MAN, WAN, Test &Measurement

3. Military industry

4. Medical

FEATURES

1. Low insertion loss and back reflection loss

2. Ferrule end surface pre-domed

3. Excellent mechanical endurance

4. Good in repeatability

5. Good in exchange

6. Green Production, CE, RoHS Standard

Parameters
