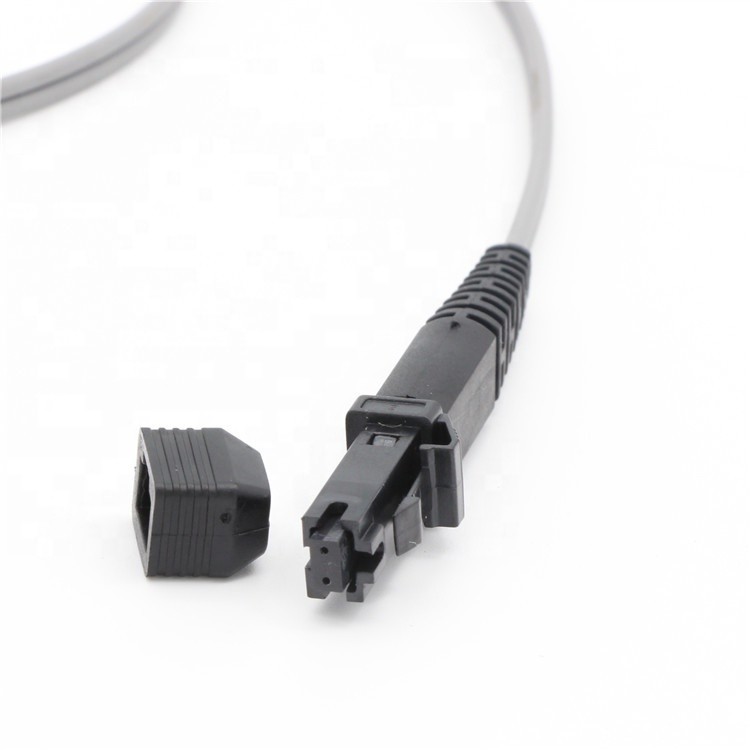

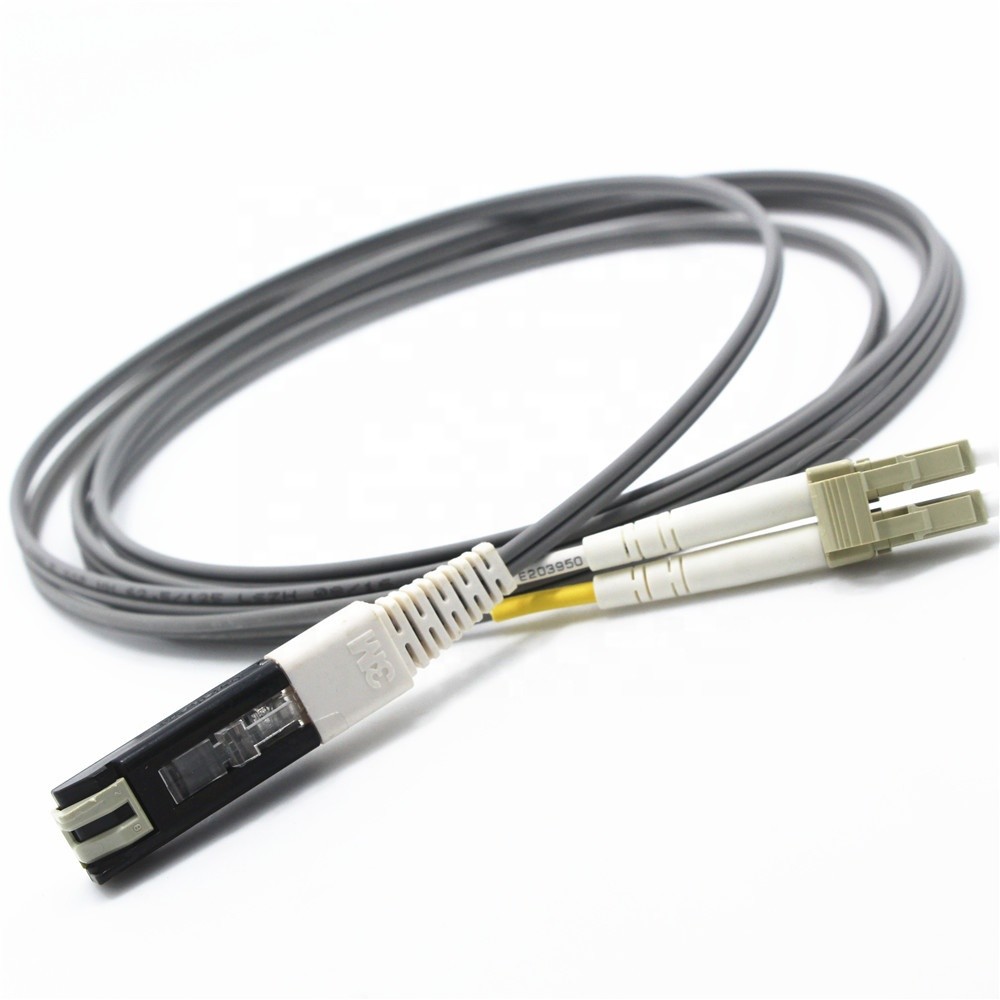

3M Volition VF45 -LC/SC/ST fiber patch cord, Singlemode, with Glass
polymer (GGP) high-strength coated.
Brief Introduction
VF45 fiber patch cords easy to insert like RJ-45 plug. Volition
VF-45 plug and fiber optic patch cables are used in the fiber to
desk solutions . The VF-45 plugs and recetacles work like 8-pin
modular jacks for fiber- optic applications. The VF-45 receptacle
can be terminates on-site in the telecommunications patch panel and
in the building horizontal cabling, requiring less than 1 minut to
terminate the two fibers.
Factory termination VF-45 plug in the jumper plug to the socket or
socket interconnection to the sending and receiving devices. VF-45
patch can have different lengths with ST and SC mixed configuration
interface. All of the VF-45 jumper with innovative “GGP”
high-strength coated optical fiber manufacturing, has a durability
of desktop applications and tight bending radius. VF-45 optical
fiber interconnection meet to satisfy the most demanding consumers
and select TIA,IEC specification requirements. VF-45
interconnection is the core of providing affordable fiber optic
premises cabling solutions.
Characteristics:
Design of plug-type socket(without adapter)
High density interconnection
V Duplex-slot connections and injection moulded parts
RJ-45 latch
4 mechanical installation components closely
TIA
Application:
Telecom / Datacom, LANs, CATV
Fiber to the Home, Premises Distribution
Gigabit Applications (Ethernet, ATM, SONET, etc.)
Parameters
| Item | Specifications |
| Attenuation | <0.75 dB max |
| Reflection: | >20 dB max |
| Mating durability: | 500 cycle, <0.75 dB max |
| Strength of coupling: | >33N, <0.75 dB max |
| Plug cable retention: | Tensile load>66N, Side Pull>6.6N,<0.75 dB max |
| Plug flex: | 100 Cycles,±90degree,0.5kg,<0.75 dB max |
| Plug twist: | 10Cycles, ±2.5revolutions,15N, <0.75 dB max |
| Cold: | -10℃ for 96 hours, <0.3dB increase |
| Heat: | +60℃ for 14days, <0.3dB increase |
| Thermal cycling: | -10℃ to 60℃,5 Cycles, <0.3dB increase |
| Vibration: | 10 to 55 Hz, 30min. Each axis,<0.3dB increase |
| Connector style: | Crimp,Polish |
| Connector type: | VF45-LC |
