Mini Size 2x2 Singlemode Fiber Optic Splitter , Standard Fiber Optic Coupler

Ask Lasest Price
Brand Name :	UNIFIBER
Model Number :	FBT
Certification :	ROHS
Payment Terms :	L/C, T/T, Western Union
Price :	Negotiable

Add to Cart

Product Details
Company Profile

Mini Size 2x2 Singlemode Fiber Optic Splitter , Standard Fiber Optic Coupler

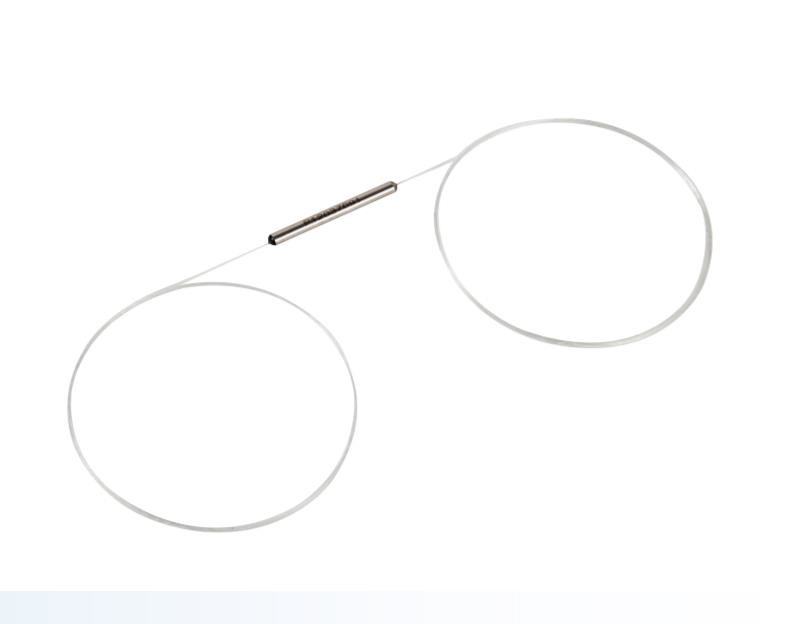

Mini size 1x2(2x2) Singlemode Standard Fiber Optic Coupler/Splitter

Mini size couplers are designed to meet the requirement of the optical modules and fiber systems where need the small coupler package size.UNIFIBER develops the mini size SSC with high stability and reliability.

Mini Size 2x2 Singlemode Fiber Optic Splitter , Standard Fiber Optic Coupler

Features

§Mini size

§Low excess loss

§Low PDL

§ High stability and reliability

Applications

§ Mini size EDFA

§Mini size transmitter/receiver module

§Optical communication systems

§ Testing instruments

Specifications

Parameter
Operating wavelength (nm)		1310 or 1550, others on request
Operating bandwidth (nm)		±15
Package size (Ф×L) mm		Ф3.0/Ф2.4×30; Ф2.4×25		Ф2.4×22; Ф2.0×18
Grade		P	A	P	A
Typical excess loss (dB)		0.10	0.15	0.15	0.25
Insertion loss (dB)	50/50	≤3.50	≤3.70	≤3.60	≤3.80
	40/60	≤4.50/2.70	≤4.80/2.90	≤4.60/2.80	≤4.90/3.00
	30/70	≤5.80/2.00	≤6.10/2.10	≤5.90/2.10	≤6.30/2.20
	20/80	≤7.70/1.25	≤8.00/1.30	≤7.80/1.30	≤8.20/1.40
	10/90	9.35~ 11.15/≤0.70	9.15~ 11.35/≤0.85	9.50~ 11.30/≤0.75	9.30~11.50/≤0.85
	5/95	12.15~ 14.35/≤0.45	11.90~ 14.60/≤0.55	12.30~ 14.50/≤0.50	12.05~ 14.75/≤0.55
	3/97	14.20~ 16.70/≤0.35	13.90~ 17.00/≤0.45	14.35~ 16.85/≤0.40	14.05~ 17.15/≤0.45
	2/98	15.85~ 18.50/≤0.30	15.50~ 19.00/≤0.35	16.00~ 18.80/≤0.35	15.65~ 19.15/≤0.40
	1/99	18.70~ 21.50/≤0.25	18.30~22.20/≤0.30	18.85~ 21.80/≤0.30	18.45~ 22.35/≤0.35
PDL (dB)		≤0.1	≤0.15	≤0.1	≤0.15
Directivity (dB)		≥50
Operating temperature (℃)		-40 ~ +85
Configuration		1×2 or 2×2
Fiber lead length		1 meter, others on request

*The above specification is without connector

*Other specifications can be made on customer request.
