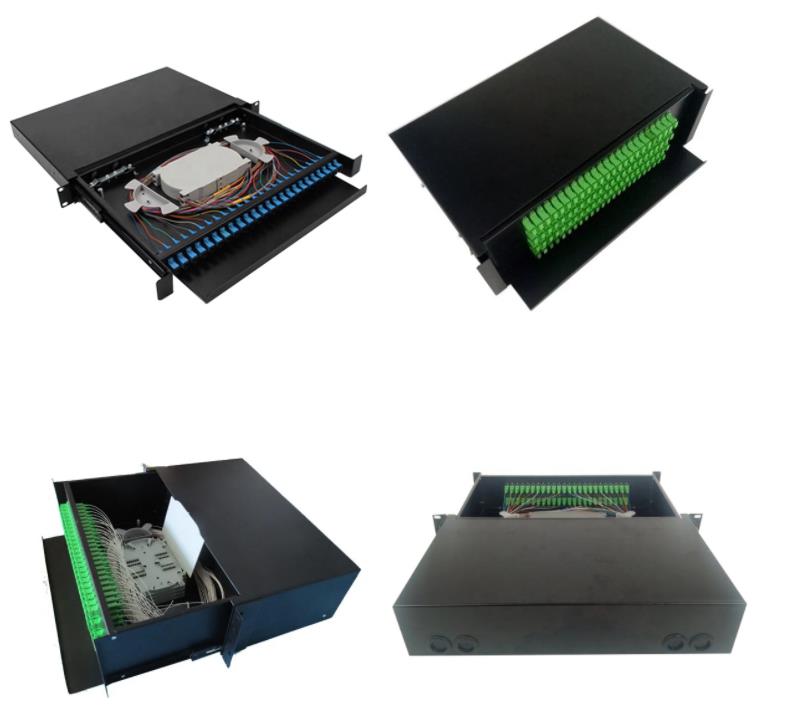

96 port fiber patch panell fiber terminal box can be applied in the branch connection of fiber termination,working as distribution box,19’’standard structure,rack mounting,available for the installation of FC,SC,ST,LC adaptors.
II,Structural features.
All property indexes are in accordance with National YD/T925—1997 Standard.
The body make use of cold rolling steel sheet Strong adhesive force, artistic and durable.
Distinctive design of 1-6 cable entrance and fiber exit of 1-24 cores assures flexibility.
Cable entrance are sealed with oil resistance NBR to increase the flexibility. Users can choose to prick the entrance and exit.
Overlapping fiber-melting tray and separate insulation earth unit make the disposition of the cores, expanding the capacity and cable-earthen flexible, convenient and safe.
III,Main technical Specifications
External Size: (length×width×height) 430x300x(1U~7U)
optical fiber winding radius: ≥40mm
extra loss of fiber tray:none
fiber length left in tray:≥1.6m
fiber capacity: 12~288 cores
working temperature: - 400C ~ + 600C
lateral pressure-resistance: 500N
shock-resistance:750N
