White Or Black Ftth Fiber Optic Patch Cable Custom Patch Leads 2.0 Mm Diameter

    Buy cheap White Or Black Ftth Fiber Optic Patch Cable Custom Patch Leads 2.0 Mm Diameter from wholesalers

    Buy cheap White Or Black Ftth Fiber Optic Patch Cable Custom Patch Leads 2.0 Mm Diameter from wholesalers
    • Buy cheap White Or Black Ftth Fiber Optic Patch Cable Custom Patch Leads 2.0 Mm Diameter from wholesalers

    White Or Black Ftth Fiber Optic Patch Cable Custom Patch Leads 2.0 Mm Diameter

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Certification : ROHS
    Payment Terms : T/T, Western Union
    Price : Negotiable
    • Product Details
    • Company Profile

    White Or Black Ftth Fiber Optic Patch Cable Custom Patch Leads 2.0 Mm Diameter

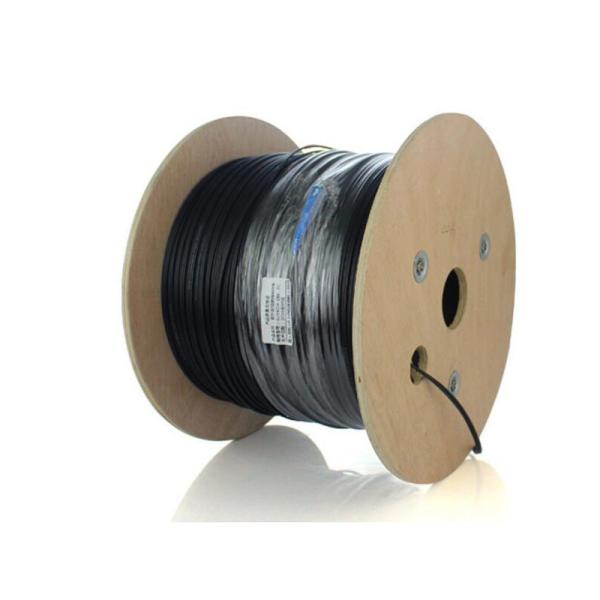

    FTTH fiber optic cables, Custom Patch Leads


    With easy accessibility to the fiber and simple installation, FTTH cable can be directly connected to the homes. It is suitable for connecting with communication equipment, and used as access building cable in premises distribution system. The optical fibers are positioned in the center. Two parallel Fiber Reinforce Plastic (FRP) strength members are placed at the two sides. Then, the cable is completed with LSZH sheath.


    APPLICATION

    FTTH network for indoor and outdoor

    Local Area Network and Building Cabling Network

    Interconnect between instruments,

    terminal box and communication


    FEATURES

    Low insertion loss, high return loss

    Available FTTH Drop cable diameters: Φ2.0*5.0mm; Φ2.0*3.0mm

    Connector Types: LC, FC, SC,ST for option

    Fiber Mode: G652D, G.657A1, G657A2, G657B3

    Ferrule Interface Type: UPC to UPC, APC to APC, APC to UPC

    Compliant to IEC standard


    Parameters

    TypeSM-UPCSM-APCMM-UPC
    TypicalMAXTypicalMAXTypicalMAX
    Insertion loss≤0.1≤0.3dB≤0.15≤0.3dB≤0.05≤0.3dB
    Return loss≥50dB≥60dB≥30dB
    Durability500 mating cycles
    Working temperature-40 to + 85
