    LC UPC To LC UPC Fiber Optic Cable Patch Cord Uniboot Duplex OS2 Single Mode

    LC UPC to LC UPC Uniboot Duplex OS2 Single Mode PVC (OFNR) 2.0mm BIF Fiber Optic Patch Cable

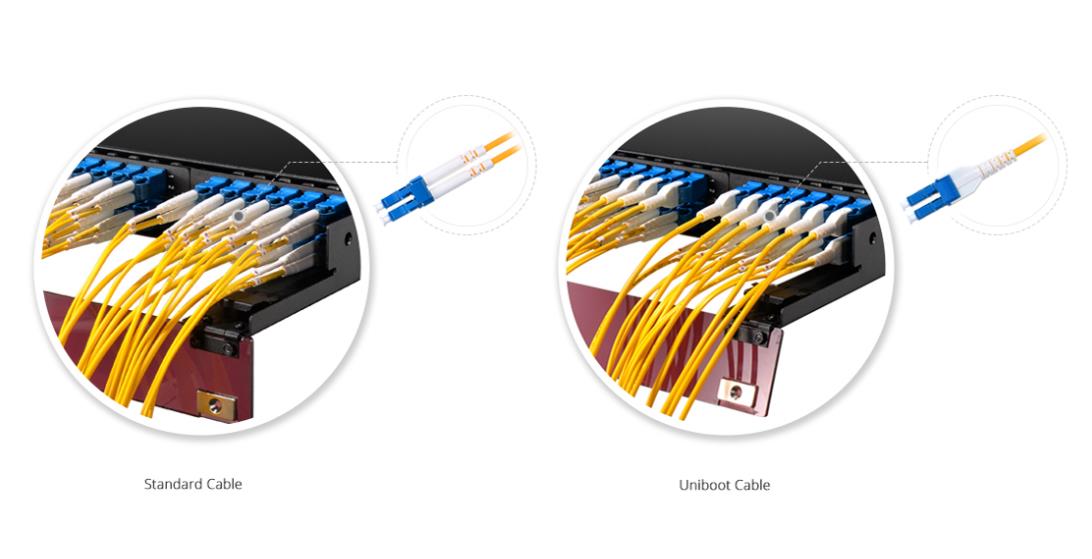

    The LC-LC Uniboot connector allows two fibers to be carried through a 2.0mm single jacket, used in high-density fiber patching in data centers which need space saving and reduce cable management troubles.

    APPLICATIONS

    Data Centers

    Local Area Networks

    High-Density Applications

    Interconnects

    Cross-connects


    FEATURES

    Uniboot with a Single Housing

    Unique Push-Pull Design and Function

    Easy to Assemble and Use

    Low Insertion Loss and Back Reflection

    High Repeatability and Reliability

    Telcordia GR-326 Qualified


    Parameters

    ModeSingle modeMultimode
    PolishUPCAPCPC
    Insertion Loss≤0.30dB≤0.20dB≤0.20dB
    Return Loss≥50dB≥60dB≥30dB
    Test Wavelength1310/1550nm850/1310nm
    Durability(500 Matings)≤0.2dB
    Operating Temperature-40~+60
    Storage Temperature-45~+85
    Fire ResistantIEC 60794-2-30
    Standards-CompliantROHS,IEC and GR-326

    Fiber typeSingle mode:9/125-G652D9/125-G6559/125-G657A,G657A29/125-G657B3
    Multimode:50/125-OM262.5/125-OM150/125-OM350/125-OM450/125-OM5
    Fiber BrandYOFC, Corning, Sumitomo, Fujikura
    ConnectorSC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
    Cord typeSimplex ,Duplex
    Cable diameter0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
    Cable jacketPVC, OFNR, LSZH, OFNP
    length(M)0.5m,1m,2m,5m,10m,25m,50m,100m…Customized
