2.0 Mm Single Mode Fiber Patch Cord Switchable Uniboot Duplex OS2 PVC OFNR

    Buy cheap 2.0 Mm Single Mode Fiber Patch Cord Switchable Uniboot Duplex OS2 PVC OFNR from wholesalers

    Buy cheap 2.0 Mm Single Mode Fiber Patch Cord Switchable Uniboot Duplex OS2 PVC OFNR from wholesalers
    • Buy cheap 2.0 Mm Single Mode Fiber Patch Cord Switchable Uniboot Duplex OS2 PVC OFNR from wholesalers
    • Buy cheap 2.0 Mm Single Mode Fiber Patch Cord Switchable Uniboot Duplex OS2 PVC OFNR from wholesalers
    • Buy cheap 2.0 Mm Single Mode Fiber Patch Cord Switchable Uniboot Duplex OS2 PVC OFNR from wholesalers

    2.0 Mm Single Mode Fiber Patch Cord Switchable Uniboot Duplex OS2 PVC OFNR

    Ask Lasest Price
    Brand Name : UNIFIBER-OEM
    Certification : ROHS
    Payment Terms : Western Union, T/T
    Price : Negotiable
    • Product Details
    • Company Profile

    2.0 Mm Single Mode Fiber Patch Cord Switchable Uniboot Duplex OS2 PVC OFNR

    LC UPC to LC UPC Switchable Uniboot Duplex OS2 Single Mode PVC (OFNR) 2.0mm Fiber Optic Patch Cable

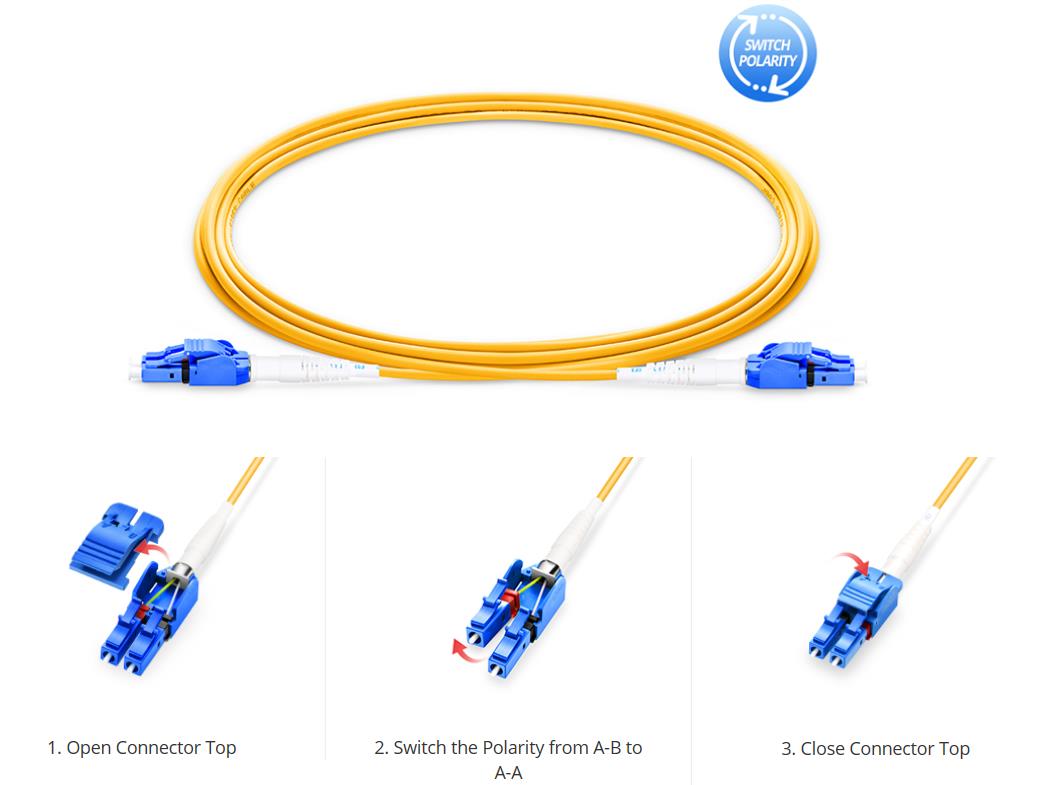

    The switchable uniboot cable is a unique design that allows to switch polarity without using any tools. It is commonly used in data centers where cable counts are high and space is limited. 0.2dB IL SENKO LC switchable connector allows the fiber polarity to be switched without having to re-terminate the connectors. Besides, all cables use Corning bend insensitive fiber to withstand stress from bending, twisting, pinching and stretching, without experiencing severe performance loss.

    APPLICATIONS

    Data Centers

    Local Area Networks

    High-Density Applications

    Interconnects

    Cross-connects


    FEATURES

    Uniboot with a Single Housing

    Unique Push-Pull Design and Function

    Easy to Assemble and Use

    Low Insertion Loss and Back Reflection

    High Repeatability and Reliability

    Telcordia GR-326 Qualified


    Parameters

    ModeSingle modeMultimode
    PolishUPCAPCPC
    Insertion Loss≤0.30dB≤0.20dB≤0.20dB
    Return Loss≥50dB≥60dB≥30dB
    Test Wavelength1310/1550nm850/1310nm
    Durability(500 Matings)≤0.2dB
    Operating Temperature-40~+60
    Storage Temperature-45~+85
    Fire ResistantIEC 60794-2-30
    Standards-CompliantROHS,IEC and GR-326

    Fiber typeSingle mode:9/125-G652D9/125-G6559/125-G657A,G657A29/125-G657B3
    Multimode:50/125-OM262.5/125-OM150/125-OM350/125-OM450/125-OM5
    Fiber BrandYOFC, Corning, Sumitomo, Fujikura
    ConnectorSC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC
    Cord typeSimplex ,Duplex
    Cable diameter0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm
    Cable jacketPVC, OFNR, LSZH, OFNP
    length(M)0.5m,1m,2m,5m,10m,25m,50m,100m…Customized
