LSZH ruggedized flat 2 core duplex multimode fiber optic cable,with added protective layer making it more rugged

Ask Lasest Price
Brand Name :	UNIFIBER-OEM
Model Number :	GJFJBV
Certification :	ROHS,CE,UL
Payment Terms :	L/C, T/T, Western Union
Price :	Negotiable
Supply Ability :	100km/day
Delivery Time :	3-5days

Add to Cart

Product Details
Company Profile

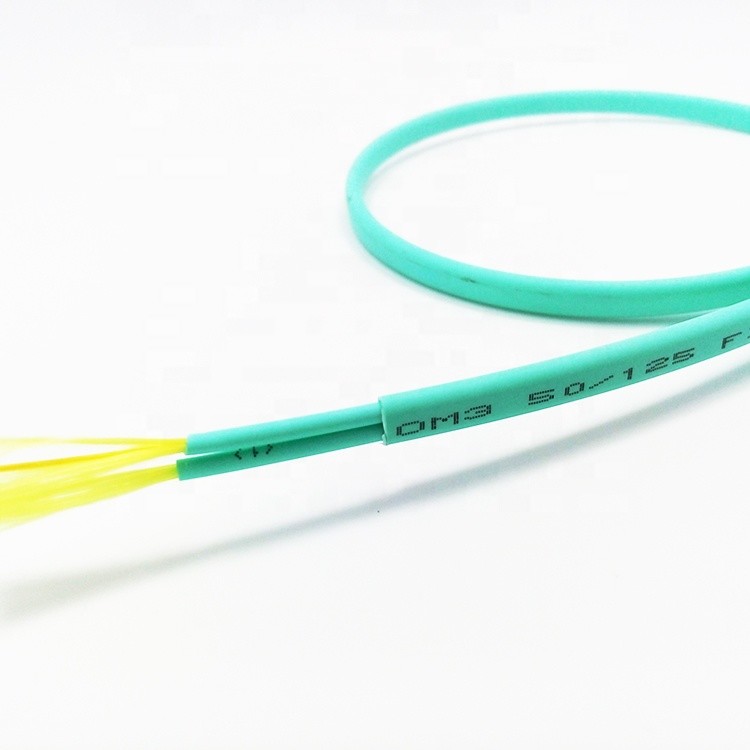

LSZH ruggedized flat 2 core duplex multimode fiber optic cable,with added protective layer making it more rugged

LSZH ruggedized flat 2 core duplex multimode fiber optic cable,with added protective layer making it more rugged

ruggedised duplex patch cable that comprised of an additional outer LSZH sheath over a 3mm LSZH duplex patch cable. This provides additional protection and better tensile strength which is suitable to be used in a more demanding environment or with a longer length required for patching. The flame retardant Low Smoke Zero Halogen outer jacket provides not only the flameretardant capability, but also emits low smoke and nontoxic gas when it is burnt. This means the cable is safe to be used in the indoor and enclosed environment.

Features:

Two single-fiber as basic unit.flat twin configuration;
Flexible or out sheath independent strength member;
Excellent mechanical and environmental performance.

High strength Aramid yarn strength members for ease of handling.
Easy to strip.
LSZH overall jacket.

Application:
Adopted to indoor distribution..
As pigtail of communication equipment.
Suitable for communication equipment served.
Can be installed conveniently.

Parameters:·

Cable construction details :

Technical Parameters:
Out Diameter(MM)	3.0×5.0			Weight(KG)	56
	3.2×5.6				68
	5.0×8.0				87
Storage temperature(℃)			-20+60
Min Bending Radius(mm)		Long term	10D
Min Bending Radius(mm)		Short term	20D
Min allowable Tensile Strength(N)		Long term	300
Min allowable Tensile Strength(N)		Short term	800
Crush Load (N/100mm)		Long term	500
Crush Load (N/100mm)		short term	1000

Standard color of fiber and tube

Standard Colour Identification
No.	1	2
Color	Yellow	White

Fiber characteristic

Fiber style		Unit	SM G652	SM G652D	MM 50/125	MM 62.5/125	MM OM3-300
condition		nm	1310/1550	1310/1550	850/1300	850/1300	850/1300
attenuation		dB/km	≤	≤	≤	≤3.0/1.0	≤3.0/1.0
attenuation		dB/km	0.36/0.23	0.34/0.22	3.0/1.0	----	----
Dispresion	1550nm	Ps/(nm*km)	----	≤18	----	----	Dispresion
Dispresion	1625nm	Ps/(nm*km)	----	≤22	----	----
Bandwith	850nm	MHZ.KM	----	----	≧400	≧160	Bandwith
Bandwith	1300nm	MHZ.KM	----	----	≧800	≧500
Zero dispersion wavelength		nm	1300-1324	≧1302, ≤1322	----	----	≧ 1295, ≤1320
Zero dispresion slope		nm	≤0.092	≤0.091	----	----	----
PMD Maximum Individual Fibr			≤0.2	≤0.2	----	----	≤0.11
PMD Design Link Value		Ps(nm2*k m)	≤0.12	≤0.08	----	----	----
Fibre cutoff wavelength λc		nm	≧ 1180, ≤1330	≧1180, ≤1330	----	----	----
Cable sutoff wavelength λcc		nm	≤1260	≤1260	----	----	----
MFD	1310nm	um	9.2+/-0.4	9.2+/-0.4	----	----	----
MFD	1550nm	um	10.4+/-0.8	10.4+/-0.8	----	----	----
Numerical Aperture(NA)			----	----	0.200+/ -0.015	0.275+/-0. 015	0.200+/-0 .015
Step(mean of bidirectional measurement)		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10
Irregularities over fiber length and point		dB	≤0.05	≤0.05	≤0.10	≤0.10	≤0.10

Dicontinuity
Difference backscatter coefficient	dB/km	≤0.05	≤0.03	≤0.08	≤0.10	≤0.08
Attenuation uniformity	dB/km	≤0.01	≤0.01
Core dimater	um			50+/-1.0	62.5+/-2.5	50+/-1.0
Cladding diameter	um	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1	125.0+/-0.1
Cladding non-circularity	%	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
Coating diameter	um	242+/-7	242+/-7	242+/-7	242+/-7	242+/-7
Coating/chaffinch concentrically error	um	≤12.0	≤12.0	≤12.0	≤12.0	≤12.0
Coating non circularity	%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Core/cladding conentricity error	um	≤0.6	≤0.6	≤1.5	≤1.5	≤1.5
Curl(radius)	um	≤4	≤4	----	----	----

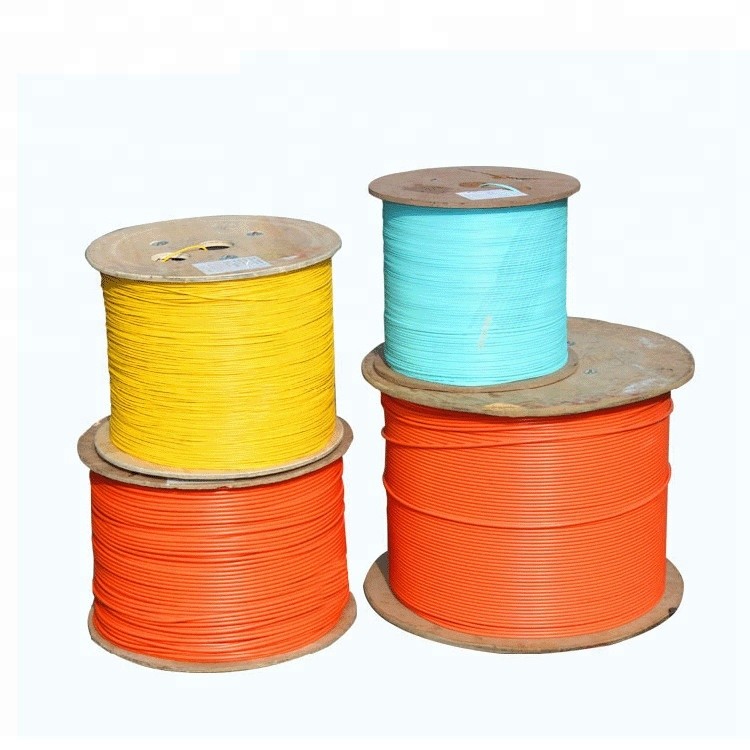

Package

1.Packing material: Wooden drum
2.Packing length: standard length of cable shall be 2 km. Other cable length is also availabler
if required by custome
