12/24/36/48/72/96/144 core fiber optic cable, singlemode/multimode/OM1/OM2/OM3/OM4/OM5 0.9mm Tight Buffer Distribution Cable

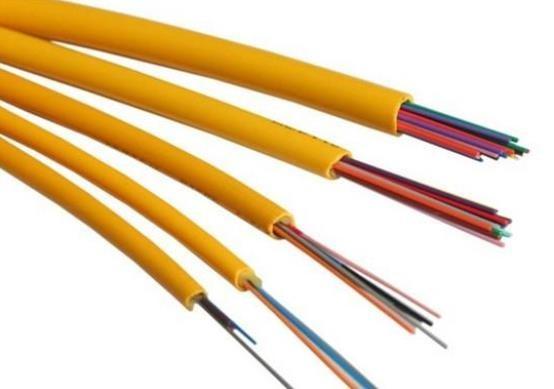

Distribution Tight Buffer Optical Cable use 12/24/36/48/72/96/144 core 900μm or 600μm flame-retardant tight buffer fiber as optical communication medium.The tight buffer fiber wrapped with a layer of aramid yarn as strength member ,then completed with a layer of PVC or LSZH material as out jacket.
Application:
Used in indoor cabling,especially used as distribution cable
Used in pigtails and patch cords
Used as interconnect lines of equipments,and used in optical connections in optical communication rooms and optical distribution frames
Features:
The mechanical characteristics of jacked meet the requirements of relevant standards
Soft,flexible,easy to lay and splice,and with big capacity data transmission
Meet various requirements of market and clients.
Good mechanical and environmental characteristics
Flame retardant characteristics meet the requirements of relevant standards
Cable Mechanical characteristic
| Items | Cable diameter | Weight |
| 2 cores | 4.0mm | 22.00kg/km |
| 4 cores | 4.0mm | 22.00kg/km |
| 6 cores | 4.0mm | 23.00kg/km |
| 8 cores | 5.0mm | 27.00kg/km |
| 10 cores | 5.5mm | 30.00kg/km |
| 12 cores | 6.0mm | 35.00kg/km |
| Storage temperature(℃) | -20+60 |
| Min Bending Radius(mm) | Long term | 10D |
Min Bending
Radius(mm) | Short term | 20D |
Min allowable
Tensile Strength(N) | Long term | 200 |
Min allowable
Tensile Strength(N) | Short term | 600 |
| Crush Load (N/100mm) | Long term | 200 |
| Crush Load (N/100mm) | short term | 1000 |
| Fiber Counts | Cable Diamter(mm) | Weight | Tensile strength(N) | Crush Resistance(N/100mm) | Minimum bending radius (mm) |
| | | | Short-term | Long-term | Short-term | Long-term | Static | Dynamic |
| 24 | 15.5±0.4 | 205 | 1500 | 500 | 1500 | 600 | 10D | 20D |
| 36 | 17.5±0.4 | 255 | 1500 | 500 | 1500 | 600 | 10D | 20D |
| 48 | 17.5±0.4 | 255 | 1500 | 500 | 1500 | 600 | 10D | 20D |
| 72 | 19.5±0.4 | 320 | 1500 | 500 | 1500 | 600 | 10D | 20D |
| 96 | 22.0±0.4 | 395 | 1500 | 500 | 1500 | 600 | 10D | 20D |
| 144 | 28.0±0.4 | 579 | 1500 | 500 | 1500 | 600 | 10D | 20D |
Fiber characteristic
| Fiber style | Unit | SM
G652 | SM
G652D | MM
50/125 | MM
62.5/125 | MM
OM3-300 |
| condition | nm | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 |
| attenuation | dB/km | ≤ | ≤ | ≤ | ≤3.0/1.0 | ≤3.0/1.0 |
| 0.36/0.23 | 0.34/0.22 | 3.0/1.0 | ---- | ---- |
| Dispresion | 1550nm | Ps/(nm*km) | ---- | ≤18 | ---- | ---- | Dispresion |
| 1625nm | Ps/(nm*km) | ---- | ≤22 | ---- | ---- | |
| Bandwith | 850nm | MHZ.KM | ---- | ---- | ≧400 | ≧160 | Bandwith |
| 1300nm | MHZ.KM | ---- | ---- | ≧800 | ≧500 | |
| Zero dispersion wavelength | nm | 1300-1324 | ≧1302,
≤1322 | ---- | ---- | ≧ 1295,
≤1320 |
| Zero dispresion slope | nm | ≤0.092 | ≤0.091 | ---- | ---- | ---- |
| PMD Maximum Individual Fibr | | ≤0.2 | ≤0.2 | ---- | ---- | ≤0.11 |
| PMD Design Link Value | Ps(nm2*k
m) | ≤0.12 | ≤0.08 | ---- | ---- | ---- |
| Fibre cutoff wavelength λc | nm | ≧ 1180,
≤1330 | ≧1180,
≤1330 | ---- | ---- | ---- |
Cable sutoff
wavelength λcc | nm | ≤1260 | ≤1260 | ---- | ---- | ---- |
| MFD | 1310nm | um | 9.2+/-0.4 | 9.2+/-0.4 | ---- | ---- | ---- |
| 1550nm | um | 10.4+/-0.8 | 10.4+/-0.8 | ---- | ---- | ---- |
Numerical
Aperture(NA) | | ---- | ---- | 0.200+/
-0.015 | 0.275+/-0.
015 | 0.200+/-0
.015 |
Step(mean of bidirectional
measurement) | dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 |
Irregularities over fiber
length and point | dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 |
| | | | | | | | |
| Dicontinuity |
Difference backscatter
coefficient | dB/km | ≤0.05 | ≤0.03 | ≤0.08 | ≤0.10 | ≤0.08 |
| Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | | | |
| Core dimater | um | | | 50+/-1.0 | 62.5+/-2.5 | 50+/-1.0 |
| Cladding diameter | um | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
| Coating diameter | um | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 |
Coating/chaffinch
concentrically error | um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 |
| Core/cladding conentricity error | um | ≤0.6 | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 |
| Curl(radius) | um | ≤4 | ≤4 | ---- | ---- | ---- |
Package
| 1.Packing material: Wooden drum |
| 2.Packing length: standard length of cable shall be 2 km. Other cable length is also availabler |
| if required by custome |
