    1550nm OTDR FBG Fiber Optic Reflector SC/APC Male Female For PON Networks

    Description of 1550nm OTDR FBG fiber optic reflector SC/APC

    The FBG reflector is a standard SC/LC type connector structure, which package a special FBG in the ceramic ferrule.
    The fiber bragg grating reflector is a low-cost specific band reflector mounted on the optical network unit (ONU) side. It can reflect light pulses (1650 +/- 5 nm) from the OTDR on the fiber line terminal (OLT) side nearly 100%, while the working bands of the passive optical network (PON) are transmitted normally. The OTDR can determine whether the fiber line is normal by detecting the signal reflected by the fiber grating reflector. When the reflected signal is lower than the normal value, the line loss is too large; when the reflection value is 0, the optical fiber line is broken.Therefore, we can maintain the fiber line in time by the real-time monitoring of the fiber line.


    Application Of Optical Reflector

    PON network

    OTDR testing
    Central Office Terminal
    FTTX


    Features Of Fiber Optic Reflector

    Low insertion loss and reflectivity at traffic wavelength
    High reflectivity at test wavelength
    Easy to install
    Exceptional reliability and environmental stability
    Compatible with GPON, EPON, GEPON


    Specification

    ParameterUnitValue
    Pass band wavelength rangenm1260~1360 & 1460~1520 & 1575~1670
    Reflect band wavelength rangenm1545~1555
    IL(1260nm-1360nm)dB≤1.5
    IL(1460nm-1520nm)dB≤2
    IL(1545nm-1555nm)dB≥20
    RL(1260nm-1360nm)dB≥35
    RL(1460nm-1520nm)dB≥30
    RL(1575nm-1670nm)dB≥30
    RL(1545nm-1555nm)dB≤1
    PDLdB≤0.4
    Ripple(REFLECT BAND)dB≤0.6
    TDLdB≤0.5
    Operation Temperature-20~+65
    Relative Humidity%RH5~95
    ConnectorSC/APC or LC/APC Attenuator Type

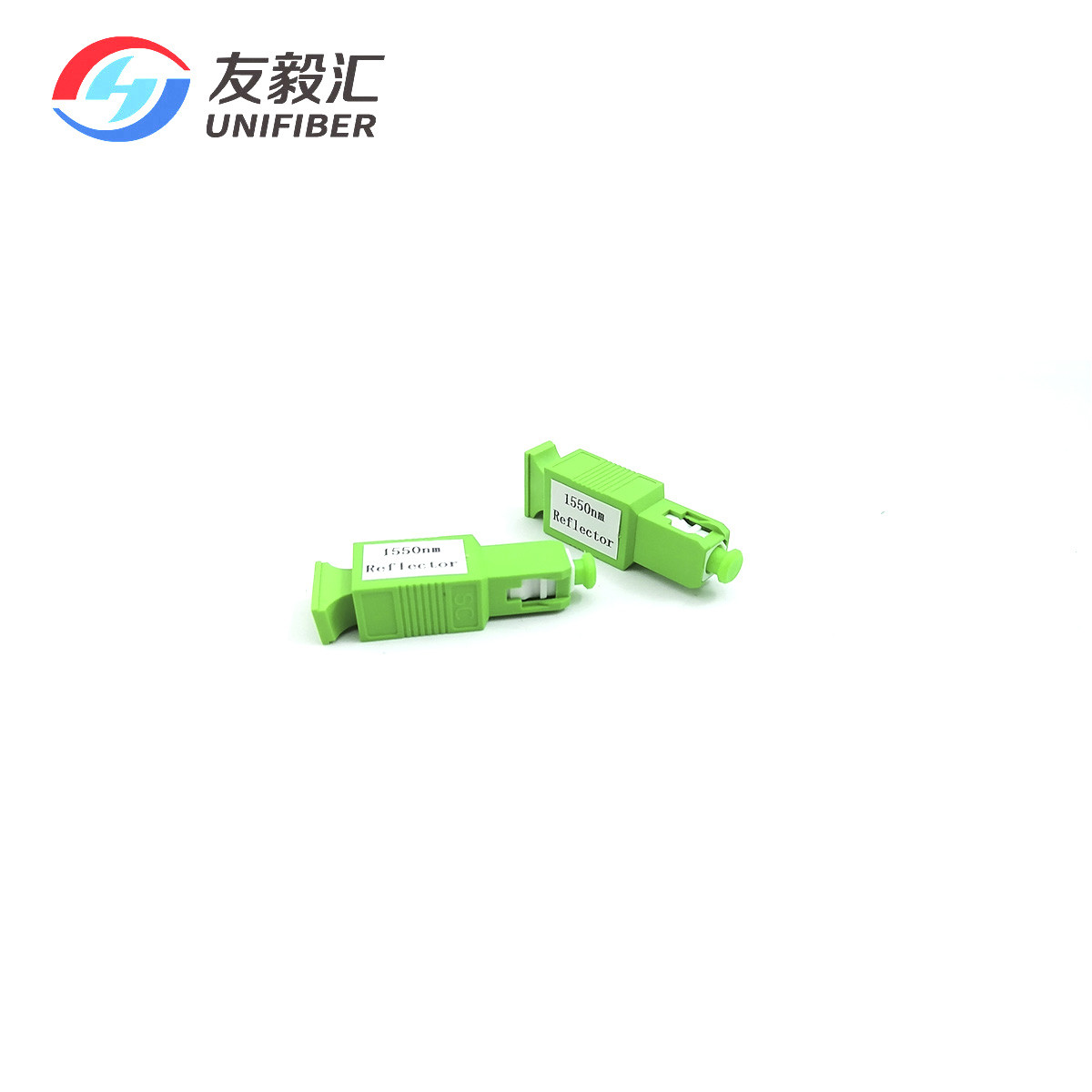

    Picture of fiber bragg grating reflector

    1550nm OTDR FBG Fiber Optic Reflector SC/APC Male Female For PON Networks
