    STW Waterproof Universal Connector For Huawei FAST Furukawa Slim And Corning Optitap

    Ask Lasest Price
    Brand Name : Unifiber or OEM
    Model Number : STW Waterproof Universal Connector
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500pcs/day
    Delivery Time : 3~5 days
    • Product Details
    • Company Profile

    STW Waterproof Universal Connector For Huawei FAST Furukawa Slim And Corning Optitap

    STW cable assemblies provide the most cost-effective method of deploying optical fiber in outside plant distribution networks at speeds significantly fast than traditional field installations.The assemblies guarantee an easy, one-step connection system with the combined push-pull insertion and nut-style mechanical latch.


    Feasture

    STW cable assembly provides quick installation

    It has good performance on mating with Optitap and Mini(SC/APC) adapter.

    The drop cable can be amored or non-amored

    The Unique design of the housing allows it to be provided on a factory terminated and tested cable assembly or retrofitted to existing outdoor cable assemblies.


    Application

    STW connector Applications include connection to Remote Radio Units (RRU/RRH) FTTA

    FTTH equipment and other outdoor systems.


    Item
    STW Waterproof Universal Connector for Huawei FAST,Furukawa Slim and Corning Optitap
    Insertion loss
    ≤0.3dB
    Return loss
    Min. 60 dB
    Repeatably
    ≤0.2dB
    Interchangeability
    ≤0.2dB
    Durability
    1000 cycles
    Operating Temperature
    -40 ℃ ~ +85 ℃
    Storage Temperature
    -40 ℃ ~ +85 ℃
    Installation Temperature
    -40 ℃ ~ +85 ℃
    Waterproofing grade
    IP68 (1M,1hour)
    Cable diameter range
    ∅2.0mm - ∅5.0 mm;2x3mm Butterfly; 2x5mm Butterfly;4x7mm flat
    Housing material
    PC
    Boot material
    TPV

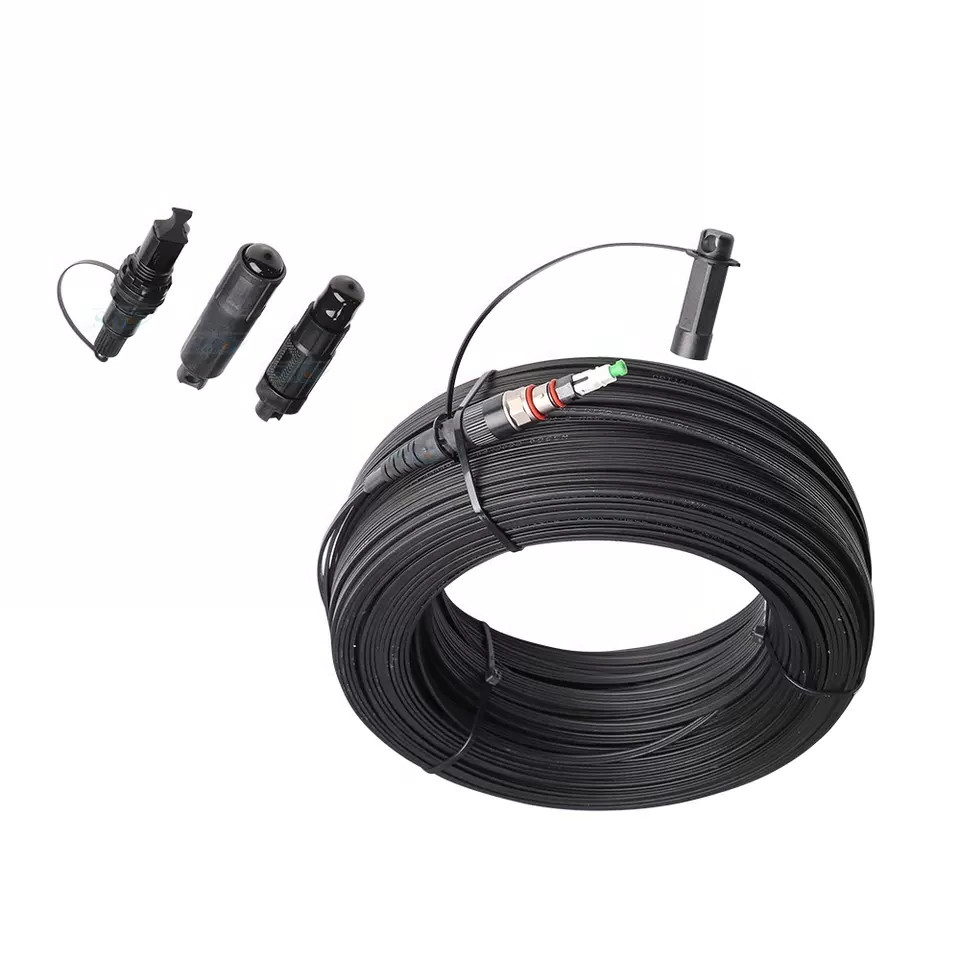

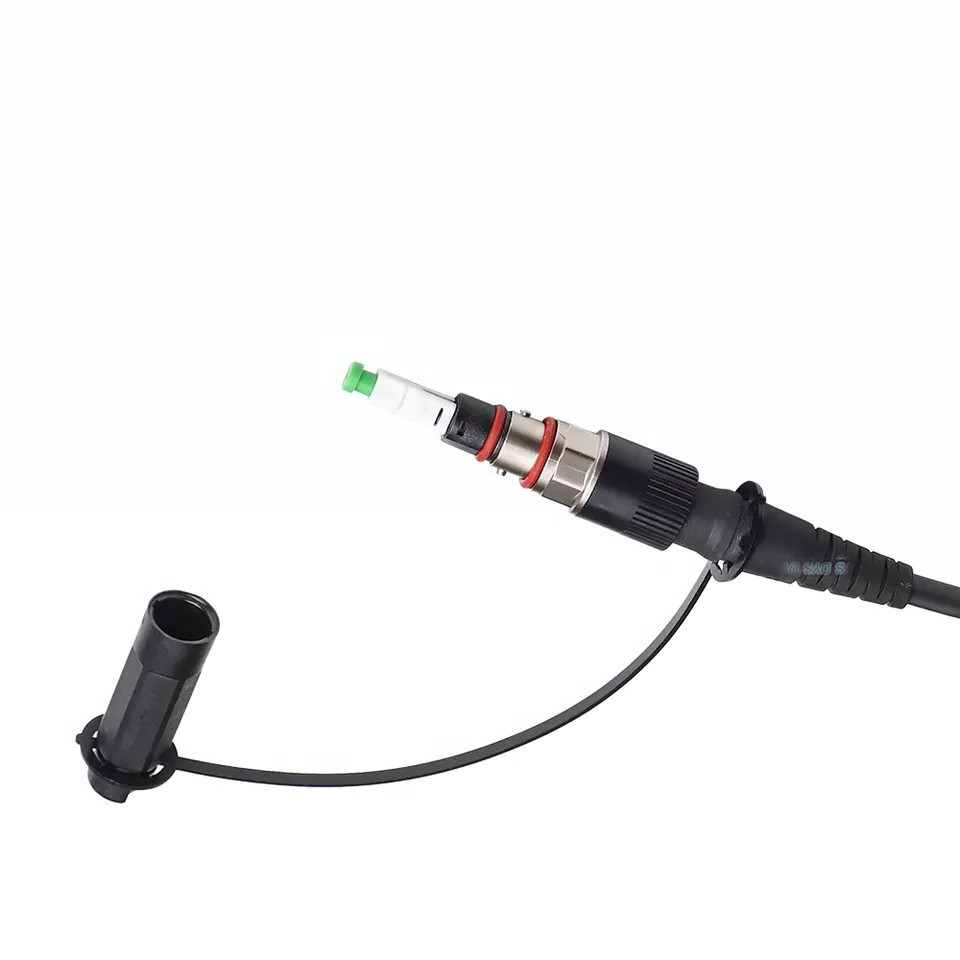

    Picture of STW Waterproof Universal Connector for Huawei FAST,Furukawa Slim and Corning Optitap for FTTH drop cable

    STW Waterproof Universal Connector For Huawei FAST Furukawa Slim And Corning OptitapSTW Waterproof Universal Connector For Huawei FAST Furukawa Slim And Corning Optitap
