    2 4 7 Way Hdpe Microduct Pipe Direct Buried For Optic Fiber Air Blowing Cable

    Ask Lasest Price
    Brand Name : Unifiber or OEM
    Model Number : HDPE micro duct
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 50km/day
    Delivery Time : 3~5 days
    • Product Details
    • Company Profile

    2 4 7 Way Hdpe Microduct Pipe Direct Buried For Optic Fiber Air Blowing Cable

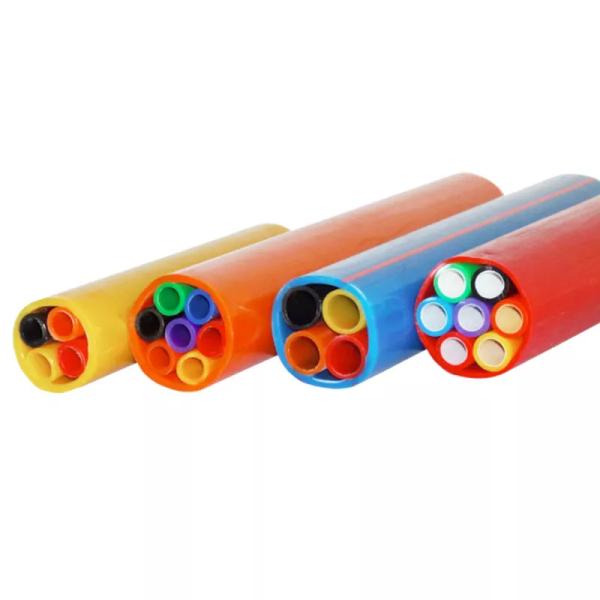

    Microduct assemblies are available for several installation environments such as direct buried installation, into existing pipes or for indoor installation. Microducts are characterised by heavy wall microducts and a relatively thin outer sheath. The thickness of each inner tube allows individual tubes to be used direct bury solution. The microducts themselves are rugged enough to protect the fiber cables inside. Micro ducts are made of HDPE and have a low friction inner surface for best blowing performance.


    Features

    Permanant solid silicon lubricant layer in the inner wall.
    Longitudinal ribbed inner wall of microduct to further reduce the friction coefficient of duct so as to be beneficial to cable blowing.
    Maximal accommodation is 288C micro cable.
    Can be placed into the existing pipe system to fulfill the pipe hole expansion.
    Reduce the construction cost, and shorten the construction period.


    Micro Structure

    The micro duct is manufactured from HDPE, extruded from 100% virgin material. The color shall be grey (central duct), red, green, blue, yellow, orange, grown or other customized.
    O.D
    I.D
    Wall Thickness
    Weight
    Drum Size
    7
    3.5
    1.75
    0.266
    2000x1100
    7
    4
    1.5
    0.247
    2000x1100
    10
    6
    2
    0.430
    2350x1100
    12
    8
    2
    0.531
    2200x1100
    14
    10
    2
    0.631
    2200x1100
    16
    12
    2
    0.736
    2200x1100
    20
    16
    2
    0.929
    2350x1100
