    4 Ports Corning Optitap Mst Box Dielectric Flat Drop 100ft Tail

    Ask Lasest Price
    Brand Name : Unifiber or OEM
    Model Number : 4 ports Corning Optitap MST Multiport Service Terminal Box
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500pcs/day
    Delivery Time : 3~5 days
    • Product Details
    • Company Profile

    4 Ports Corning Optitap Mst Box Dielectric Flat Drop 100ft Tail

    4 ports corning optitap mst multiport service terminal box dielectric flat drop 100ft tail

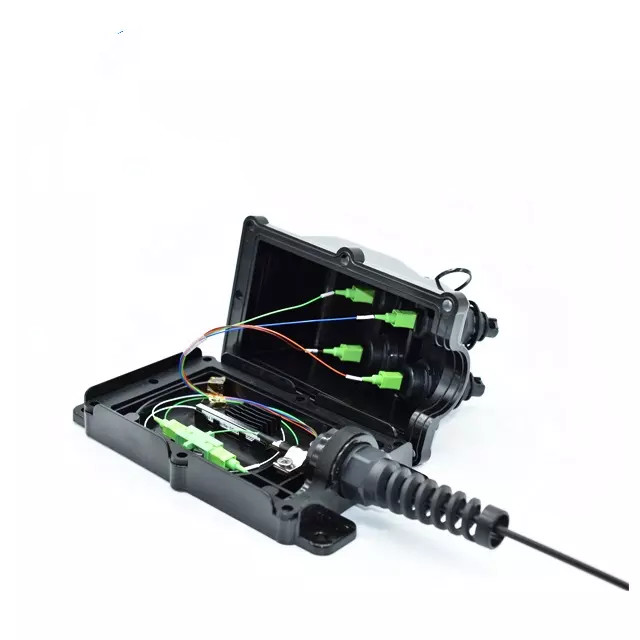

    4 ports Corning Optitap MST Multiport Service Terminal Box is a factory terminated OSP fiber terminal designed for quick and easy subscriber connections, it with Hardened Optitap Drop Cable come with rugged Indoor/Outdoor Fiber Assemblies, Multiport Service Terminals incorporate hardened connector technology that is designed to withstand the rugged outside plant environment Hardened connectors are factory-terminated and environmentally sealed for use in optical drop cable deployments Plug and play adapter ports ensure rapid cable installment in the outside plant access section of the network


    Features:

    No splicing required in the terminal
    No terminal re-entry required
    Available with hardened full-size optical or miniaturized DLX connectors with up to 12 ports
    1:2, 1:4, or 1:8 splitter options
    Dielectric, toneable, or armored input stub cables
    Pole, pedestal, handhole, or strand mounting options
    Ships with universal mounting bracket
    User-friendly packaging allows foreasy un-spooling
    Factory-sealed enclosure for environmental protection


    Application:

    Quick and easy subscriber connections
    Factory sealed for deployment in up to 10 feet of water head
    Re-enterable for connector repair
    Pole and swing arm mountable
    Low profile design
    Flat drop, ADSS, pushable/air-jettable MicroDrop, or armored drop cable stubs
    OSP Networks
    FTTx Networks


    ItemsSpecifications
    Dimensions LxWxH365x137x90mm(Without cover) 375x142x120mm(With cover)
    Ingress protectionIP67
    Temperature range-40 to + 80°C
    Cable strength memberArmoured or Non-armoured
    Cable typeHybrid or non-hybrid
    Round cable OD5.0mm to 14mm
    Flat cable dimension4.6x8.9mm
    Cable jacket materialLSZH, PEorTPU
    Bending Radius20D
    Cable crush resistance200N/cm long term
    Fire protection ratingUL94-V0
    Number of PLC1 to 2pcs
    Number of fusion protection sleeve1 to 24pcs

    4 Ports Corning Optitap Mst Box Dielectric Flat Drop 100ft Tail4 Ports Corning Optitap Mst Box Dielectric Flat Drop 100ft Tail
