    40g Qsfp-4x10g Sfp Copper Dac Cable Twinax Passive Direct Attach 5m 30awg

    Ask Lasest Price
    Brand Name : Unifiber or OEM
    Model Number : 40G QSFP-4xSFP DAC Cable
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500pcs/day
    Delivery Time : 3~5 days
    • Product Details
    • Company Profile

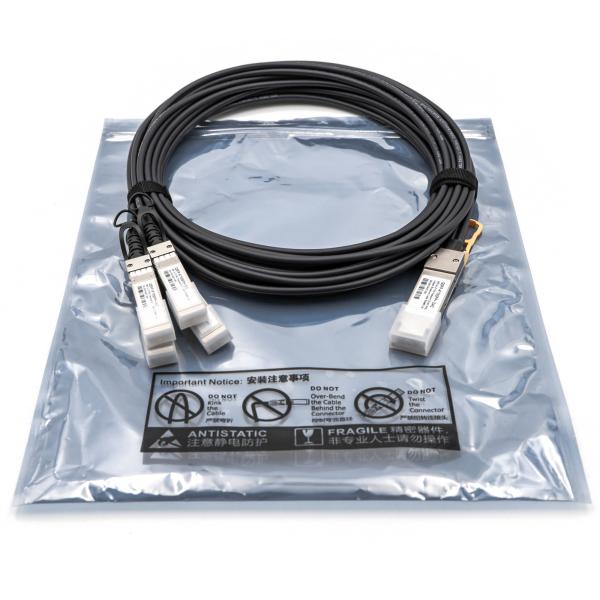

    40g Qsfp-4x10g Sfp Copper Dac Cable Twinax Passive Direct Attach 5m 30awg

    High Speed 40G QSFP+ to 4×10G SFP+ Direct Attach Cable copper cable assemblies are a low cost alternative for short reach 4X applications. They are designed to be fully compatible in form factor and optical/electrical connections according to the QSFP Multi-Source Agreement.QSFP+ connectors provide four channels of data in one pluggable interface. Each channel is capable of transferring data at 10Gbps and supports a total of aggregate 40Gbps as specified for QSFP+. These interconnects have three times the density of SFP+ interconnects (MSA) and have been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.


    Features
    * 4-Channel Full Passive Copper Cable Transceiver
    * QSFP+ conforms to the Small Form Factor SFF-8436and SFF-8431
    * Support for multi-gigabit data rates up to 10.5Gbps
    * Data rates backward compatible to 1Gbps
    * Maximum aggregate data rate: 40 Gbps (4 x 10Gbps)
    * Hot-DensityQSFP 38-PIN footprint
    * I/O Connector designed for high speed differential signal applications
    * Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance
    * Compatible with industry standard SFP cages +Switches
    * Temperature Range: 0~ 70 °C
    * RoHS-6 Compliant
    Compliant
    Compliant with electrical standards IEEE 802.3ba
    Compliant with mechanical standard SFF-8436 and SFF-8431
    Compliant with EEPROM standard SFF-8472
    RoHS Compliant


    Application
    10G/40G Ethernet
    InfiniBand, Fiber Channel 4G/8G/10G
    Sonet Multiplatform support
    High Performance Computing Clusters
    High End Servers
    Metro Network Switch/Cross Connect


    Compatibility brand

    Cisco,HP,Juniper,Finisar,D-Link,Alcatel,etc

    Application

    Telecommunication

    Power Supply

    +3.3V

    Operating Temperature

    0 ℃ to 70 ℃

    Wire Gauge

    30AWG

    Conductor Material

    Copper

    Data Rate

    40G
