144 Core Wall Mounting Dome Fiber Splice Closure Mechanical Seal 1 Uncut 4 Branch Ports

    Buy cheap 144 Core Wall Mounting Dome Fiber Splice Closure Mechanical Seal 1 Uncut 4 Branch Ports from wholesalers

    Buy cheap 144 Core Wall Mounting Dome Fiber Splice Closure Mechanical Seal 1 Uncut 4 Branch Ports from wholesalers
    • Buy cheap 144 Core Wall Mounting Dome Fiber Splice Closure Mechanical Seal 1 Uncut 4 Branch Ports from wholesalers
    • Buy cheap 144 Core Wall Mounting Dome Fiber Splice Closure Mechanical Seal 1 Uncut 4 Branch Ports from wholesalers
    • Buy cheap 144 Core Wall Mounting Dome Fiber Splice Closure Mechanical Seal 1 Uncut 4 Branch Ports from wholesalers

    144 Core Wall Mounting Dome Fiber Splice Closure Mechanical Seal 1 Uncut 4 Branch Ports

    Ask Lasest Price
    Brand Name : Unifiber or OEM
    Model Number : GPJ09-5607
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 500pcs/day
    Delivery Time : 3~5 days
    • Product Details
    • Company Profile

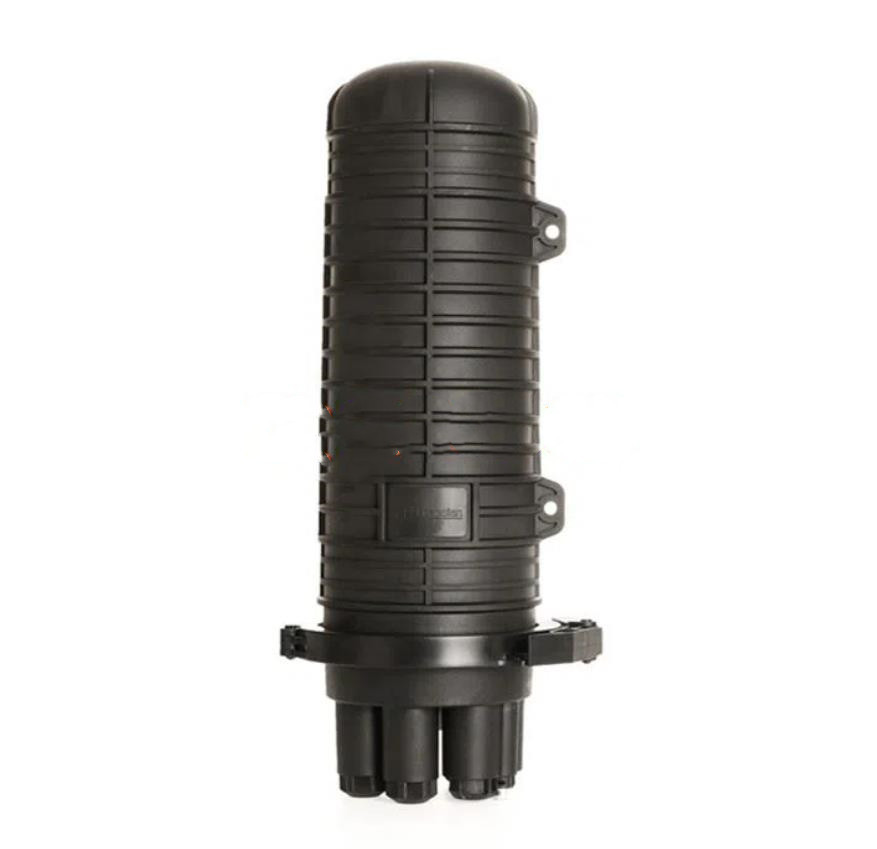

    144 Core Wall Mounting Dome Fiber Splice Closure Mechanical Seal 1 Uncut 4 Branch Ports

    GPJ09-5607 dome closure features the tray-buffer design which protects the fibers during the process of splice fusion. The sealing type of both its housing and involved cables are mechanical. The cable entries include 1 uncut port and 4 branch ports, suitable for Ф8~18mm diameter range. 4 splice trays can be installed in this fiber closure, and the maximum capacity is 144F (single) and 432 (ribbon). Many sorts of sealing ring are available for different types of cable sealing.


    Model No.GPJ09-5607
    StyleDome/ Vertical
    Dimensions (mm)525 × Φ225
    MaterialPP+GF
    Sealing TypeMechanical Seal
    Protection GradeIP68
    Cable PortsUncutOval1Φ8 - Φ18 mm
    BranchRound4Φ8 - Φ18 mm
    Fiber Splice CapacitySingle144
    Ribbon432
    Tray CapacitySingle36
    Ribbon6
    Tray Count4
    Weight (kg)3.8 - 4.3
    ApplicationAerial/ Wall Mounting/ Direct Burial
    Packing TypeInner Carton540×245×210 (1 PCS)
    Outer Carton555×510×675 (6 PCS)
