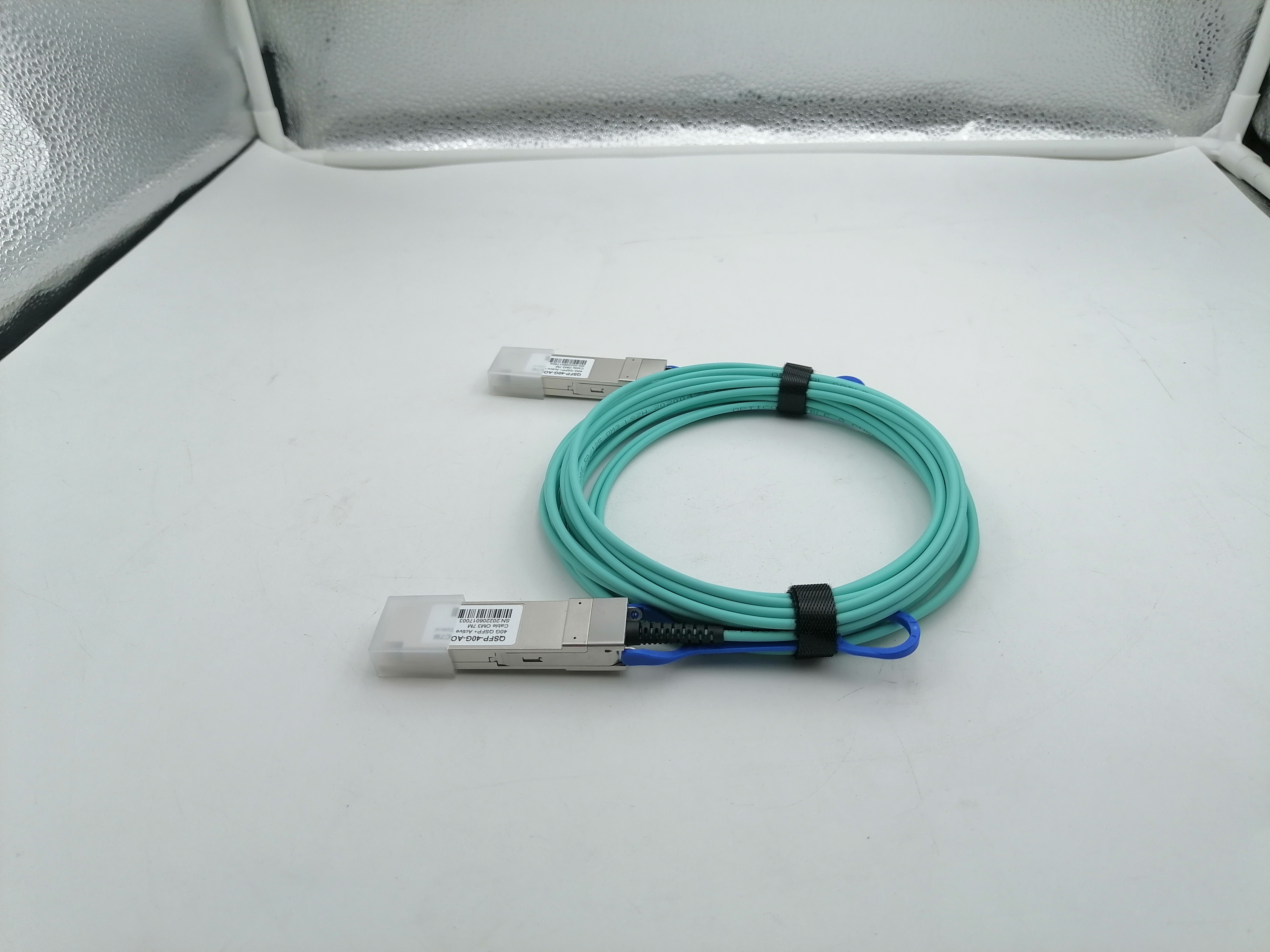

QSFP to QSFP Active Optical Cables are a high performance, low power consumption, long reach interconnect solution supporting InfiniBand QDR/DDR/SDR,1.25G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba.This QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s. And it is one kind of parallel transceiver which provides increased port density and total system cost savings.UNIFIBER 40G QSFP+ AOC active optic cables are designed for 40G Ethernet links reach up to 300m (OM3) or 400m (OM4) over Multi-Mode Fiber (MMF).

Features

Support 40GBASE-SR4/EDR application

Compliant to QSFP28 Electrical MSA SFF-8636

Multi rate of up to 10.3125Gbps

Transmission distance up to 300m

+3.3V single power supply

Low power consumption

Operating temp Commercial: 0°C to +70 °C

RoHS compliant

UL certification cables (optional)

Applications

40GBASE-SR4 at 10.3125Gbps per lane

InfiniBand QDR

Other optical links

Specification:
