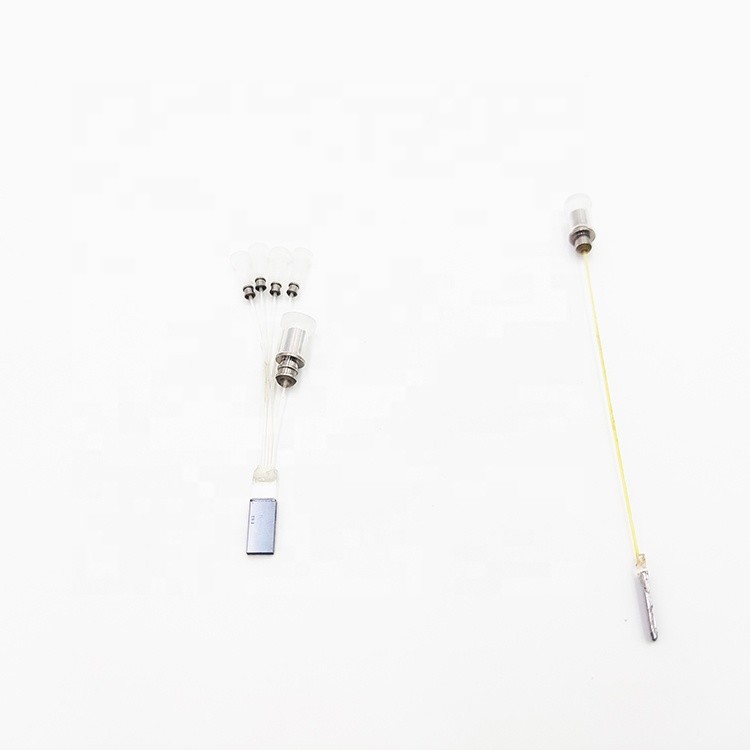

4ch/ 5ch FA sub-assembly with LC stubs and LC receptacle
Unifiber's 4ch/ 5ch FA subassembly with LC stubs and LC receptacle is ideal for AWG alignment. High FA pitch accuracy and polishing angle can make alignment easy. The product is GR 1435 compliant.
Features
Compact size
High core pitch accuracy
High fiber length accuracy
High Reliability
Applications
PLC AWG alignment
CFP/QSFP+/CFP4/QSFP28
Testing instruments
Specification
Parameters | Unit | FA sub assembly |
Operating Wavelength | nm | 1310 |
Channels | - | 4 or 5 |
Insertion Loss | dB | <0.25 |
Polishing angle | - | 0 deg or 8 deg |
Fiber type | - | G 657 A1, A2, B3 |
Fiber length accuracy | mm | 0.5 |
Operating Temperature | ℃ | -5 to 70 |
Storage Temperature | ℃ | -40 to 85 |
![]() |
