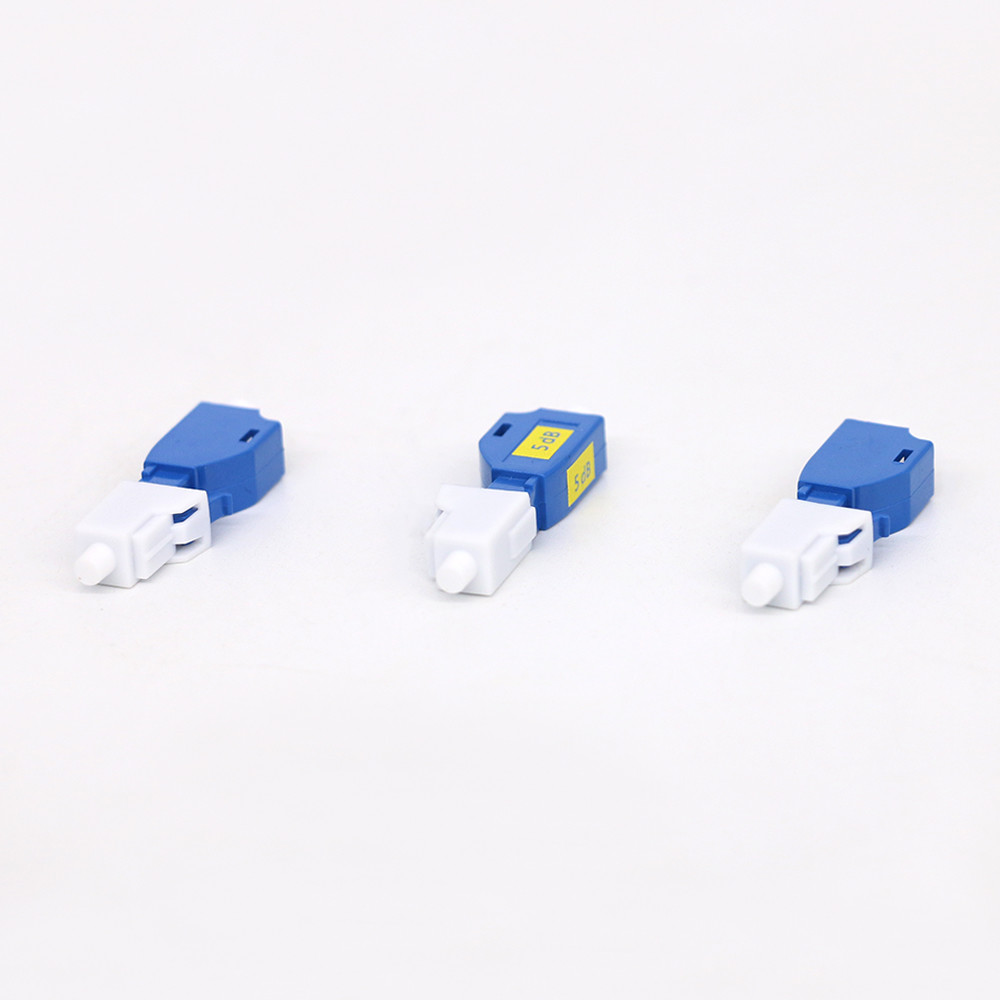

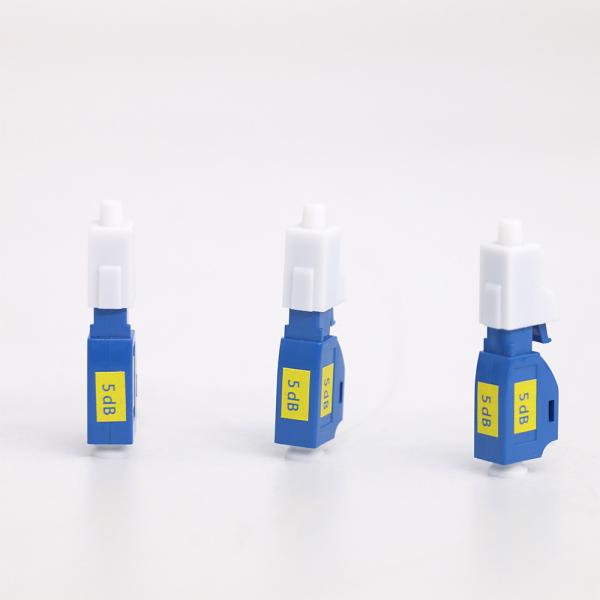

    Single Mode Fiber Optic Attenuator LC UPC Male Female Fixed 1db 3db 5db

    Ask Lasest Price
    Brand Name : Unifiber or OEM
    Model Number : LC UPC male female fixed fiber optic attenuator
    Certification : ROHS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1000pcs/day
    Delivery Time : 3~5 days
    • Product Details
    • Company Profile

    Single Mode Fiber Optic Attenuator LC UPC Male Female Fixed 1db 3db 5db

    Fiber optic Attenuators are used in applications where a pre-determined amount of light loss is specified.
    We offer LC, FC, SC, ST, MU fixed attenuator with different attenuation level, from 1dB to 30dB.


    Key Features
    · Bellcore Compliant
    · Wavelength Independent
    · Durability & Simple and Reliable Structure


    Specifications
    · Operating Wavelength: SM: 1310nm, 1550nm
    · MM: 850nm, 1300nm
    · Return loss: More than 55dB (UPC)
    · Attenuation Accuracy: +/-0.5 (1~10) +/-1.0(11~30)
    · Polarization Dependent Loss: Less than 0.2dB
    · Max. Optical Input Power: 200mW
    · Operating Temp Range: -40~80°C


    Applications
    · l Telecommunication Networks
    · l Local Area Network
    · l FTTH and FTTx
    · l Fiber Optic Sensors
    · l Test & measurement
    · l DWDM applications


    ptical Performance
    M-F Plug Type
    F-F Adaptor Type
    Testing Wavelength(nm)
    SM: 1310nm/1550nm
    1310nm
    MM: 850nm/1300nm
    Attenuation Accuracy(dB)
    1-9dB; 0.5dB; 10-30dB; 10% of Attenuation Value
    Return Loss(dB)
    ≥50dB (PC)
    ≥50dB (PC)
    ≥60dB (APC)
    ≥60dB (APC)
    Input Power (Max.) (mW)
    300
    Durability(dB)
    <0.2dB Typical, 1000 Matings
    Operating Temperature(°C)
    -40~+80
    Storage Temperature(°C)
    -40~+85

    Single Mode Fiber Optic Attenuator LC UPC Male Female Fixed 1db 3db 5db
